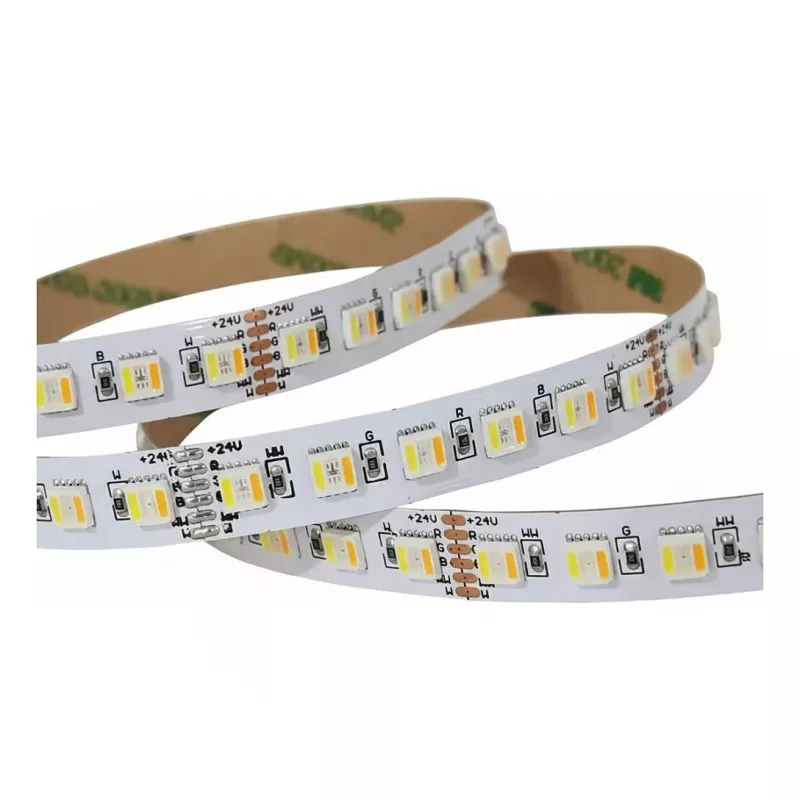

SYNERGY21 tira LED Flex 5050 - 60 RGB-W Pixel DC24V UCS2904 IP20

The SYNERGY21 LED Flex Strip 5050 is a high-performance, individually addressable RGB-W pixel strip designed for creative lighting projects. Featuring 60 SMD 5050 LEDs per meter with integrated UCS2904 controller IC, this strip delivers vibrant colors and smooth animations. Operating at DC 24V, it offers low voltage safety and consistent brightness over long runs. The IP20 rating makes it suitable for indoor use only.

Advantages

Individually addressable pixels allow for intricate lighting effects and animations. The RGB-W configuration provides a dedicated white channel for true white light, enhancing color mixing. Self-adhesive backing simplifies installation on clean surfaces. Cuttable every LED (approx. 16.67mm) for custom lengths.

Suitable for

• Architectural accent lighting
• Entertainment and stage lighting
• Retail display lighting
• DIY and hobbyist projects
• Signage and channel letters

Key specifications

• LED Chip: SMD 5050
• Color: RGB-W (Red, Green, Blue, White)
• LED Density: 60 LEDs/meter
• Operating Voltage: DC 24V
• Controller IC: UCS2904
• Addressability: Individually Addressable
• IP Rating: IP20
• Max Power Consumption: 14.4W/meter
• Beam Angle: 120°
• Cuttable: Every LED (16.67mm)
• Backing: Self-adhesive (3M tape)
• Dimmable: Yes (via external controller)
• Control Protocol: Single-wire data (SPI-like)
• Channels per Pixel: 4 (R,G,B,W)
• Grayscale: 256 per channel
• Lifespan: >50,000 hours
• Operating Temperature: -20°C to +50°C
• PCB Color: White

Recommendations

For optimal performance, use with a compatible DC 24V power supply and a suitable LED controller that supports UCS2904 protocol. Ensure proper heat dissipation if installed in enclosed spaces. Not suitable for outdoor or damp locations.
