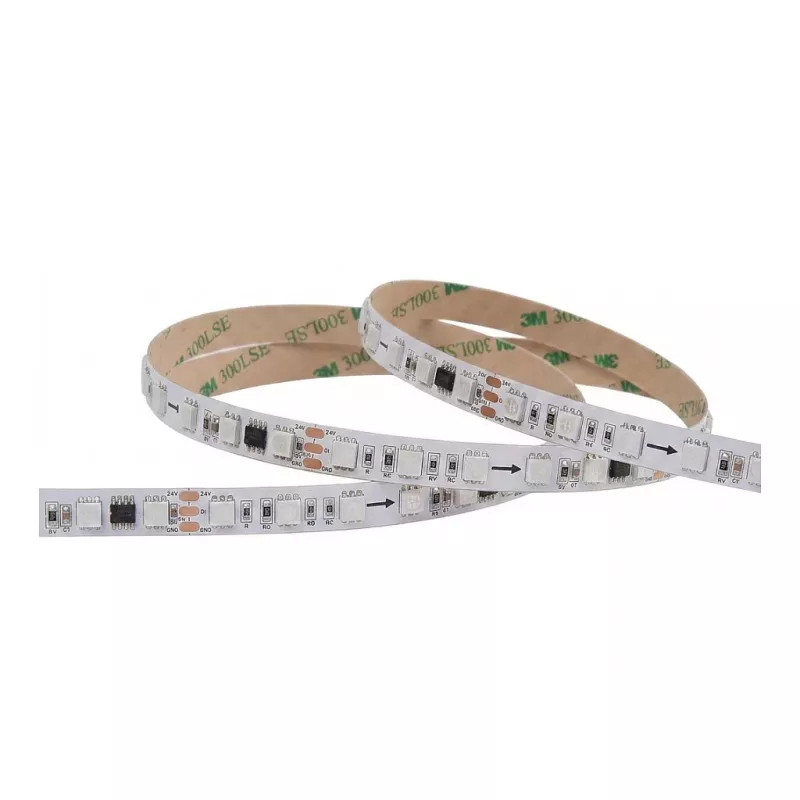

SYNERGY21 tira LED Flex 5050 - 72 RGB Pixel DC24V SM16703 IP20

The SYNERGY21 LED Flex Strip 5050 is a high-performance, individually addressable RGB LED strip designed for dynamic lighting effects. Featuring 72 SMD 5050 RGB LEDs per meter with the SM16703 controller IC, this strip operates at DC 24V for consistent brightness and efficiency. With an IP20 rating, it is ideal for indoor use in dry environments. The flexible PCB with 3M adhesive backing allows easy installation on various surfaces.

Advantages

Individually addressable pixels enable stunning animations and color patterns. The 24V DC operation reduces voltage drop over long runs, ensuring uniform brightness. Cuttable every ~13.8 cm (1 pixel segment) for custom lengths. High flexibility allows bending around corners and curves.

Suitable for

• Architectural accent lighting
• Entertainment and stage lighting
• Retail display illumination
• DIY projects and custom lighting installations

Key specifications

• LED Chip Type: SMD 5050
• Color Output: RGB (Full Color)
• Pixel Density: 72 Pixels/meter
• Controller IC: SM16703 (Individually Addressable)
• Operating Voltage: DC 24V
• IP Rating: IP20 (Non-waterproof, Indoor Use)
• Dimmability: Yes (Via compatible controller)
• Beam Angle: 120°
• Cuttable Segments: Yes, typically every ~13.8 cm (1 pixel segment)
• Adhesive Backing: Yes, 3M Self-Adhesive Tape
• Power Consumption: Approx. 17.28 W/meter
• Control Protocol: SPI-like (Compatible with SM16703 IC)
• Operating Temperature: -20°C to +50°C
• Lifespan: Up to 50,000 hours
• PCB Color: White
• Connectivity: 3-pin JST-SM connector (for Data, V+, GND)
• Certifications: CE, RoHS Compliant
• Flexibility: Highly Flexible PCB Strip

Recommendations

Use with a compatible 24V power supply and an SM16703 controller for best results. Ensure proper heat dissipation when mounting on flammable surfaces. Not suitable for outdoor or wet locations.
