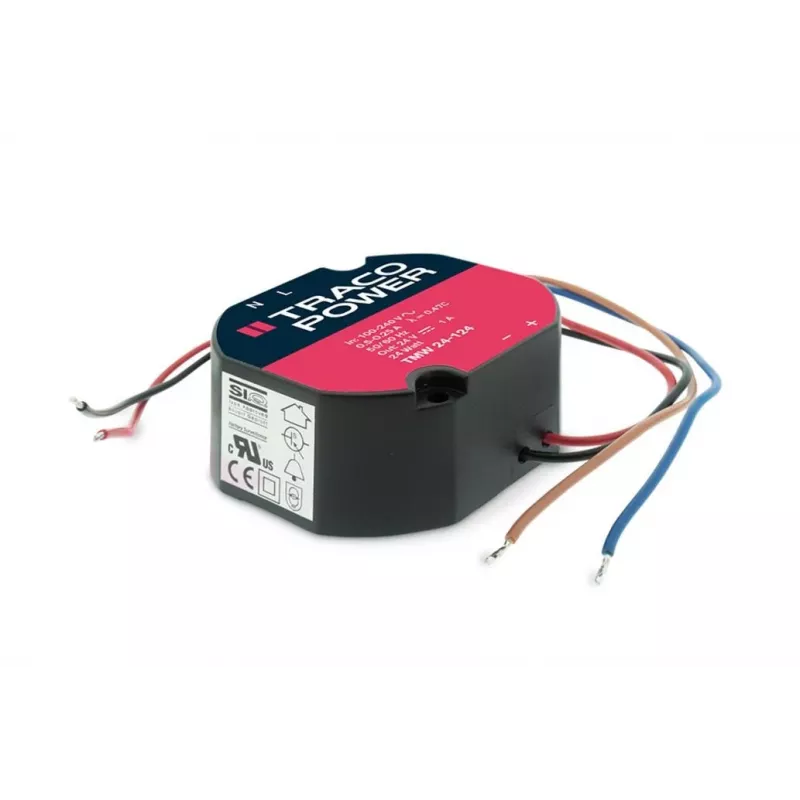

SYNERGY21 TMW 24-124 Fuente de alimentación LED 24V 24W para cajas de empotrar

24V constant voltage LED power supply with 24W output, engineered for installation in standard flush-mounted boxes.

Overview

The SYNERGY21 TMW 24-124 is a compact LED driver delivering 24V DC at 1A, suitable for powering LED lighting in residential and commercial settings. Designed for flush-mounted installation, it fits into common wall boxes, making it ideal for under-cabinet lights, cove lighting, and other space-constrained applications.

What stands out

• 24W output power with 24V constant voltage

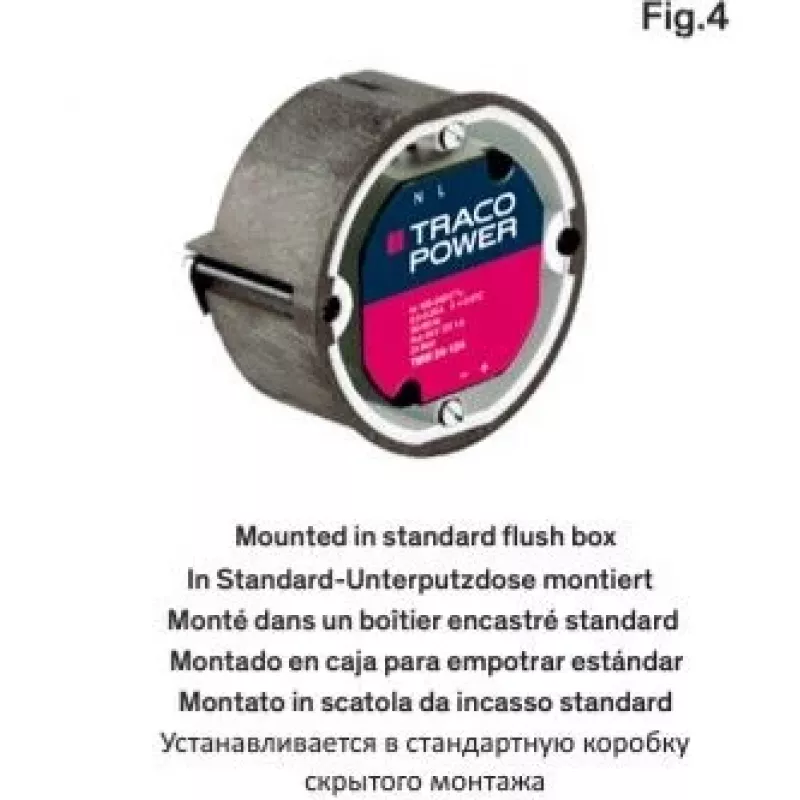

• Flush-mounted design for standard wall boxes
• Plastic housing with IP20 rating for indoor use
• Protection against short circuit, overload, overvoltage, and overtemperature
• Wide operating temperature range from -20°C to +45°C

Technical details

• Input voltage: 200-240V AC, 50/60 Hz
• Output voltage: 24V DC
• Output current: 1A
• Efficiency: >85%
• Power factor: >0.5
• Housing material: Plastic
• IP rating: IP20
• Non-dimmable

Our verdict

A reliable and compact power supply for flush-mounted LED installations, delivering stable 24V output with essential protections.
