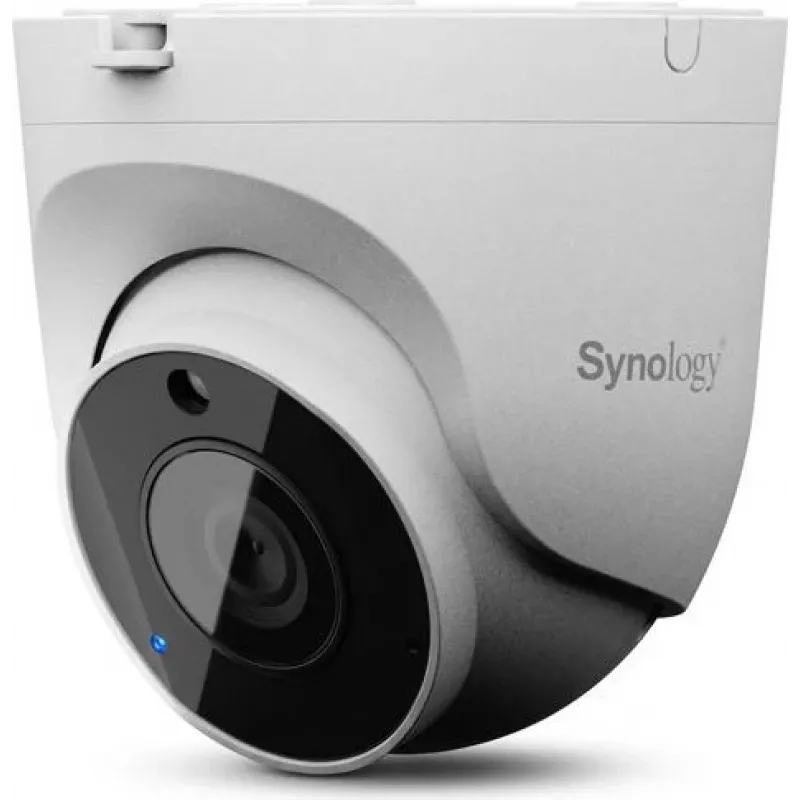

Synology TC510 cámara de red turret exterior AI 5 MP, IP67/IK10, 2,8mm gran angular, visión nocturna 30m, PoE

The Synology TC510 is a 5 MP wide-angle AI turret network camera built for both indoor and outdoor surveillance. A 1/2.7" image sensor paired with a fixed 2.8 mm F1.8 lens delivers a 110° horizontal wide-angle view at up to 2880 x 1620 resolution and 30 FPS, capturing large areas in crisp detail from a single compact device. On-board edge AI, high-power infrared night vision and an IP66/IP67 + IK10 weatherproof, vandal-resistant housing make it a complete, reliable monitoring solution that integrates with Synology Surveillance Station, BeeStation Plus or any third-party NVR/VMS via ONVIF.

Advantages

Edge AI analytics run directly on the camera, classifying people and vehicles to reduce false alarms and enabling people-and-vehicle counting, crowd and loitering detection, intrusion detection and auto-tracking without taxing the recording server. A large F1.8 aperture combined with multi-exposure HDR preserves detail in both bright and shadowed areas, while a high-power 850 nm IR LED provides clear night vision up to 30 metres. The fully dust-proof IP66/IP67 enclosure and IK10 impact rating let it operate from -30 °C to 50 °C, and a single PoE (IEEE 802.3af) cable carries both data and power. Failover recording to a microSD card keeps footage safe if the network connection drops, and the camera is NDAA and TAA compliant for sensitive deployments.

Suitable for

• Building entrances, driveways and outdoor perimeters
• Retail floors, offices, lobbies and reception areas
• Warehouses, car parks and open-plan spaces
• People- and vehicle-counting and customer-flow analysis

Key specifications

• Brand: Synology
• Model: TC510
• MPN: TC510
• EAN: 4711174726677
• Form factor: Turret
• Resolution: 5 MP, max. 2880 x 1620 @ 30 FPS
• Image sensor: 1/2.7" CMOS
• Lens: 2.8 mm fixed focal, F1.8
• Field of view: 110° horizontal / 56° vertical / 132° diagonal
• DORI: Detect 60 m / Observe 24 m / Recognise 12 m / Identify 6 m
• Night vision: high-power 850 nm IR LED, up to 30 m (0.001 lux)
• Image enhancement: multi-exposure HDR, 3D/2D digital noise reduction, auto IR-cut filter
• Shutter speed: 1/30 s to 1/16000 s
• Video compression: H.264, H.265; max. 30 FPS; max. bitrate 8192 kbps
• Audio: built-in microphone, G.711 audio compression
• Smart analytics: edge AI people & vehicle detection, crowd and loitering detection, people & vehicle counting, intrusion detection, auto-tracking, motion / audio / tampering detection
• Privacy masking: up to 5 zones (removable or permanently embedded)
• Storage: microSD card slot (exFAT) for failover edge recording; works with Synology NAS
• Network: 1x RJ-45 10/100 Mbps; ONVIF for third-party NVR/VMS
• Power: PoE IEEE 802.3af Type 1 Class 3 or 12 V DC; max. approx. 4.8 W
• Weatherproofing: IP66 & IP67 dust/water resistant, IK10 vandal-resistant
• Operating temperature: -30 °C to 50 °C (IR off) / -30 °C to 40 °C (IR on); humidity 5-95% non-condensing
• Dimensions: Ø97 x 88 mm; Weight: 387 g
• Compliance: NDAA & TAA compliant; 3-year warranty

How to use

Mount the camera on a wall or ceiling using the supplied screw pack, then connect it to a PoE switch or NVR with a single network cable (or use a 12 V/1A DC adapter, sold separately). Add the camera to Synology Surveillance Station, a BeeStation Plus via the BeeCamera app, or a third-party system over ONVIF, then configure resolution, HDR, day/night mode and IR through the web interface. Enable people and vehicle detection, counting and intrusion rules in the analytics menu, define detection zones and privacy masks, and insert a microSD card to activate failover edge recording.

Recommendations

Position the camera to make the most of its 110° wide-angle view so a single unit covers an entire entrance or open area, reducing the number of cameras needed. Insert a high-endurance microSD card for dependable failover recording, and keep the lens cover clean for the sharpest night-vision footage. Note that pairing with Synology Surveillance Station requires a Surveillance Device License, and that a PoE switch or 12 V DC adapter is not included.
