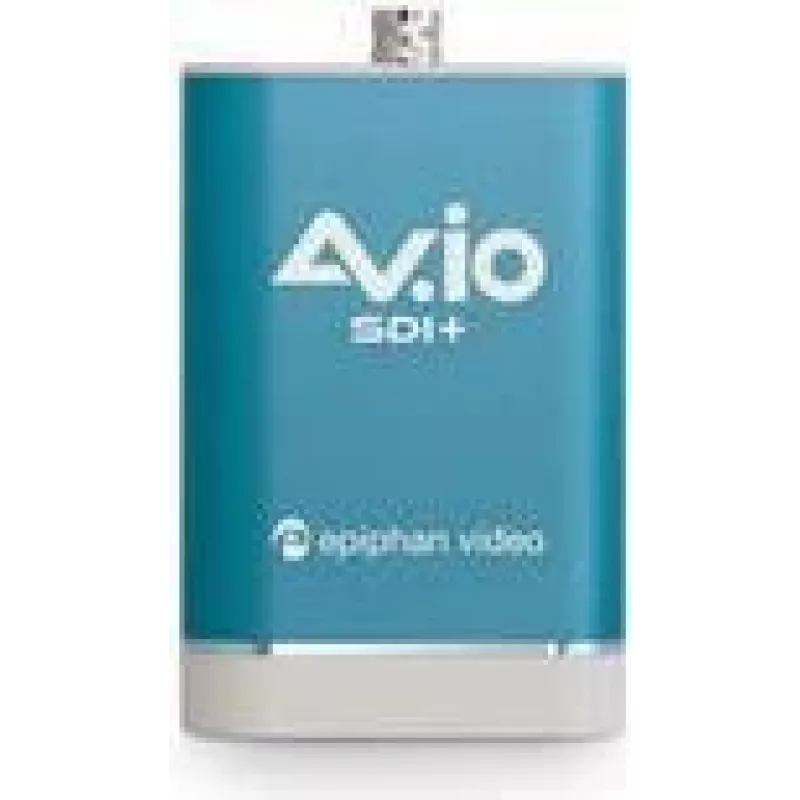

Tarjeta capturadora Epiphan AV IO SDI USB ESP1814 1080p60

The Epiphan AV IO SDI USB ESP1814 1080p60 is a capture card designed to receive SDI video signals and deliver them over USB at up to 1080p resolution and 60 frames per second. It accepts a professional SDI input and converts the incoming video to a USB video device stream, enabling live capture, streaming, and recording with compatible software and hardware on a host computer. The device is intended for integration with professional cameras, switchers, and other SDI-equipped video equipment, offering a straightforward connection method for production and presentation environments.

Advantages

The capture card provides reliable real-time conversion from SDI to USB with support for full HD 1080p at 60 fps, maintaining smooth motion and minimal latency. Its compatibility with common operating systems and streaming/recording applications simplifies workflow integration. The device is compact and connects via standard SDI and USB interfaces, facilitating quick setup and stable signal transmission in studio, lecture, or field environments.

Suitable for

Key specifications

How to use

Connect a compatible SDI video source to the unit’s SDI input using a coaxial SDI cable. Plug the USB connector into the host computer’s USB port; the device will enumerate as a USB video device allowing capture and streaming software to select it as an input. Configure the capture or streaming application to use the device, set the desired resolution and frame rate (up to 1080p60), and start capture or stream according to your production needs. Ensure your host system meets the software and USB bandwidth requirements for full HD60 capture.

Recommendations

For best results use high-quality SDI cables, verify frame rate and resolution settings in both camera and capture software, and test the signal chain before live events. Keep firmware and drivers updated and use a host computer with sufficient USB bandwidth and processing capability to avoid dropped frames during 1080p60 capture.
