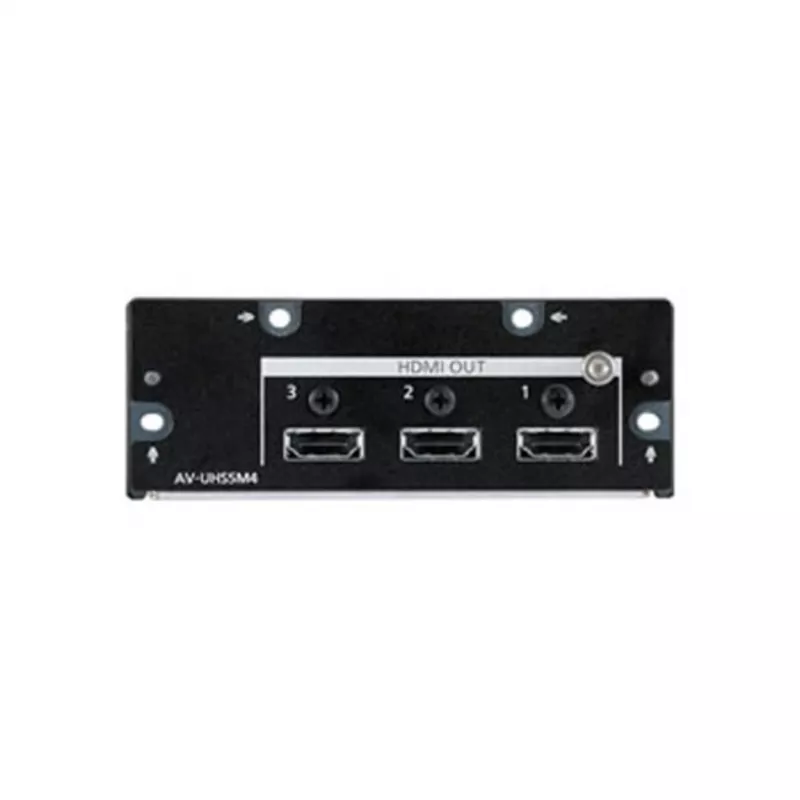

Tarjeta de expansión Panasonic AV-UHS5M4G con 3 salidas HDMI 2.0 para mezclador en directo AV-UHS500

The Panasonic AV-UHS5M4G is a high-performance output expansion card designed specifically for the Panasonic AV-UHS500 Live Switcher. It adds three HDMI 2.0 outputs, enabling seamless integration with multiple displays or recording devices for professional live production, broadcasting, and event streaming.

Advantages

Expand your AV-UHS500 switcher with three additional HDMI 2.0 outputs, supporting up to 4K 60p video with 4:2:2 10-bit color sampling. HDCP 2.2 compliance ensures compatibility with protected content. The card installs internally, preserving rack space and providing a clean setup.

Suitable for

• Live event production
• Broadcast studios
• Corporate AV installations
• Educational streaming

Key specifications

• Product Type: Output Expansion Card
• Compatibility: Panasonic AV-UHS500 Live Switcher
• Output Interface: HDMI 2.0
• Number of Outputs: 3
• Max Video Resolution: 4K (3840x2160) at 60p
• Color Sampling: YCbCr 4:2:2 10-bit
• HDCP Support: HDCP 2.2
• Embedded Audio: Yes
• Connector Type: HDMI Type A
• Max Data Rate: 18 Gbps
• Installation: Internal Slot (for AV-UHS500)

Recommendations

For optimal performance, use high-quality HDMI 2.0 cables and ensure your AV-UHS500 switcher firmware is up to date. This card is ideal for multi-screen setups and recording workflows.
