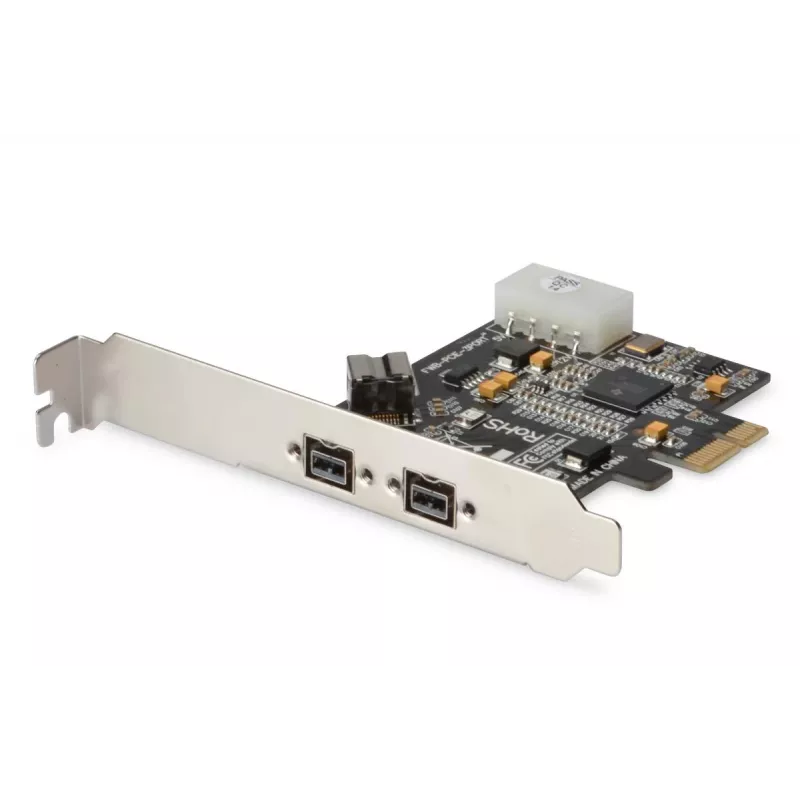

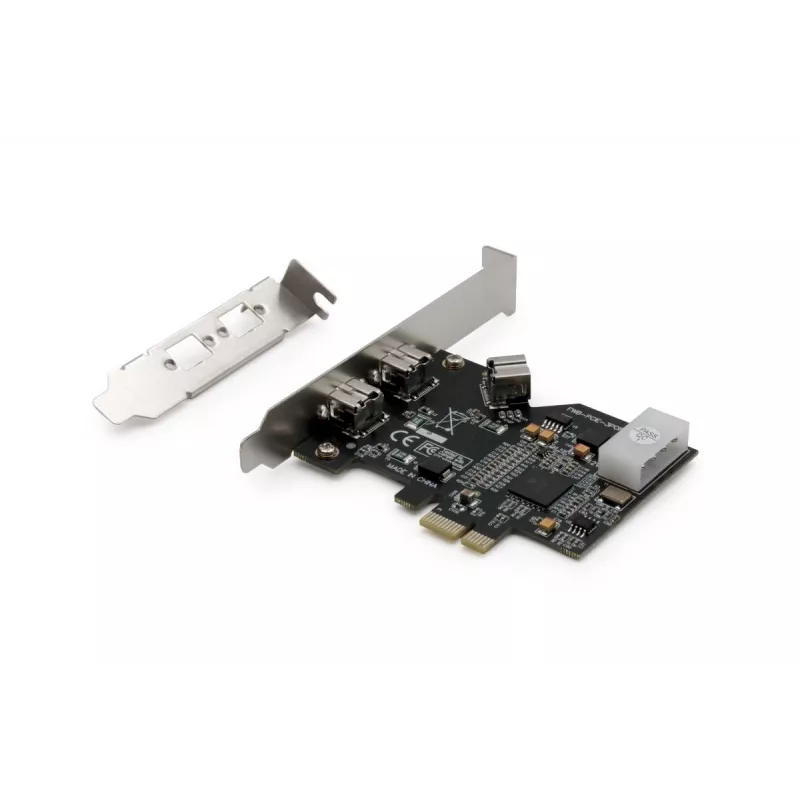

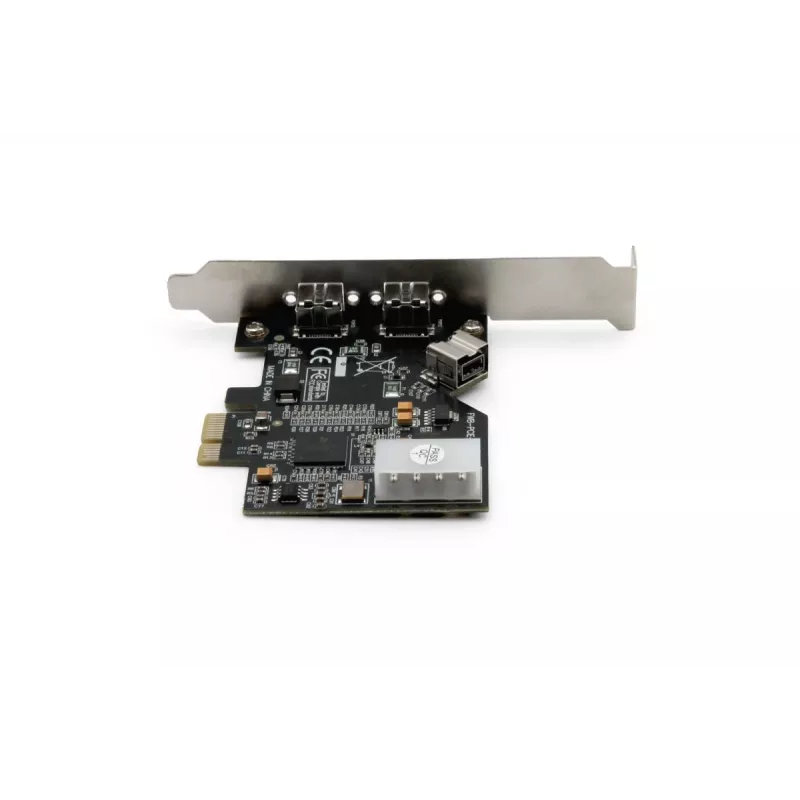

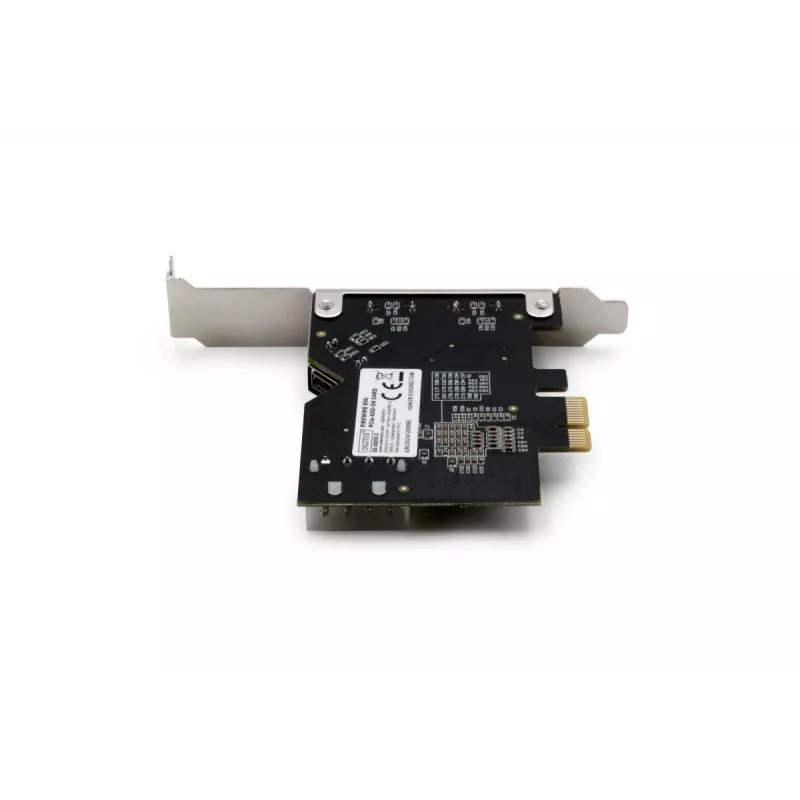

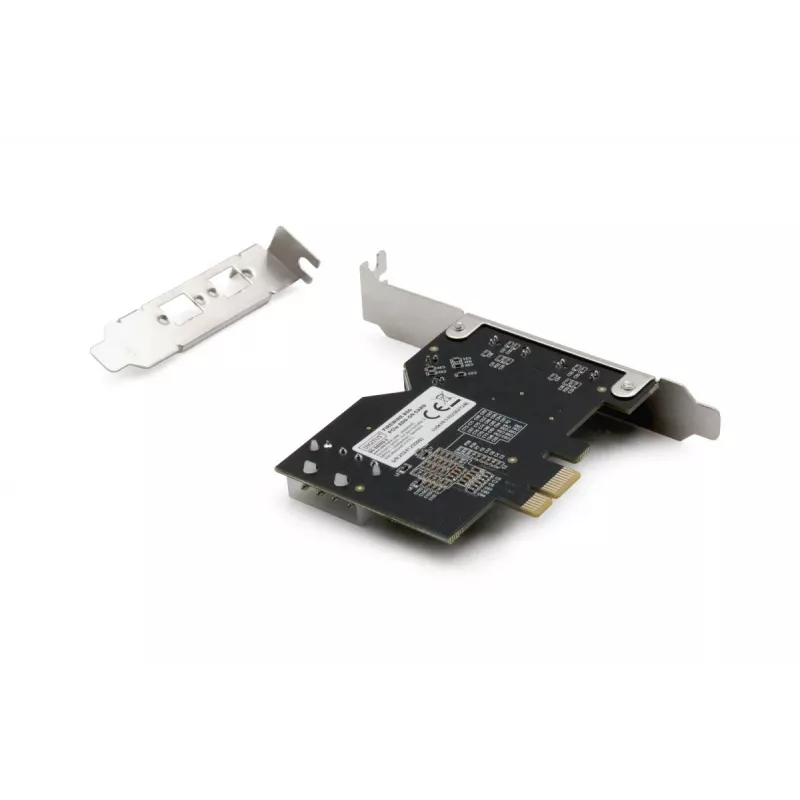

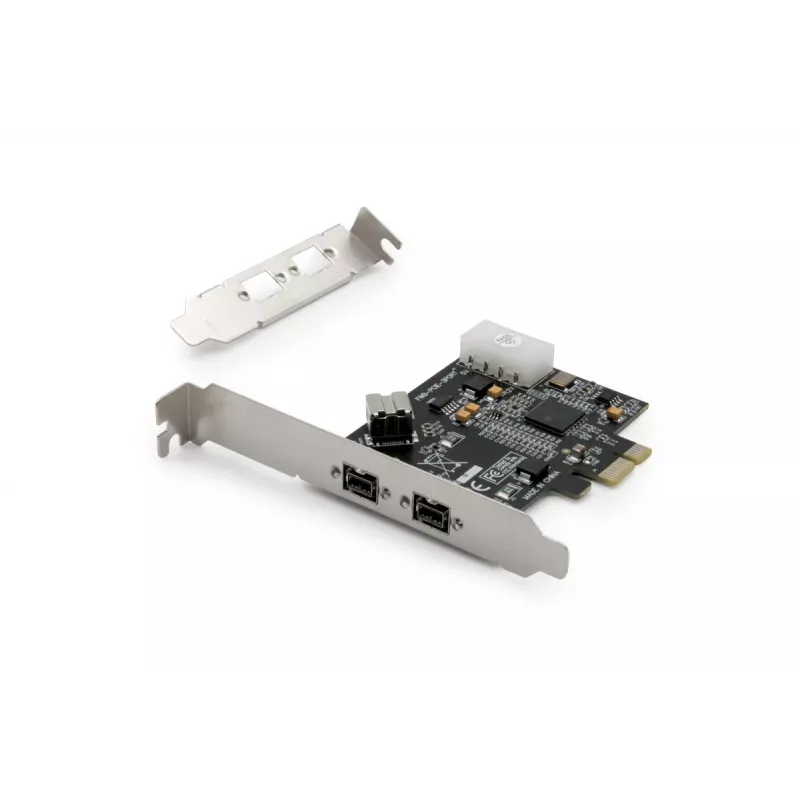

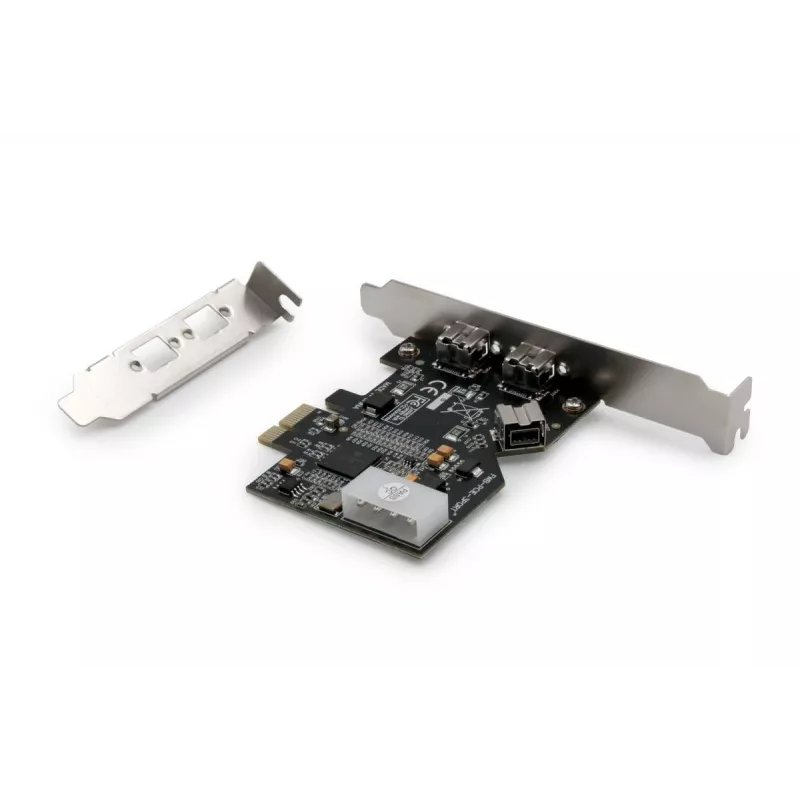

Tarjeta de interfaz DIGITUS IEEE 1394b PCIe 3 puertos, 2x9 polos externos + 1x9 polos internos

Extend your system with additional FireWire connectivity using the IEEE 1394b PCIe add-on card. The card provides three FireWire 800 (1394b) ports—two external 9-pin ports and one internal 9-pin port—and supports data transfer speeds of 100, 200, 400 and 800 Mbps. A built-in 4-pin power connector supplies extra power when connected to the system power supply, which is recommended for stable operation with high-power devices.

Advantages

The expansion card adds three high-speed FireWire 800 ports to systems that lack sufficient 1394b connectivity. Support for multiple standard transfer rates ensures compatibility with a wide range of FireWire devices. The internal 9-pin port allows connection to internal enclosures or adapters, while the external ports provide easy access for peripherals. The integrated 4-pin power connector helps maintain stable power delivery to connected devices.

Key specifications

• Interface: IEEE 1394b (FireWire 800)
• Form factor: PCI Express add-on card
• Ports: 3x FireWire 800 — 2x 9-pin external, 1x 9-pin internal
• Data transfer rates: 100 / 200 / 400 / 800 Mbps
• Power: built-in 4-pin power connector (recommended to connect to system power supply)
• Manufacturer code: XIO2213B

How to use

Power down the computer and install the card into an available PCI Express slot on the motherboard. If required, connect the built-in 4-pin power connector to the system power supply to provide additional power to connected FireWire devices. After installation, boot the system and install any necessary drivers provided by the operating system or the card manufacturer. Connect external devices to the two 9-pin external ports and internal devices or adapters to the 9-pin internal port as needed.
