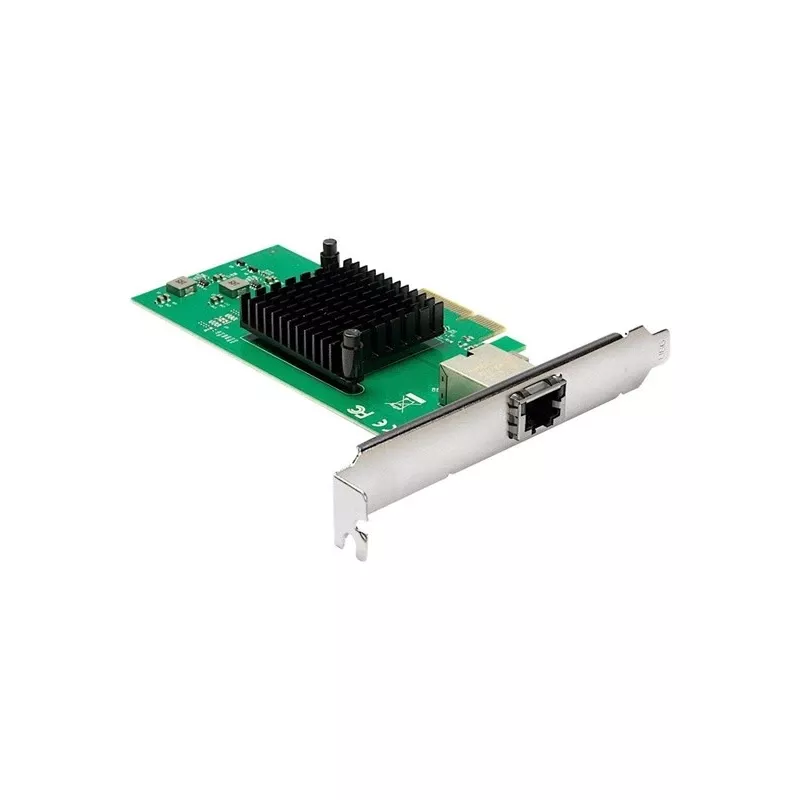

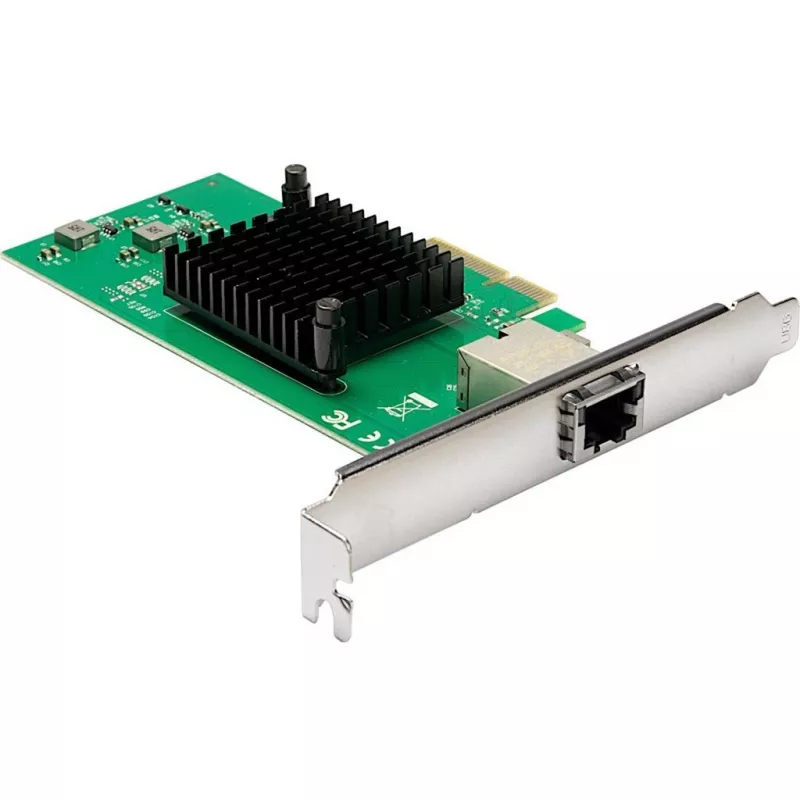

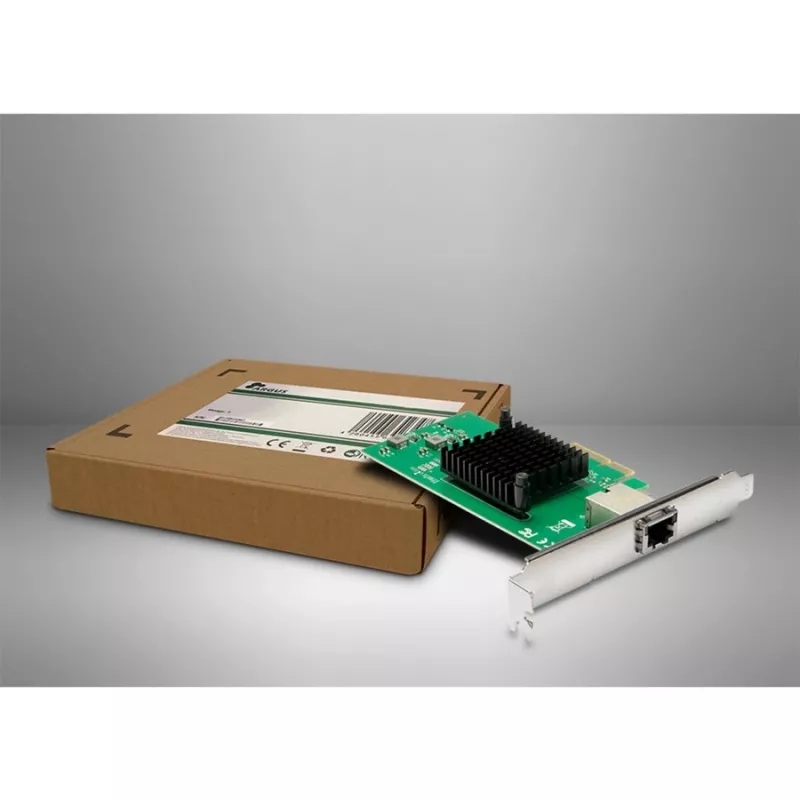

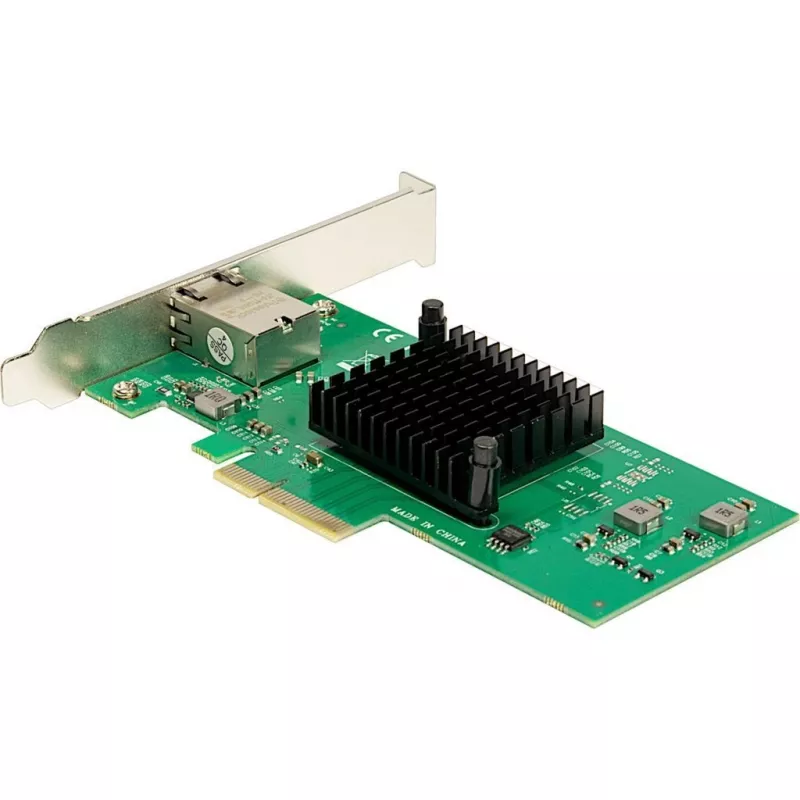

Tarjeta de interfaz Inter-Tech ST-7267 PCIe RJ-45 10 Gbit/s Verde Plata

The Inter-Tech ST-7267 is an internal PCIe interface card with an RJ45 port supporting up to 10 Gbit/s data transfer. It uses a built-in Marvell® AQC107 chipset for high throughput and offloads network processing from the main CPU via the ST-7267 controller. The card is intended for desktop and server PCs, uses passive cooling, and is compatible with Windows 8, 10, 11 and Windows Server 2012, 2016, 2019. Physical dimensions are 120 mm × 165 mm × 22 mm and the product colour is silver with green accents.

Advantages

The integrated Marvell® AQC107 chipset delivers stable high-speed network performance, while the ST-7267 offload controller reduces CPU load during heavy transfers. Passive cooling eliminates the need for additional fans, and the PCIe host interface ensures wide compatibility with modern motherboards. The RJ45 port provides a straightforward 10G Ethernet connection for systems that require increased network bandwidth.

Suitable for

• High-speed network connections in desktop PCs
• Server environments requiring reduced CPU network load
• Workstations handling large file transfers or media streaming
• Windows-based systems (Windows 8/10/11 and Windows Server 2012/2016/2019)

Key specifications

• Host interface: PCIe
• Network interface: RJ45, up to 10 Gbit/s
• Chipset: Marvell® AQC107
• Offload controller: ST-7267
• Cooling: Passive
• Compatibility: Windows 8, 10, 11; Windows Server 2012, 2016, 2019
• Dimensions: 120 mm × 165 mm × 22 mm
• Weight: 0.08 kg
• Colour: Silver, Green

How to use

Install the Inter-Tech ST-7267 into a compatible PCIe slot on the motherboard, secure the card to the case bracket, and connect a suitable Cat6a/Cat7 Ethernet cable to the RJ45 port for 10G speeds. Power on the system and install the appropriate drivers for your Windows version if they are not automatically detected. Verify link speed and adapter settings in the operating system network manager or device manager.

Recommendations

For optimal 10 Gbit/s performance, use shielded Cat6a or Cat7 cabling and a compatible 10G-capable switch or router. Ensure adequate case airflow despite passive cooling and keep drivers up to date for best stability and performance.
