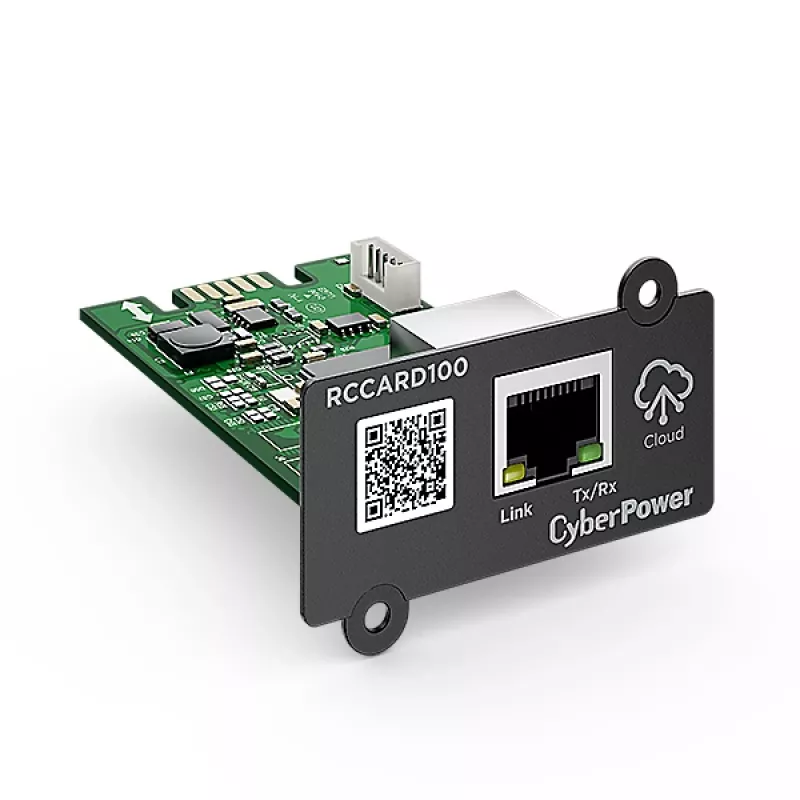

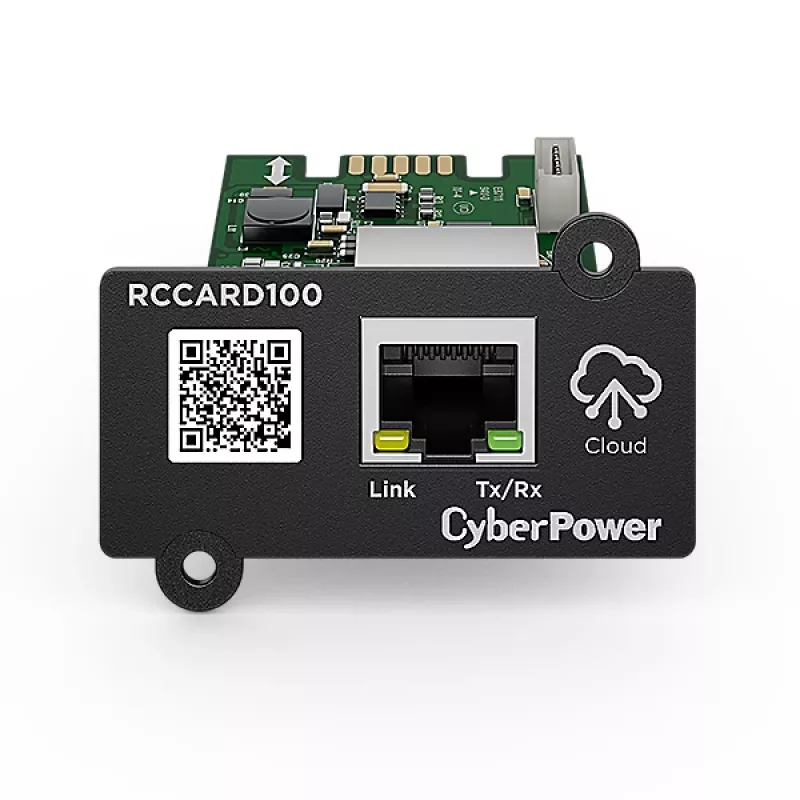

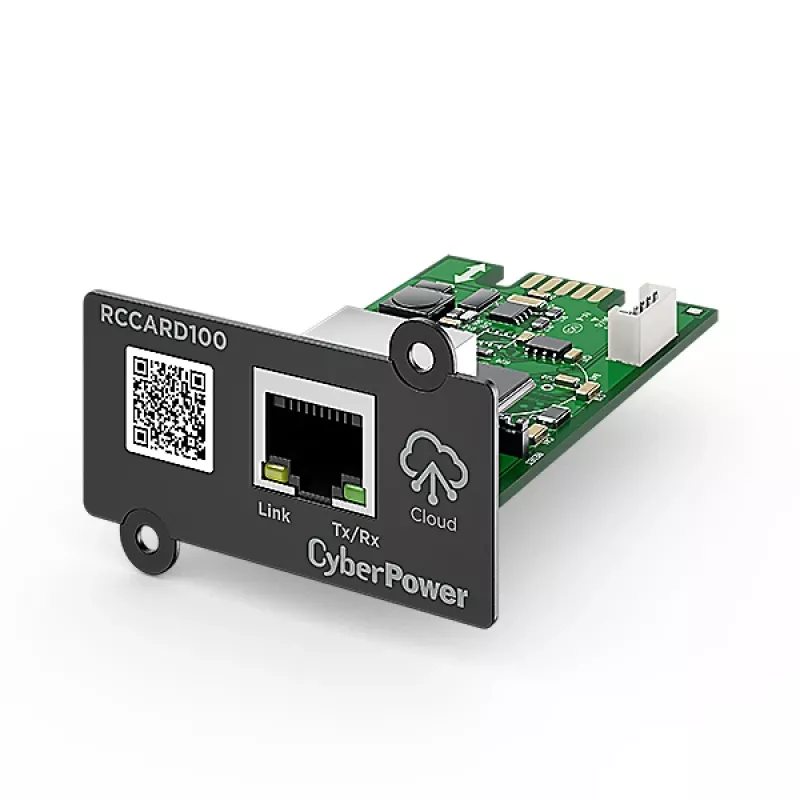

Tarjeta de red CyberPower RCCARD100 interna Ethernet 100 Mbit/s

CyberPower RCCARD100 is an internal network card that adds a wired 100 Mbit/s Ethernet connection to compatible CyberPower UPS units, enabling integration with the PowerPanel® Cloud platform for remote monitoring and management via a secure web portal or mobile app. The card uses a plug-and-play design with hot-swappable capability and supports user-upgradeable firmware to keep functionality current without interrupting UPS operation.

Advantages

The RCCARD100 provides a reliable wired connection (IEEE 802.3 / 802.3u) for UPS management, supports hot-swapping for installation without downtime, and allows firmware updates by the user. Its compact design and standard Ethernet interface make it compatible with supported CyberPower UPS models and suitable for straightforward network integration.

Suitable for

• Remote monitoring and management of CyberPower UPS devices
• Integration of UPS units into PowerPanel® Cloud
• Environments requiring a reliable wired Ethernet connection for UPS status and alerts

Key specifications

• Model: RCCARD100
• Connectivity technology: Wired
• Interface: Ethernet, 10/100 Mbit/s (IEEE 802.3, IEEE 802.3u)
• Maximum data transfer rate: 100 Mbit/s
• Weight: 0.031 kg
• Product colours: Green, Metallic, Black
• Function: Add UPS to PowerPanel® Cloud for remote monitoring and management

How to use

Insert the RCCARD100 into the designated expansion slot on a compatible CyberPower UPS while the unit is powered; the hot-swappable design allows installation without shutting down the UPS. Connect the card to a LAN using a standard Ethernet cable to provide network access. Register the UPS in the PowerPanel® Cloud service through the web portal or mobile app and, if needed, apply firmware updates via the card’s management interface.

Recommendations

Install the card following CyberPower’s instructions for your UPS model, use a secure network and keep firmware updated to ensure reliable remote monitoring and management via PowerPanel® Cloud.
