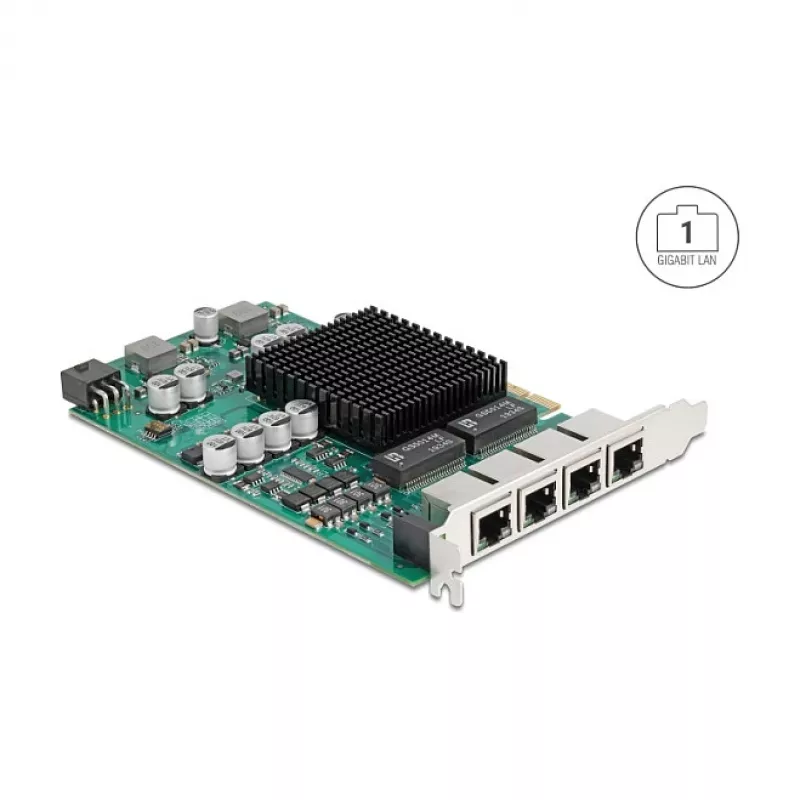

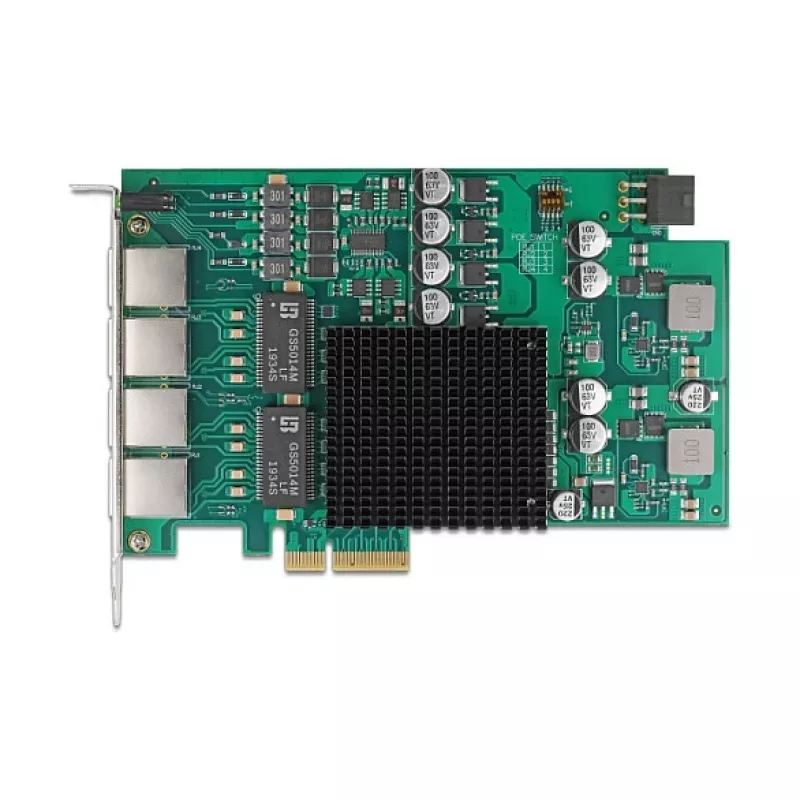

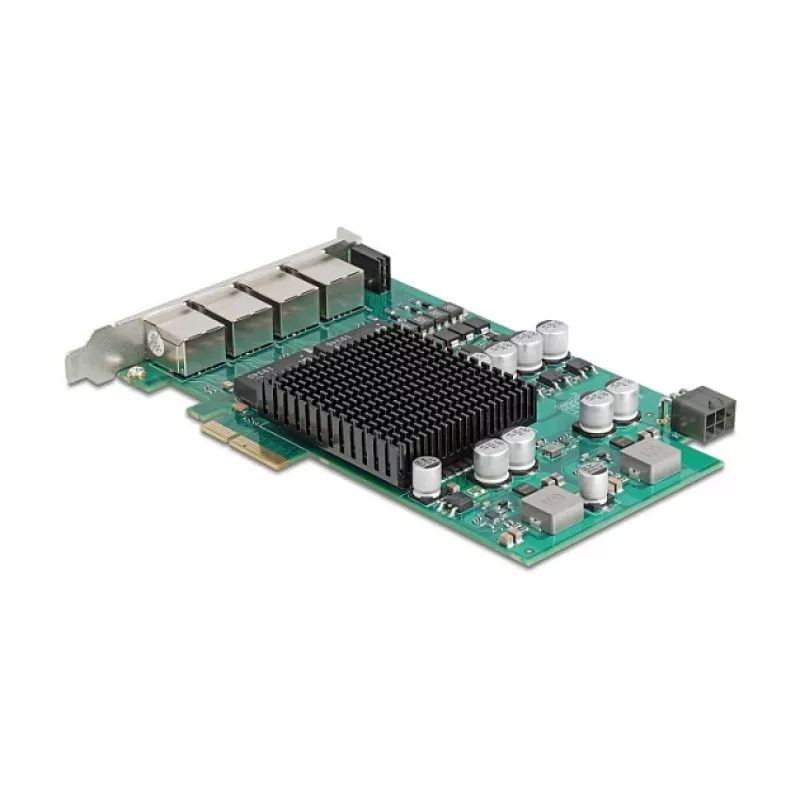

Tarjeta de red DELOCK PCI Express x4 Gigabit LAN 4xRJ45 PoE+

DELOCK PCI Express x4 Gigabit LAN 4xRJ45 PoE+ network card adds four independent Gigabit Ethernet ports with Power over Ethernet Plus (PoE+) capability to compatible desktop or server systems. The card installs in a PCIe x4 slot and provides managed power delivery and high-speed wired connections for devices that require both data and DC power through a single network cable. Its multi-port design simplifies deployment of IP cameras, access points, and VoIP phones while keeping cabling and power centralized.

Advantages

This DELOCK network card combines four gigabit Ethernet ports with PoE+ support, enabling both high-throughput data transfer and up to 30 W power per port where supported. The PCI Express x4 interface ensures a direct connection to the system bus for stable bandwidth. Compact multi-port configuration reduces the need for separate power injectors and supports centralized management of networked devices. Designed for rack-mounted servers and desktop PCs with available PCIe x4 slots, the card offers a practical way to expand wired LAN capacity without replacing the host system.

Suitable for

• Deployment of IP surveillance cameras requiring PoE+ power and gigabit bandwidth
• Connecting VoIP phones and unified communications endpoints
• Supplying power and network to wireless access points in offices or public spaces
• Expansion of wired LAN ports on desktop workstations and servers

Key specifications

• Interface: PCI Express x4 slot
• Network speed: Gigabit Ethernet (10/100/1000 Mbps)
• Ports: Four RJ45 ports with PoE+ support
• PoE standard: IEEE 802.3at compatibility (PoE+), providing higher power delivery per port
• Form factor: Low-profile bracket compatibility may be required depending on chassis
• Connector type: Shielded RJ45 with integrated magnetics

How to use

Power off the host system and install the card into an available PCI Express x4 slot, securing the bracket to the chassis. Connect each PoE-enabled device to the corresponding RJ45 port using standard Ethernet cables. After powering on the system, install any required drivers provided by the operating system or the manufacturer to enable full functionality and PoE power management. Verify link status and power delivery through the host OS network settings or management tools supplied with the system.

Recommendations

Confirm chassis clearance and PCIe lane availability prior to installation. Use quality Ethernet cables rated for gigabit speeds and PoE power handling. Ensure the host power supply and motherboard support the additional power requirements when multiple PoE+ ports are active simultaneously; for high PoE loads consider dedicated power provisioning or using a system with sufficient power headroom.
