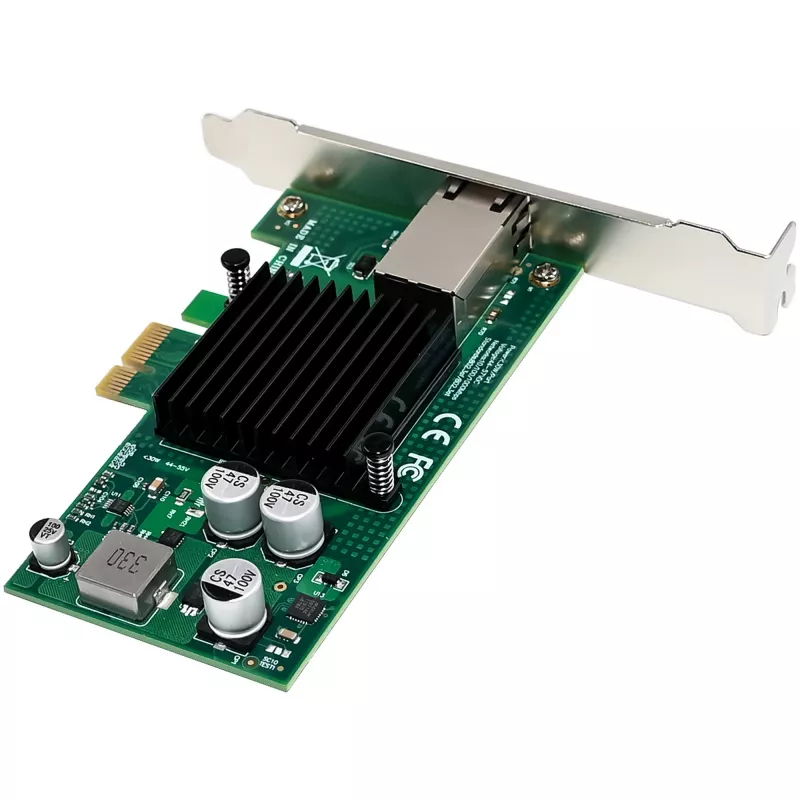

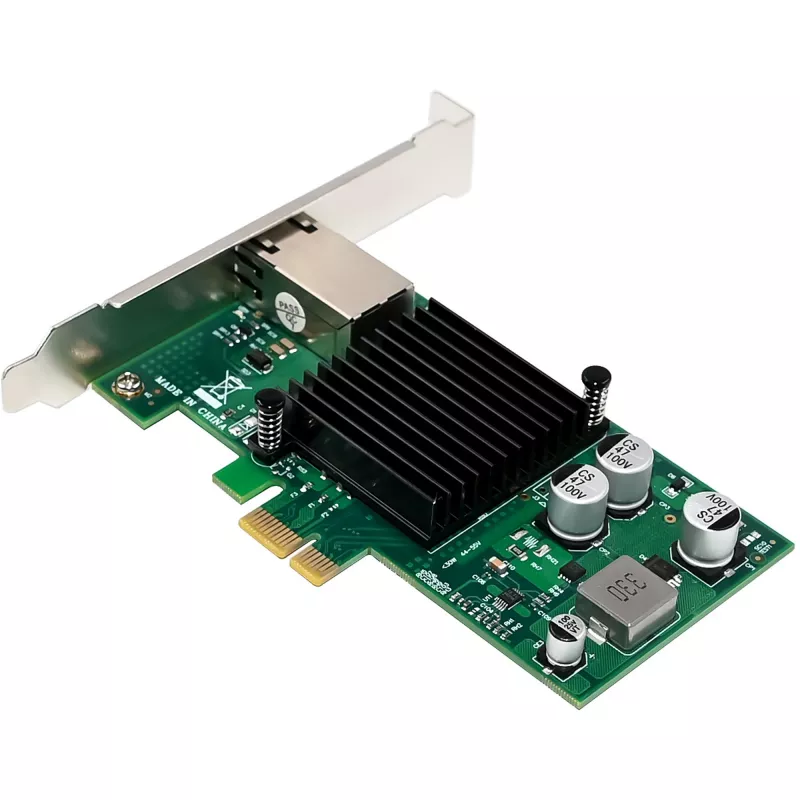

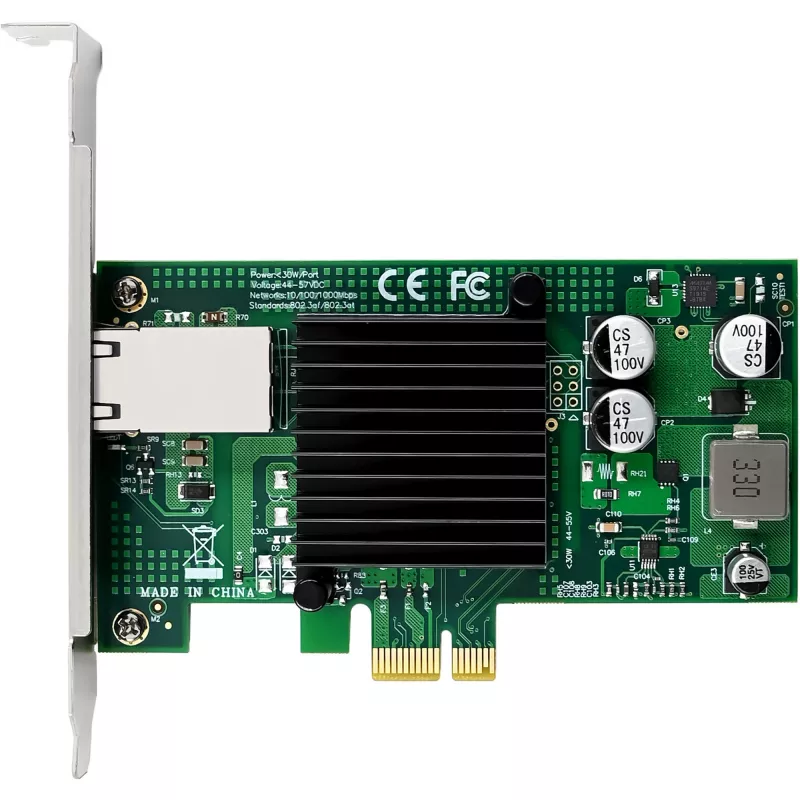

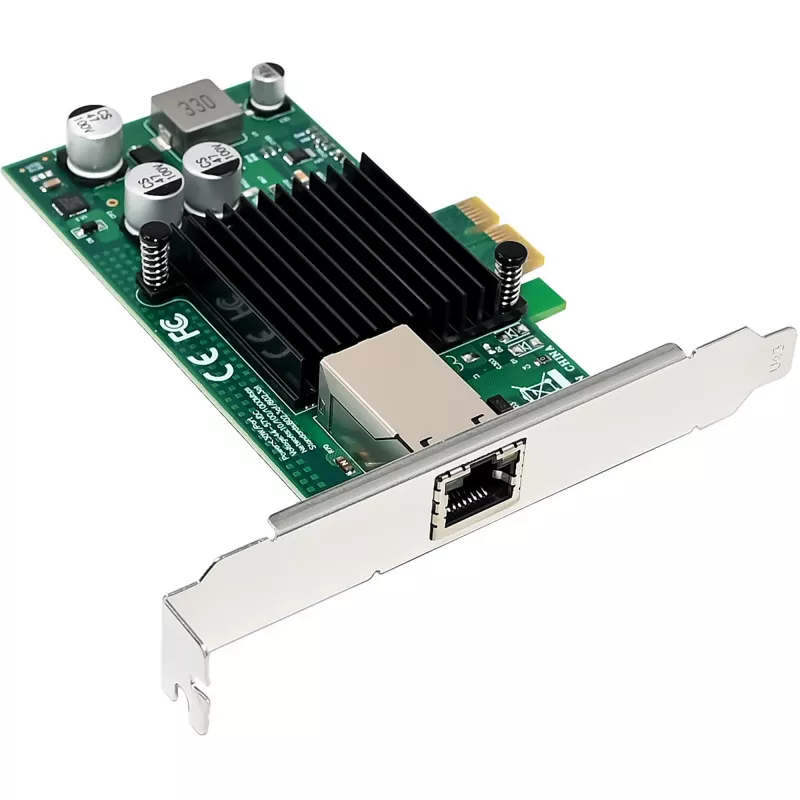

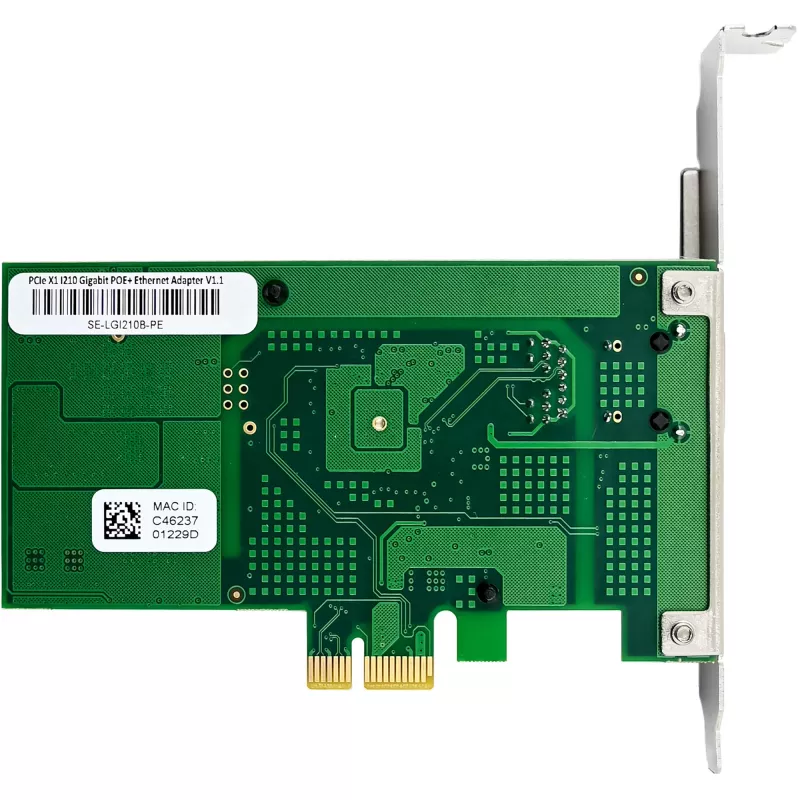

Tarjeta de red Ethernet interna InLine 51125O 1000 Mbit/s PCI Express

Gigabit Ethernet with PoE+for a fast and reliable connection
1x RJ45 connectionwith 10/100/1000 Mb/s data rate
Supports Power over Ethernet Plus (PoE+)with up to 30 W power
Intel WGI210AT chipsetfor high performance and energy efficiency

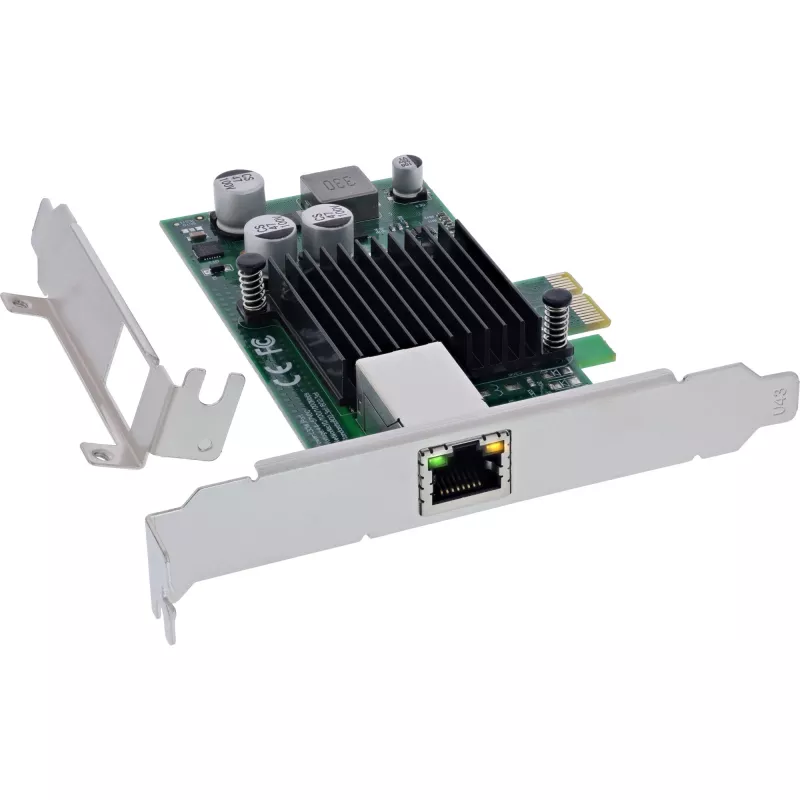

PCIe x1 interfacewith standard and low-profile slot bracket

The InLine® Gigabit network card PoE+offers a powerful and versatile solution for professional use in servers, workstations and AV applications. With an RJ45 Gigabit interface, it enables a reliable 10/100/1000 Mb/s Ethernet connectionand supports modern network technologies for optimized performance and energy efficiency.
Thanks to PoE+ (IEEE 802.3af/at) with up to 30 W, it is ideal for IP cameras, access points and VoIP telephones, which can be supplied with power directly via the network cable - without a separate power source.
Additional features such as VLAN support (802.1Q), Jumbo Frames up to 9K, Flow Control (802.3x)and Virtual Machine Device Queues (VMDq)ensure optimized network performance and efficient use of system resources.
Technical data:

Bus type: PCIe v2.1 (5.0 GT/s) 1-lane
Connection: 1 x RJ45 (copper)
Data rate: 10/100/1000 Mb/s (Gigabit Ethernet)

Maximum cable length:

10BASE-T: Category 3 or higher (up to 100 m)
100BASE-TX: Category-5 or higher (up to 100 m)
1000BASE-T: Category 5e or higher (up to 100 m)

Chip set: Intel WGI210AT
Supported protocols: IPv4, IPv6
PoE+ (Power over Ethernet)
Maximum power: 30 W
Voltage range: 44-57 V DC
Dimension: 115 mm x 69 mm (PCIe board)

Network & protocol support
Supported IEEE standards:

IEEE 802.3 (Ethernet)
IEEE 802.3u (Fast Ethernet)
IEEE 802.3ab (Gigabit Ethernet)
IEEE 802.3x (Flow Control)
IEEE 802.1Q (VLAN)
IEEE 802.3af / 802.3at (PoE+)
IEEE 802.1Qav (audio-video bridging)
IEEE 1588 & 802.1AS (precise time synchronization)

Features:

Auto-negotiation (10/100/1000 Mb/s)
MDI/MDI-X (automatic crossover detection)
Receive-Side Scaling (RSS)
Support for jumbo frames (up to 9K)
UDP/TCP & IP checksum offloading
Virtual Machine Device Queues (VMDq, up to 8 VMs)
Interrupt throttling control

Operating system support

Windows: 11, 10, 8, 7
Windows Server: 2008 R2, 2016, 2019, 2021
Linux: from kernel version 2.6.30
Other: FreeBSD, virtualization environments (e.g. VMware ESXi)

Environmental conditions:

Operating temperature: 0 °C to 55 °C
Storage temperature: -40 °C to 70 °C
Maximum humidity: 90 %

Scope of delivery:

1x InLine® Gigabit network card PoE+, 1x RJ45 1Gb/s
1x low-profile slot bracket
1x driver CD
1x operating instructions (German/English)

InLine 51125O. Host interface: PCI Express. Country of origin: Taiwan. Windows operating systems supported: Windows 10, Windows 11, Windows 7, Windows 8, Linux operating systems supported: Kernel 2.6.31, Kernel 2.6.33, Kernel 3.12, Kernel 3.17, Kernel 3.3, Kernel 4.6.4, Server operating systems supported: Windows Server 2008 R2, Windows Server 2016, Windows Server 2019. Width: 115 mm, Depth: 69 mm. Package weight: 80 g, Package volume: 700 cm³

How to use

Install the card into an available PCIe x1 slot (or compatible slot) on the host motherboard and secure with the supplied bracket (standard or low‑profile). Connect a Cat5e or higher Ethernet cable to the RJ45 port for Gigabit operation and, if using PoE, ensure the connected device supports PoE and the cable meets the required category and length limits (up to 100 m). Install drivers from the included CD or the vendor website and verify network and PoE settings in the operating system or management console.

Recommendations

For stable Gigabit and PoE+ operation use Cat5e (or better) cables and keep cable runs under 100 m. Verify device PoE requirements before connection and ensure the host system provides adequate cooling within the specified operating temperature range.
