Tarjeta de red Ethernet interna InLine 51127B 1000 Mbit/s PCI Express

Four RJ45 Gigabit portsfor a stable and fast network connection
PCIe x1 interfacefor high compatibility with various systems
Supports VLAN (802.1Q), jumbo frames (up to 9K) and flow control
Suitable for servers, workstations and AV applications

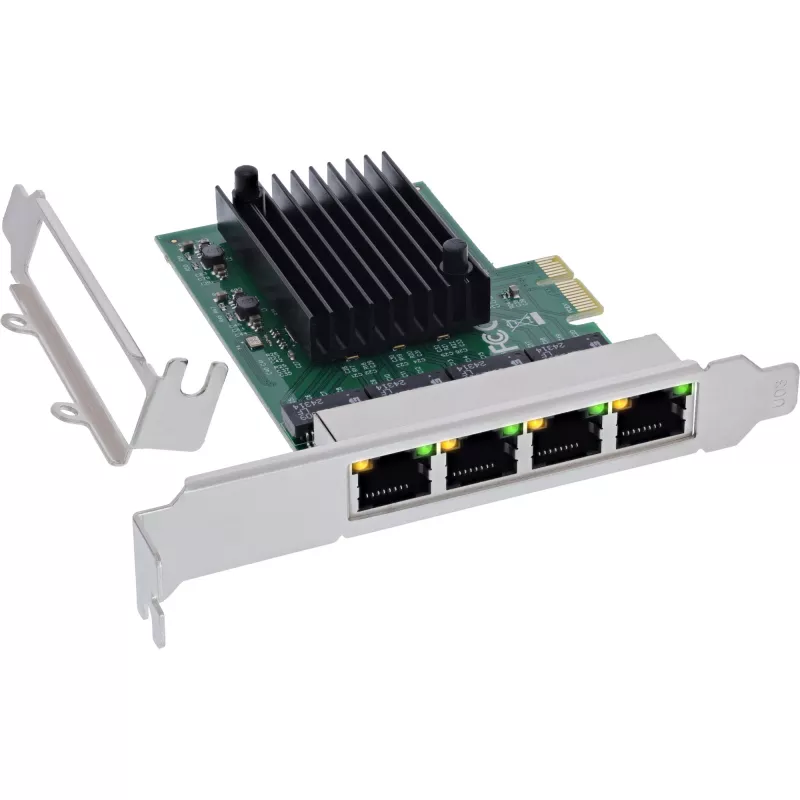

Includes low-profile slot bracketfor easy integration into compact housings

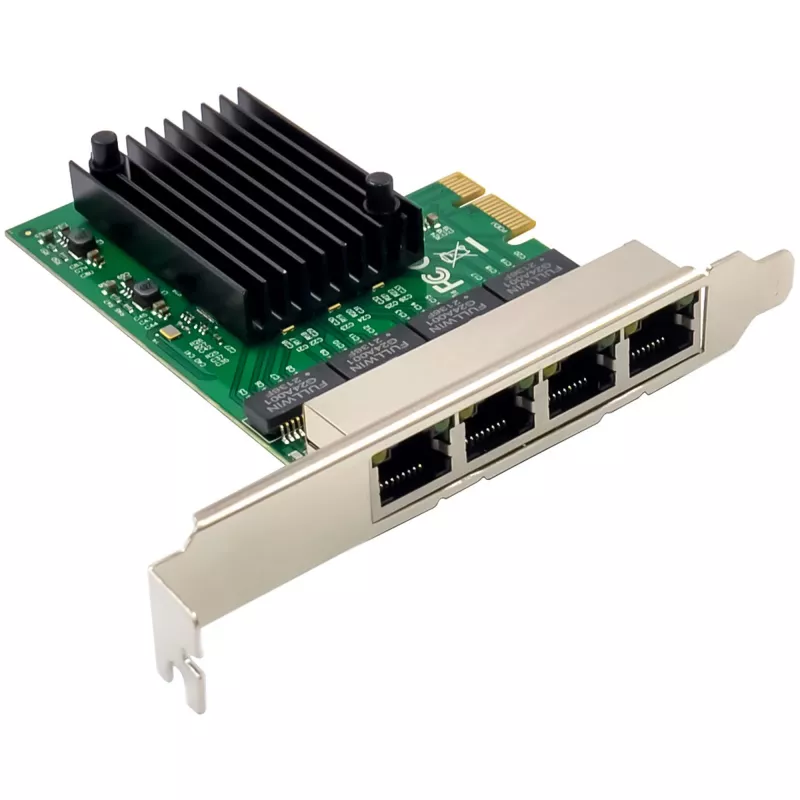

The InLine® Quad Gigabit network cardis a powerful solution for expanding your system with four Gigabit Ethernet ports. It is ideal for servers, workstationsand professional AV applicationsand supports modern network technologies for maximum efficiency.
With a data rate of up to 1 Gb/sper port, the card enables a stable network connection with auto-negotiationand supports Wake-on-LAN (WOL), VLANs (802.1Q) and jumbo frames (up to 9K). The Realtek RTL8111F chipset used ensures reliable performance and energy efficiency.
Thanks to the PCIe x1 interface, the network card is compatible with a wide range of systems and enables efficient data transmission. The supplied low-profile slot bracketfacilitates installation in compact housings.
Technical data:

Bus type: PCIe v1.1 (2.5 GT/s) x1 lane
Connection: 4 x RJ45 (copper)
Data rate: 10/100/1000 Mb/s (Gigabit Ethernet)

Supported speeds:

10/100 Mb/s in half-duplex mode
10/100/1000 Mb/s in full-duplex mode

Maximum cable length:
10BASE-T: Category-3 or higher (up to 100 m)
100BASE-TX: Category-5 or higher (up to 100 m)
1000BASE-T: Category-5e or higher (up to 100 m)

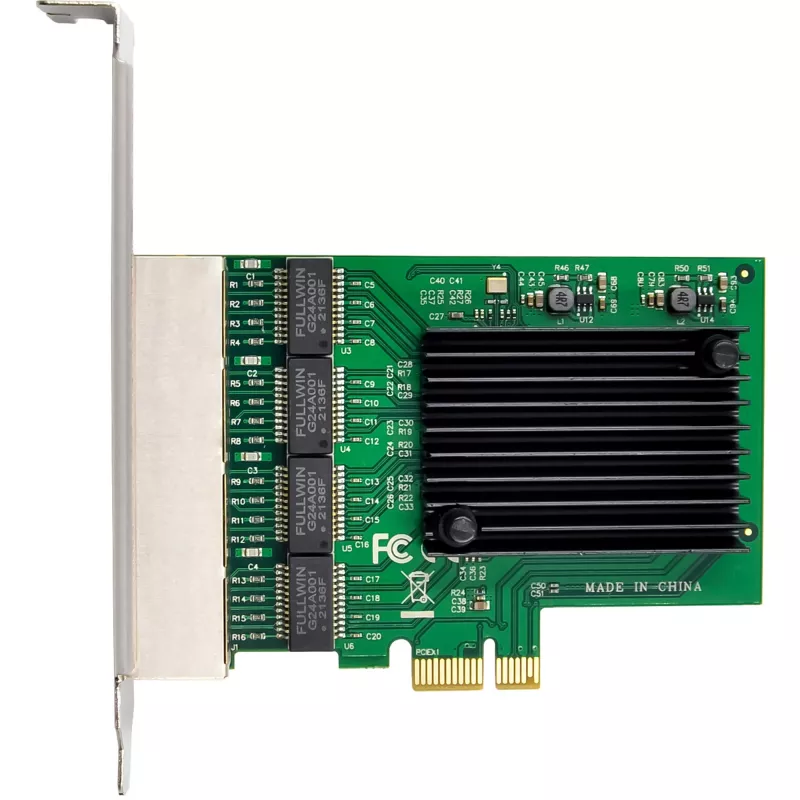

Chipset: Realtek RTL8111F + ASM1184e
Supported protocols: IPv4, IPv6
Dimensions: 100 mm x 69 mm (PCIe board)

Network & protocol support:

Supported IEEE standards:

IEEE 802.3 (Ethernet), IEEE 802.3u (Fast Ethernet), IEEE 802.3ab (Gigabit Ethernet)
IEEE 802.3x (Flow Control), IEEE 802.1Q (VLAN)
IEEE 802.1P Layer2 Priority Encoding

Functions:

Auto-negotiation (10/100/1000 Mb/s)
Supports Wake-on-LAN (WOL)
Support for Jumbo Frames (up to 9K)

Operating system support:

Windows: 11, 10, 8, 7
Windows Server: 2008 R2, 2016, 2019, 2021
Linux: from kernel version 2.6.30

Environmental conditions:

Operating temperature: 0 °C to 55 °C
Storage temperature: -40 °C to 70 °C
Maximum humidity: 90 %

Scope of delivery:

1x InLine® Quad Gigabit network card, 4x RJ45 1 Gb/s
1x low-profile slot bracket
1x driver CD
1x instruction manual (German/English)

InLine 51127B. Host interface: PCI Express. Country of origin: Taiwan. Chipset: Realtek RTL8111F. Windows operating systems supported: Windows 10, Windows 11, Windows 7, Windows 8, Linux operating systems supported: Kernel 2.6.31, Kernel 2.6.33, Kernel 3.12, Kernel 3.17, Kernel 3.3, Kernel 4.6.4, Server operating systems supported: Windows Server 2008 R2, Windows Server 2016, Windows Server 2019. Width: 100 mm, Depth: 69 mm

How to use

Install the card into an available PCIe x1 slot on the motherboard and secure it with the standard or low-profile bracket according to the case type. Connect network cables to the RJ45 ports and ensure proper cabling category for the required speed. Install drivers from the supplied CD or download the latest drivers from the manufacturer if necessary. Configure network settings in the operating system, enable VLANs or jumbo frames where required, and activate Wake-on-LAN in BIOS and OS if needed.

Recommendations

Use appropriate Ethernet cables (Cat5e or higher for Gigabit) and keep firmware/drivers up to date. Ensure the host system provides sufficient cooling and that BIOS settings allow PCIe device operation and Wake-on-LAN if used.
