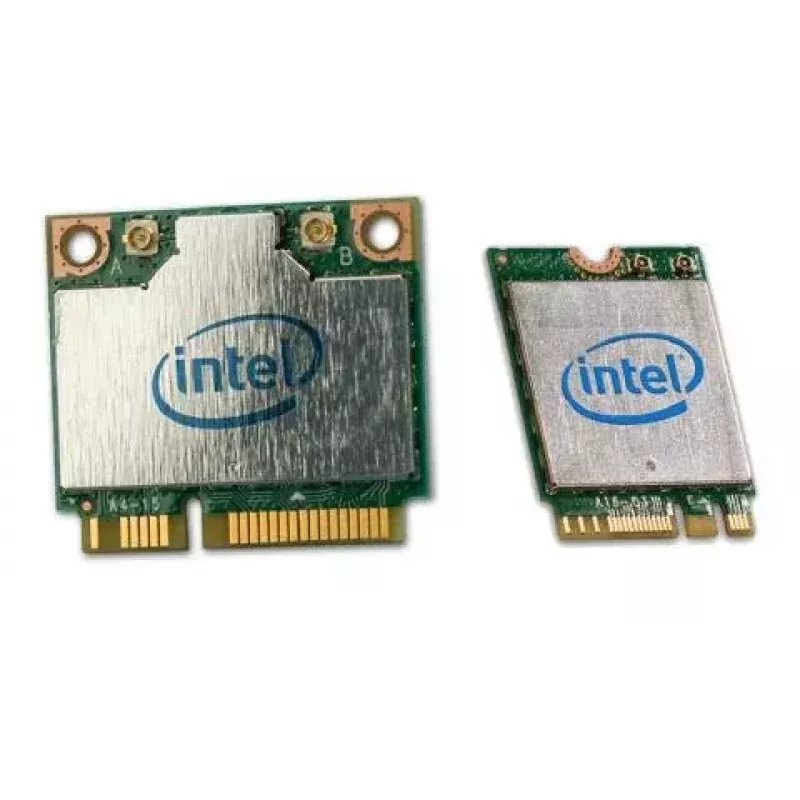

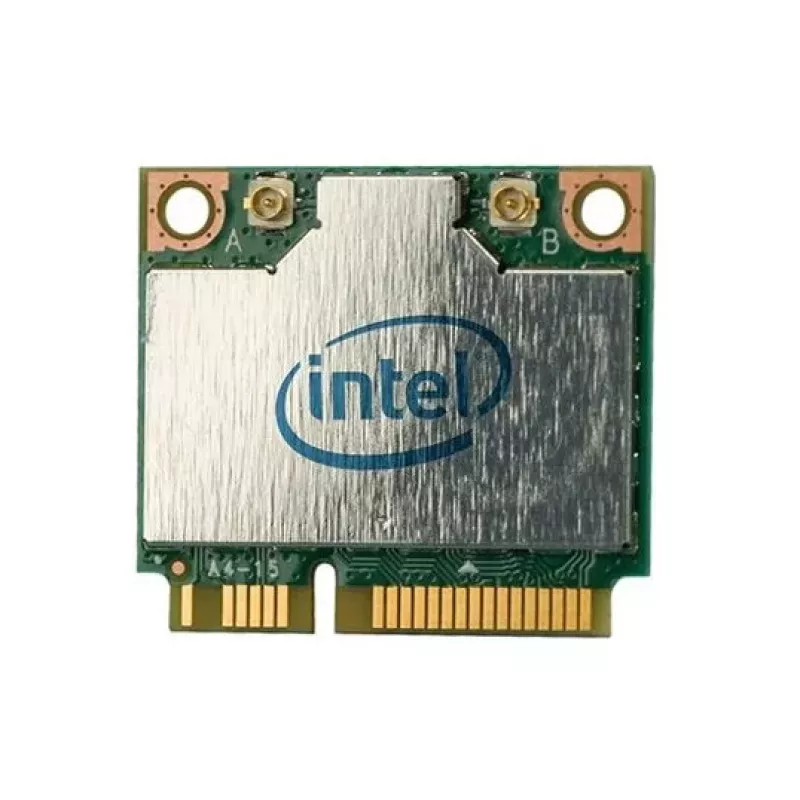

Tarjeta de red Intel 7260.HMWWB.R interna WLAN Bluetooth

The Intel Dual Band Wireless-AC 7260 is an internal Mini PCI Express network card that provides dual-band Wi-Fi (2.4 GHz and 5 GHz) and Bluetooth connectivity. Supporting the 802.11ac (Wi‑Fi 5) standard with a maximum data transfer rate of up to 867 Mbps and compatibility with IEEE 802.11a/b/g/n, this compact adapter is designed for laptops and small form‑factor devices to enable fast, reliable wireless communication.

Advantages

This Intel 7260.HMWWB.R adapter delivers dual-band 2x2 MIMO performance for improved throughput and range while maintaining low power consumption for longer battery life. The combined Wi‑Fi and Bluetooth interface simplifies connectivity in portable devices, and the Mini PCI Express form factor ensures compatibility with many laptop and embedded systems. Support for multiple IEEE 802.11 standards provides broader interoperability with existing networks.

Suitable for (tasks / use cases)

• Upgrading or repairing laptop wireless connectivity
• Embedded systems and compact PCs requiring Wi‑Fi and Bluetooth
• Home and small office wireless networking on 2.4 GHz and 5 GHz bands
• Use with devices that accept Mini PCI Express wireless modules

Key specifications

• Model: Intel Dual Band Wireless-AC 7260 (7260.HMWWB.R)
• Wireless standard: IEEE 802.11ac (Wi‑Fi 5), backward compatible with 802.11a/b/g/n
• Maximum data transfer rate: up to 867 Mbps
• Bands: Dual-band 2.4 GHz and 5 GHz
• Radio configuration: 2x2 (dual spatial streams)
• Interface: Mini PCI Express
• Additional: Integrated Bluetooth
• Weight: 0.003 kg

How to use

Install the Intel 7260.HMWWB.R into an open Mini PCI Express slot on a compatible laptop or embedded board following the device manufacturer's instructions. After physical installation, power on the system and install the appropriate Intel drivers for your operating system to enable Wi‑Fi and Bluetooth functionality. Configure network settings through the operating system network manager to connect to 2.4 GHz or 5 GHz wireless networks as needed.

Recommendations

For optimal performance, use the adapter with updated Intel drivers and connect to a compatible 802.11ac access point. When possible, place the device in environments with limited interference and use the 5 GHz band for higher throughput and the 2.4 GHz band for broader coverage.
