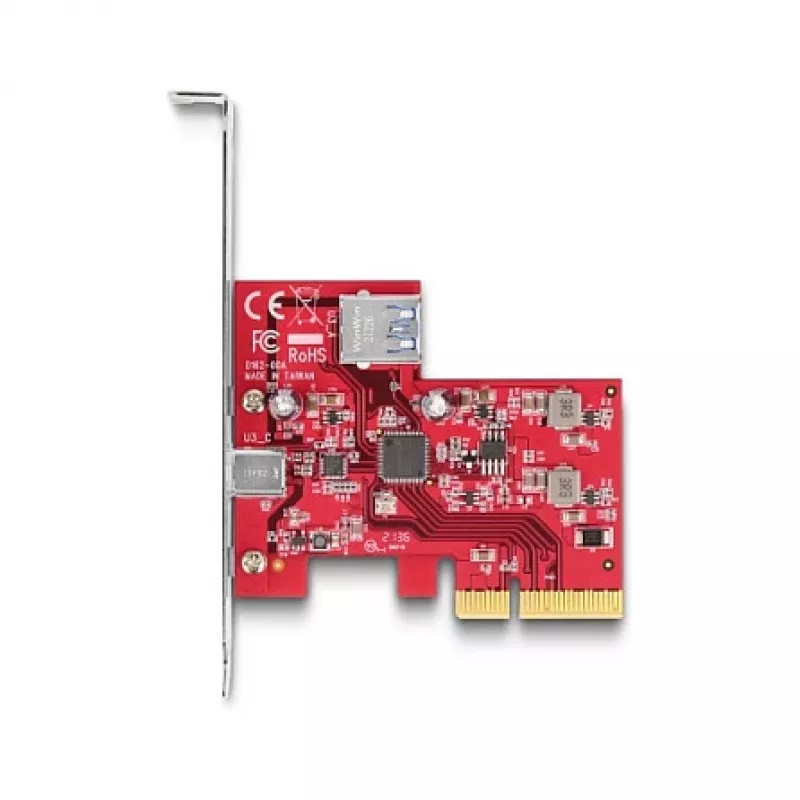

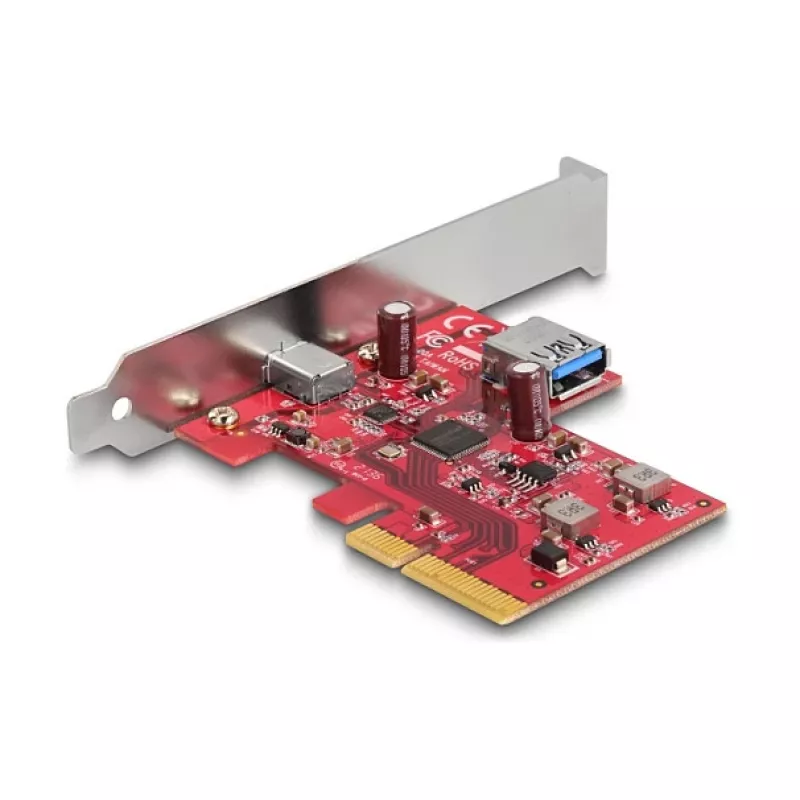

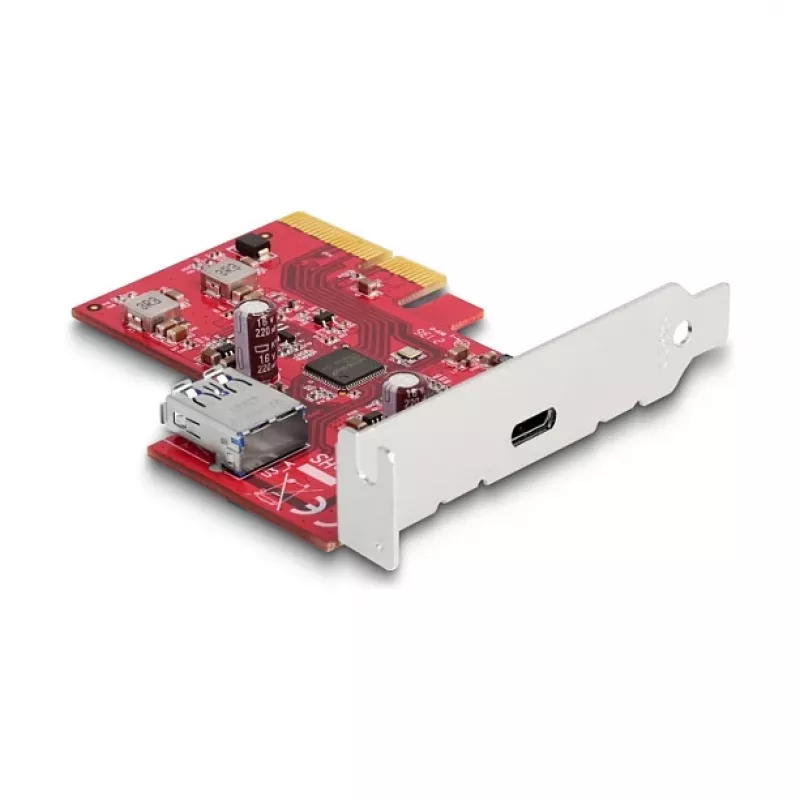

Tarjeta DeLOCK PCI Express x4 USB 10 Gbps Type-C Type-A Low Profile

The DeLOCK PCI Express x4 Card USB 10 Gbps Type-C Type-A Low Profile adds two high-speed USB 10 Gbps ports to a PC. It provides one external USB Type-C port and one internal USB Type-A port over a PCIe x4 interface in a low-profile form factor, suitable for compact systems. The card supports simultaneous data transfer at up to 10 Gbps on both ports and supplies 5 V at up to 3 A for connected devices.

Advantages

This PCIe adapter delivers USB 3.2 Gen 2 (USB 3.1 Gen 2) speeds with both Type-C and Type-A connections, enabling fast transfer of large files and compatibility with a wide range of USB peripherals such as flash drives, card readers and external enclosures. The low profile design allows installation in small form-factor PCs while the internal Type-A header provides an option to connect front-panel or internal devices.

Suitable for

Key specifications

How to use

Install the card into an available PCIe x4 (or larger) slot on the motherboard and secure it to the chassis. If required, attach the low-profile bracket. Connect external devices to the Type-C port and internal or front-panel devices to the internal Type-A header. Ensure the system BIOS and operating system recognize the PCIe card; install drivers if the OS does not provide native support. Verify connected devices receive power and appear in the OS before transferring data.

Recommendations

For optimal performance, use USB 3.2 Gen 2 compatible cables and devices. When using both ports simultaneously with high-throughput devices, check system resources and cooling in small form-factor cases to maintain stable transfer rates.
