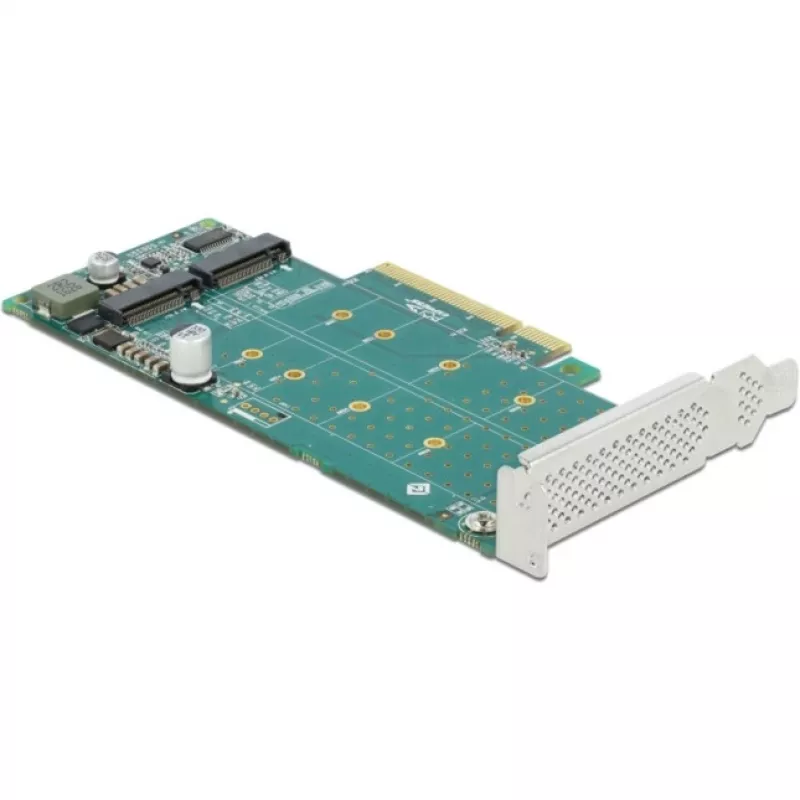

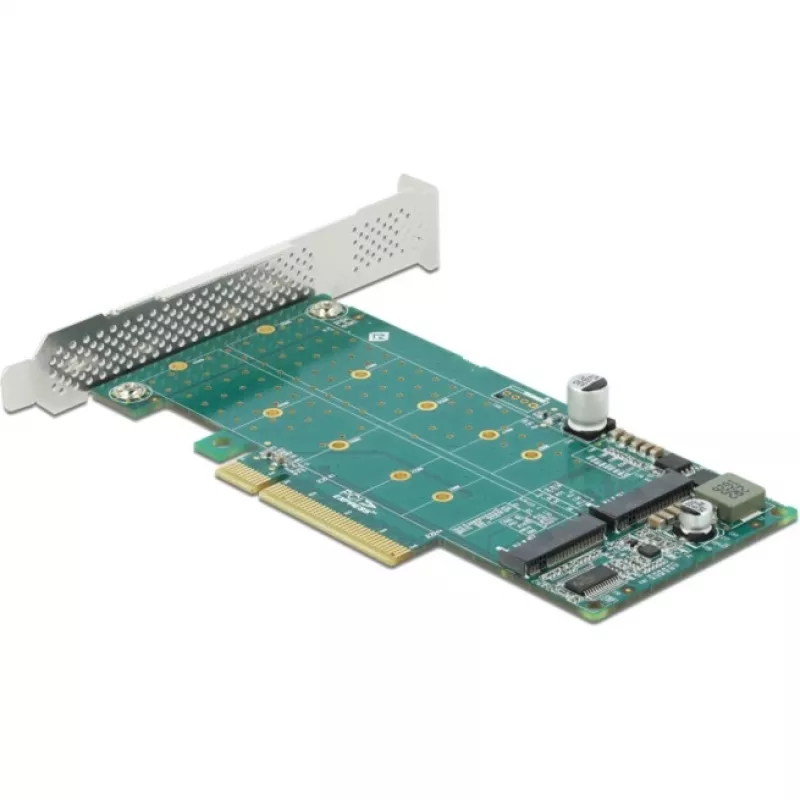

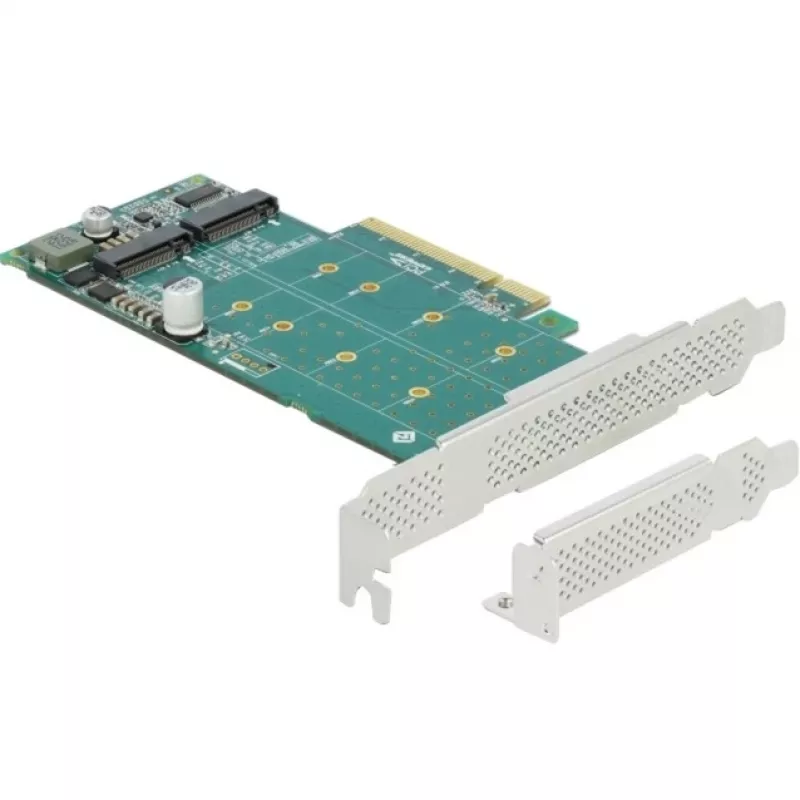

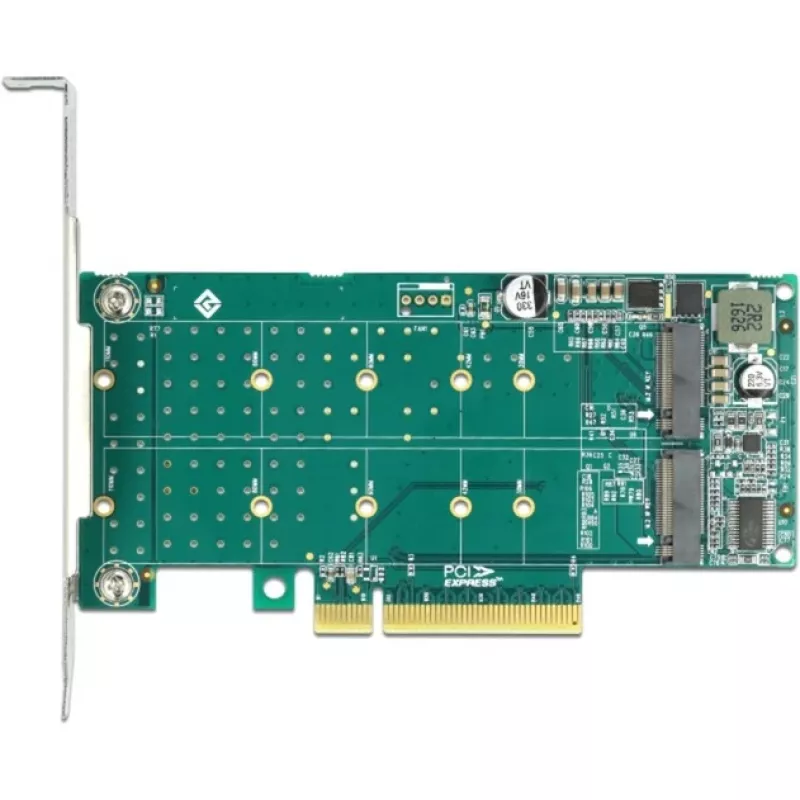

Tarjeta DeLOCK PCI Express x8 a 2 x NVMe M.2 Key M internos bifurcación formato low profile

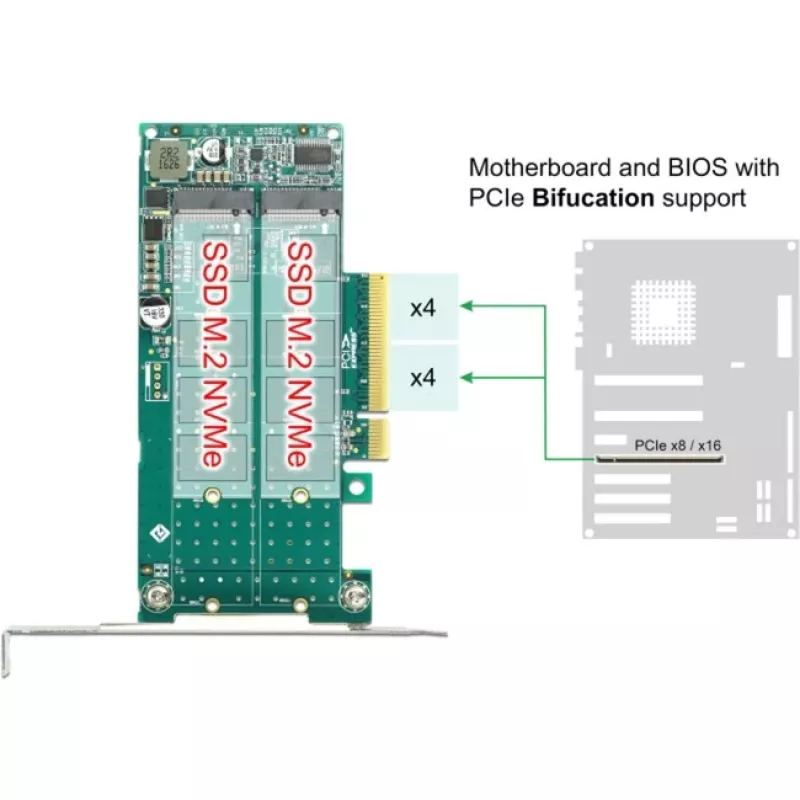

This PCI Express x8 card from DeLOCK adds two internal NVMe M.2 Key M slots to a PC, supporting M.2 SSD sizes 22110, 2280, 2260, 2242 and 2230. The card uses PCIe bifurcation on the motherboard to split the PCIe lanes so both M.2 slots can be used simultaneously and is available in a low-profile form factor suitable for compact cases.

Advantages

The card provides two internal NVMe M.2 Key M connectors for high-speed storage expansion while maintaining a low-profile design for small form-factor systems. Bifurcation support enables simultaneous use of both M.2 drives, and compatibility with common M.2 lengths ensures flexibility when choosing SSDs.

Suitable for

• Upgrading storage capacity with two NVMe M.2 drives
• Small form-factor PC builds that require low-profile expansion cards
• Systems with motherboards that support PCIe bifurcation for multiple NVMe drives

Key specifications

• Brand: DELOCK
• Model / MPN: 89045
• EAN: 4043619890453
• Interface: PCIe x8 (requires motherboard bifurcation)
• Output: 2 × internal NVMe M.2 Key M slots
• Supported M.2 sizes: 22110, 2280, 2260, 2242, 2230
• Form factor: Low profile

How to use

Install the card into a PCIe x8 (or larger) slot on a motherboard that supports PCIe lane bifurcation. Secure the low-profile bracket in the case and attach compatible M.2 NVMe SSDs into the M.2 Key M slots, fastening each drive with the provided standoffs or screws. Ensure the motherboard firmware/BIOS is configured for PCIe bifurcation so both M.2 devices are recognized and accessible by the operating system.

Recommendations

Use modern NVMe M.2 Key M SSDs of supported lengths for optimal performance and verify that your motherboard supports PCIe bifurcation and has sufficient PCIe lanes available. Check BIOS/UEFI settings and update firmware if necessary to enable proper detection of both drives.
