Tarjeta gráfica GAINWARD GeForce RTX 5060 Ti Ghost OC — 8 GB GDDR7, 128 bits, PCIe 5.0, 2407 MHz

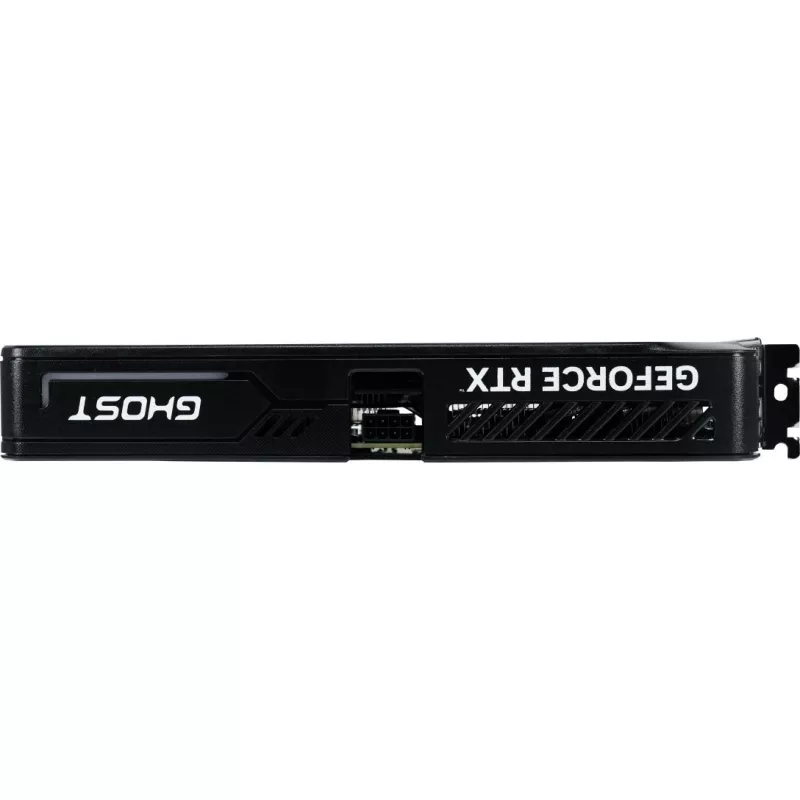

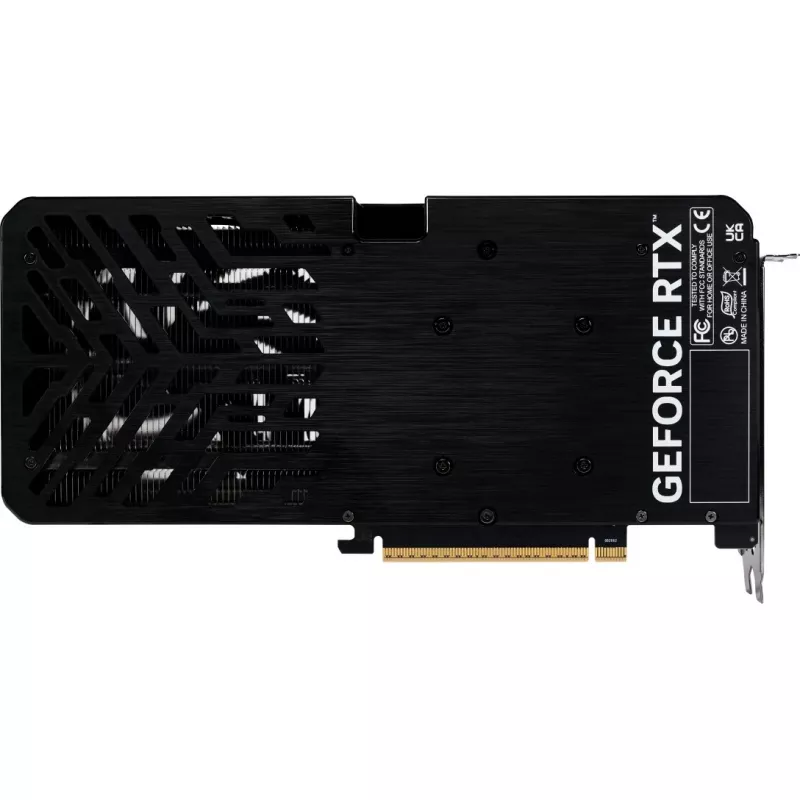

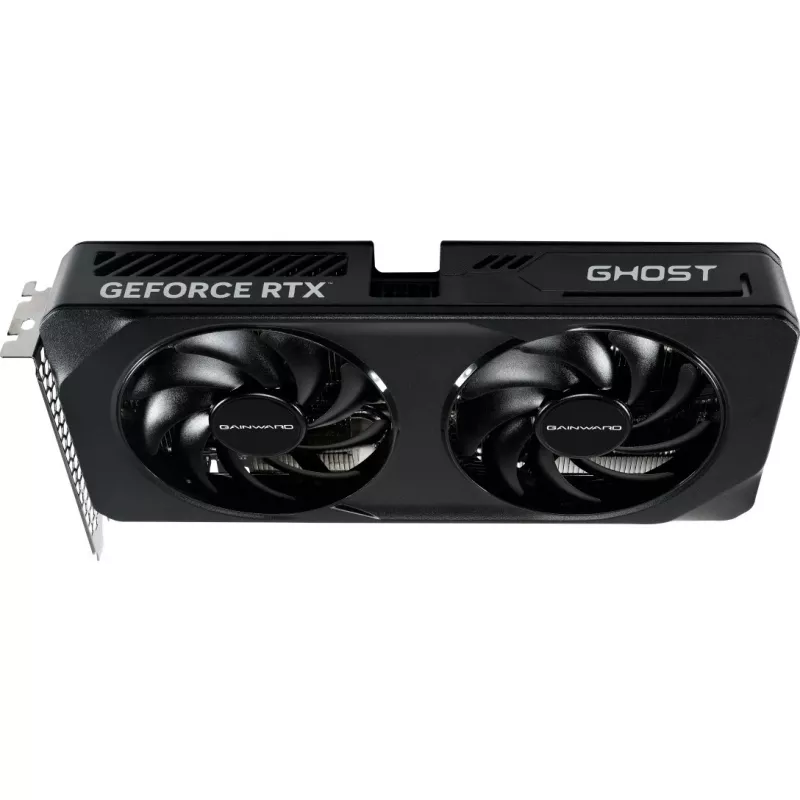

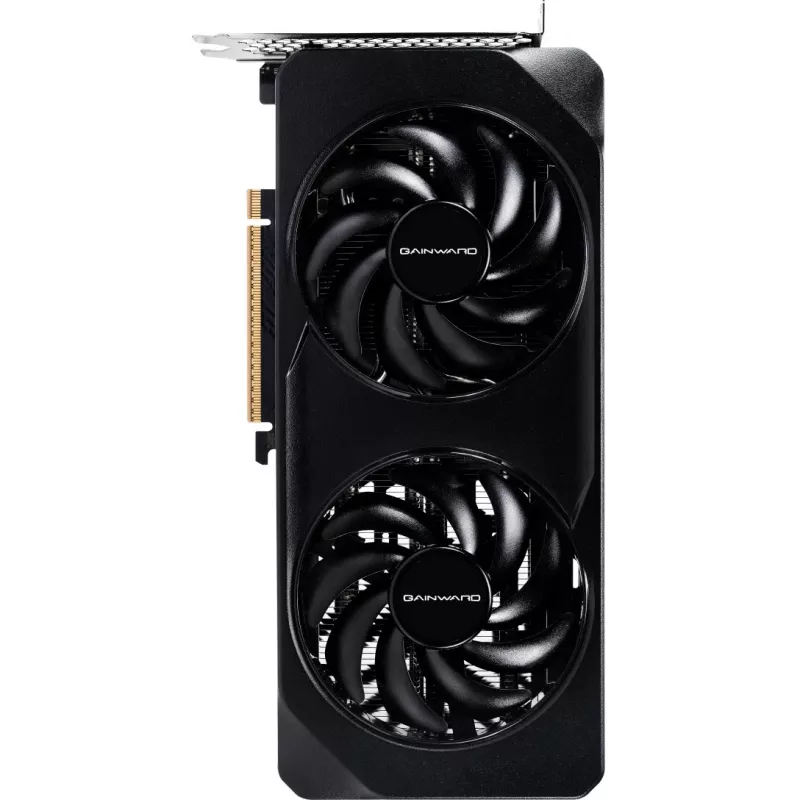

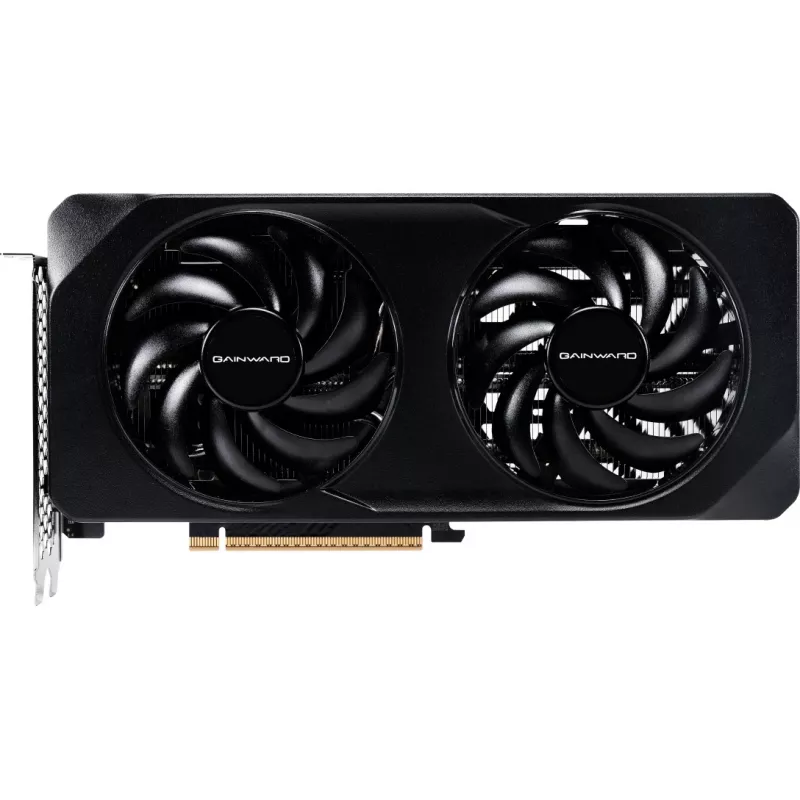

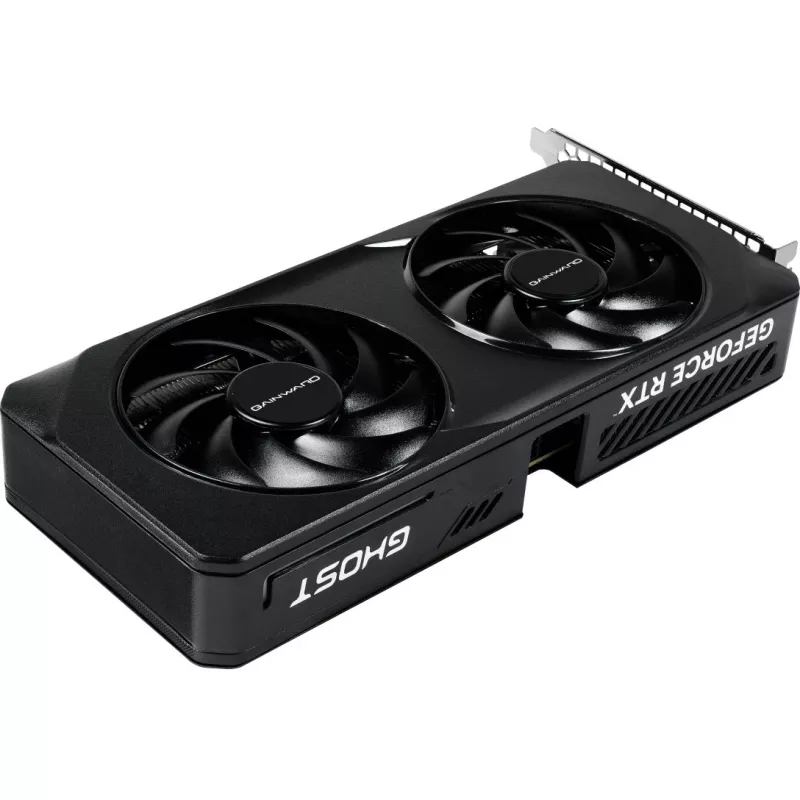

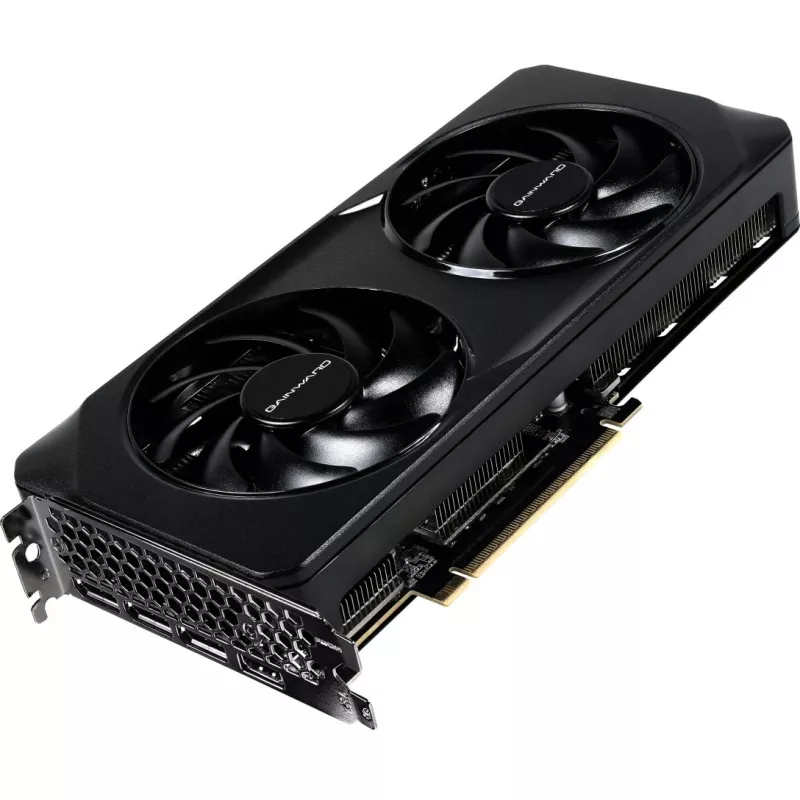

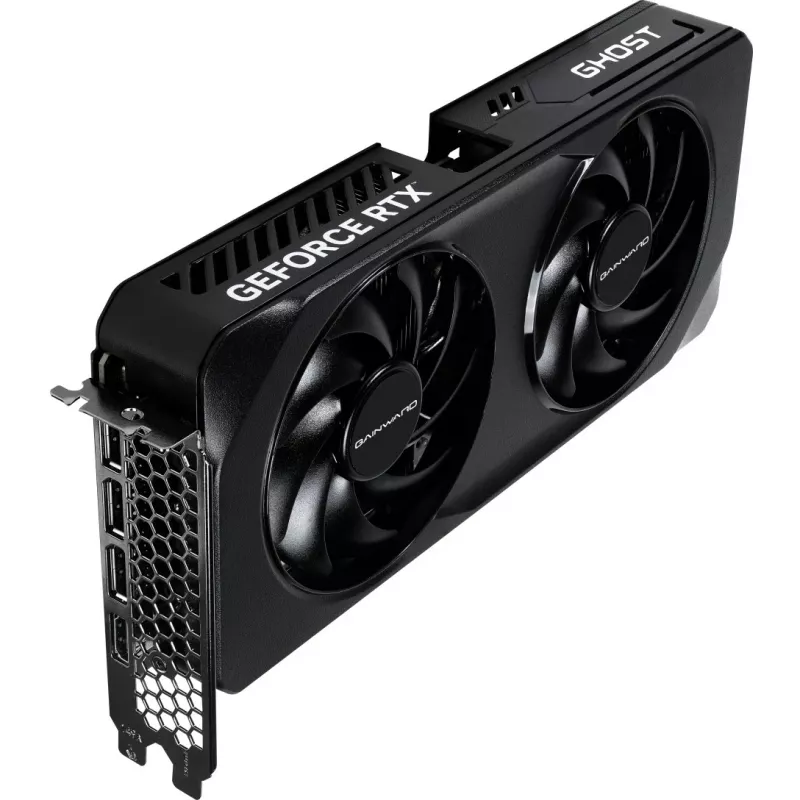

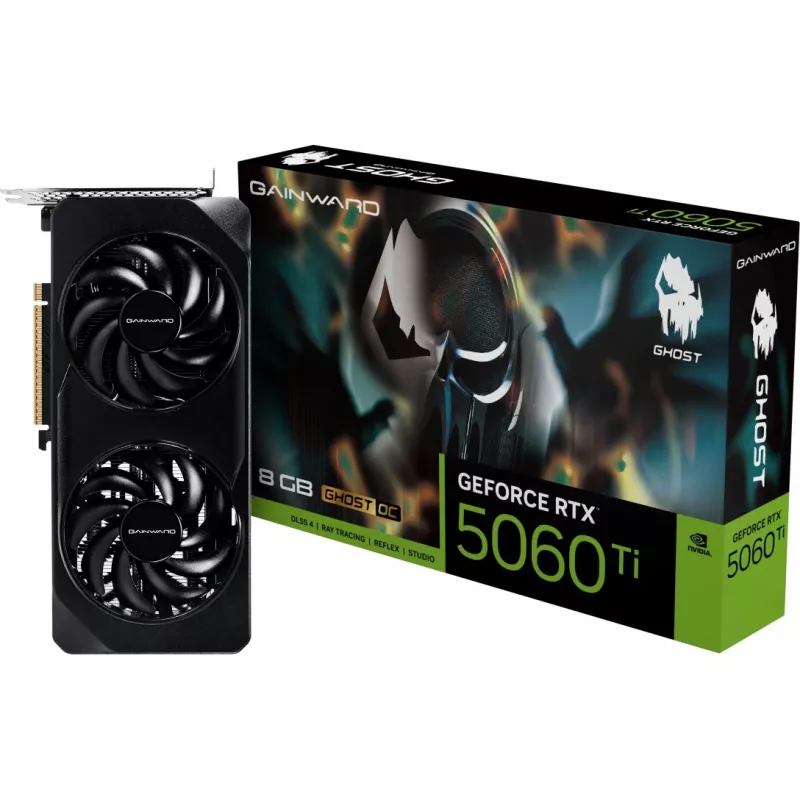

The Gainward GeForce RTX 5060 Ti Ghost OC is a mid-range discrete graphics card equipped with the NVIDIA GeForce RTX 5060 Ti GPU, 8 GB of GDDR7 memory on a 128-bit bus and PCI Express 5.0 interface. Housed in a compact black shroud with subtle side RGB lighting and an active dual-fan cooling system, the card supports up to 7680×4320 resolution and is compatible with DirectX 12 Ultimate and OpenGL 4.6.

Advantages

The card combines a compact form factor with advanced cooling features including a Mega Copper Base that covers the GPU and DRAM for effective heat absorption, composite heat pipes with grooved and sintered-powder structures for efficient heat transfer, and reinforced fan blades for stable, low-noise operation. ZERO RPM FAN mode keeps the fans stopped during light workloads for silent operation while automatically engaging cooling under higher loads. Native support for NVIDIA technologies such as DLSS 4, RTX ray tracing, NVIDIA Reflex 2 and Studio optimizations provides improved performance, reduced latency and enhanced image quality in games and creative applications.

Suitable for

• 1080p and 1440p gaming with high-quality settings
• Content creation workflows: video editing and 3D rendering
• High-resolution displays up to 7680×4320 for multimedia and productivity
• Systems requiring PCIe 5.0 compatibility

Key specifications

• GPU: NVIDIA GeForce RTX 5060 Ti
• Video memory: 8 GB GDDR7 on a 128-bit memory bus (effective 14,000 MHz)
• GPU base frequency: 2407 MHz
• Interface: PCI Express 5.0
• Maximum supported resolution: 7680×4320

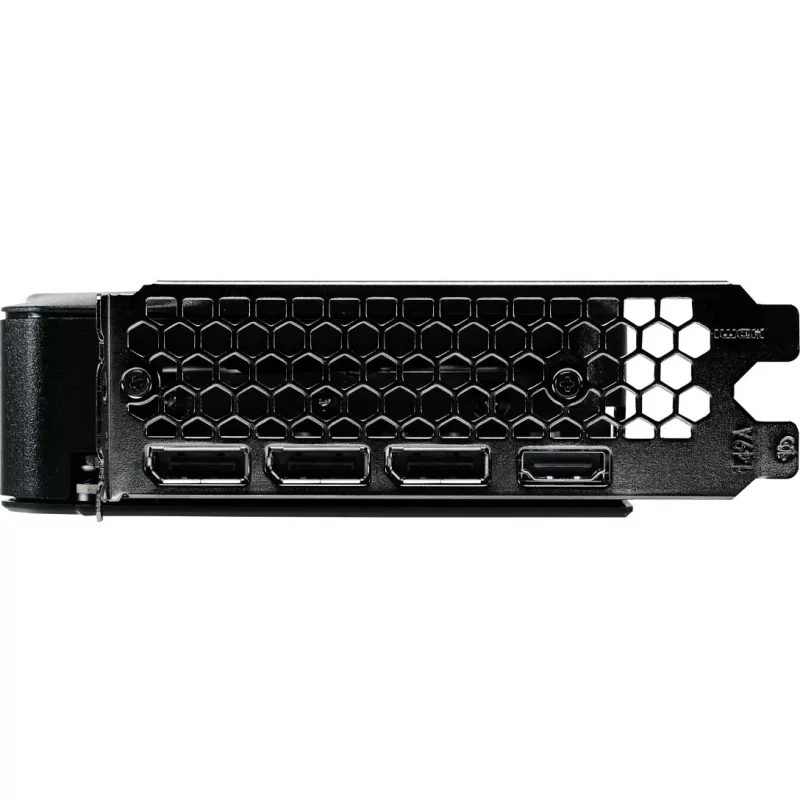

• Display outputs: 1 × HDMI, 3 × DisplayPort
• DirectX: 12 Ultimate; OpenGL: 4.6
• Power connector: 1 × 8-pin

How to use

Install the Gainward GeForce RTX 5060 Ti Ghost OC into an available PCI Express x16 slot on a compatible motherboard and secure it to the case. Connect the required 8-pin power connector from the power supply. Install or update the official NVIDIA drivers to enable full feature support including DLSS 4, ray tracing and Reflex. Configure display connections via the HDMI or DisplayPort outputs and adjust GPU settings in the driver control panel or third-party utilities as needed for performance or quiet operation.

Recommendations

For optimal thermal performance, ensure adequate case airflow and place the card in a chassis with sufficient clearance for the dual-fan cooler. Keep drivers up to date and enable ZERO RPM FAN for quieter light-duty use; increase fan/thermal profiles only when sustained heavy workloads require additional cooling.
