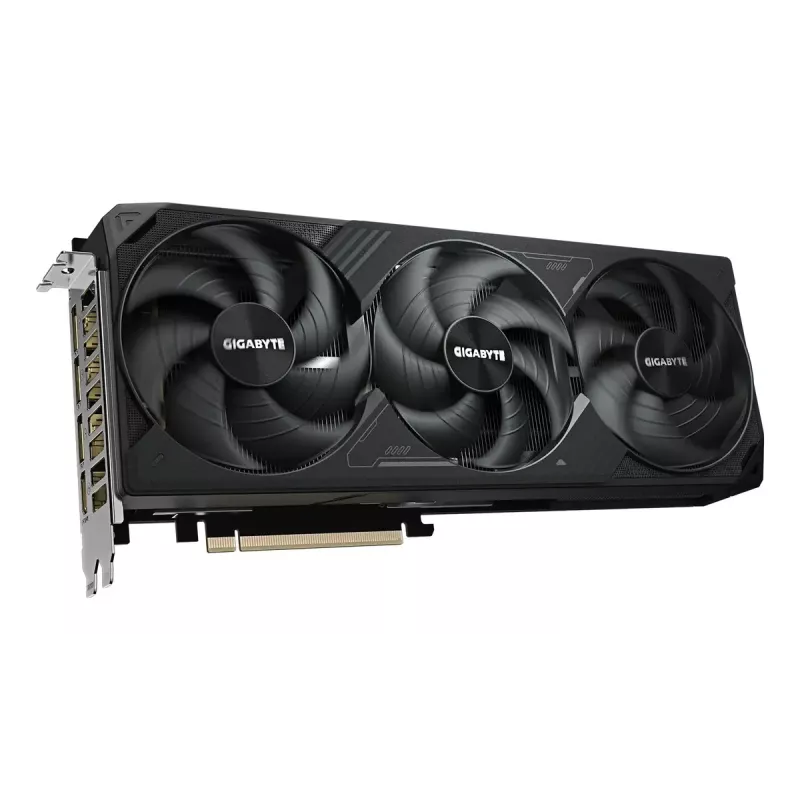

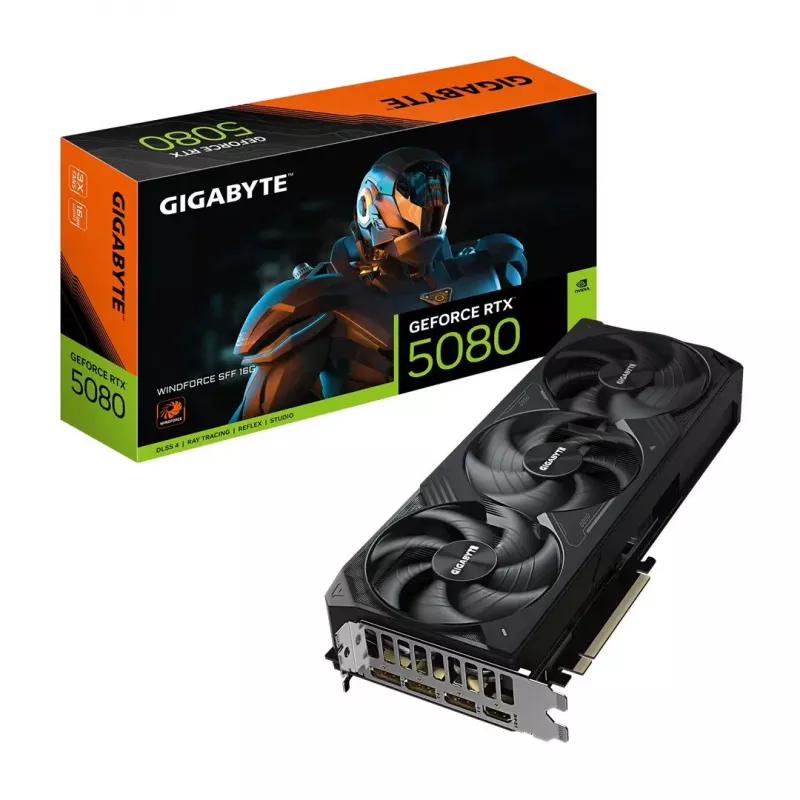

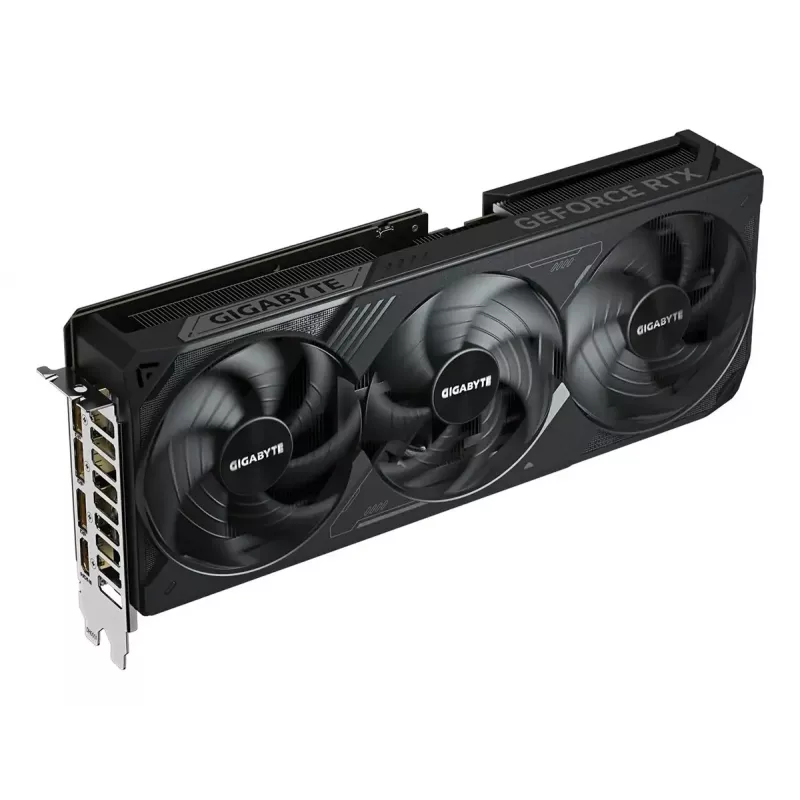

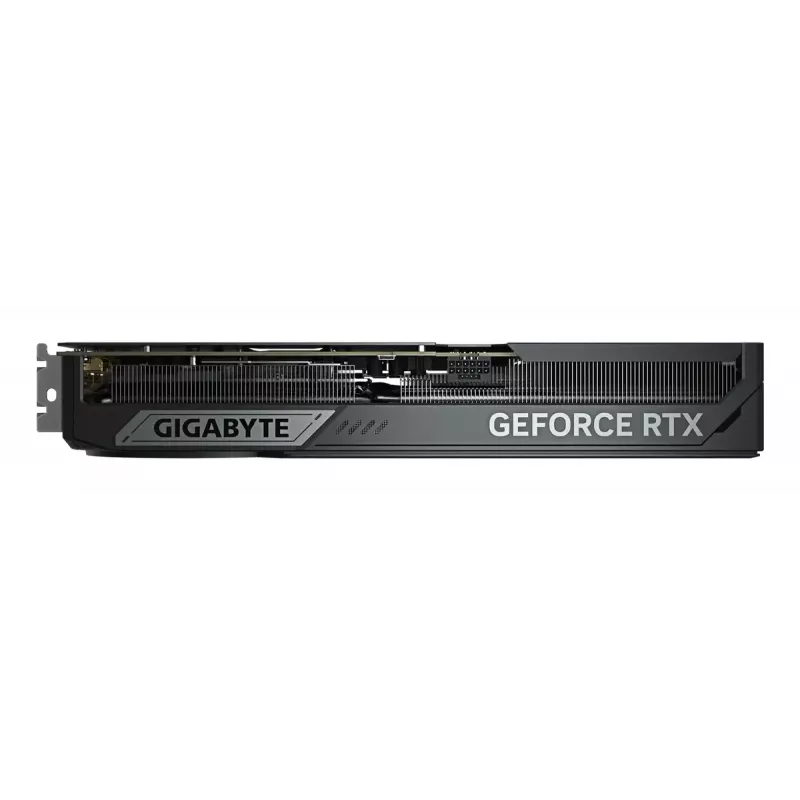

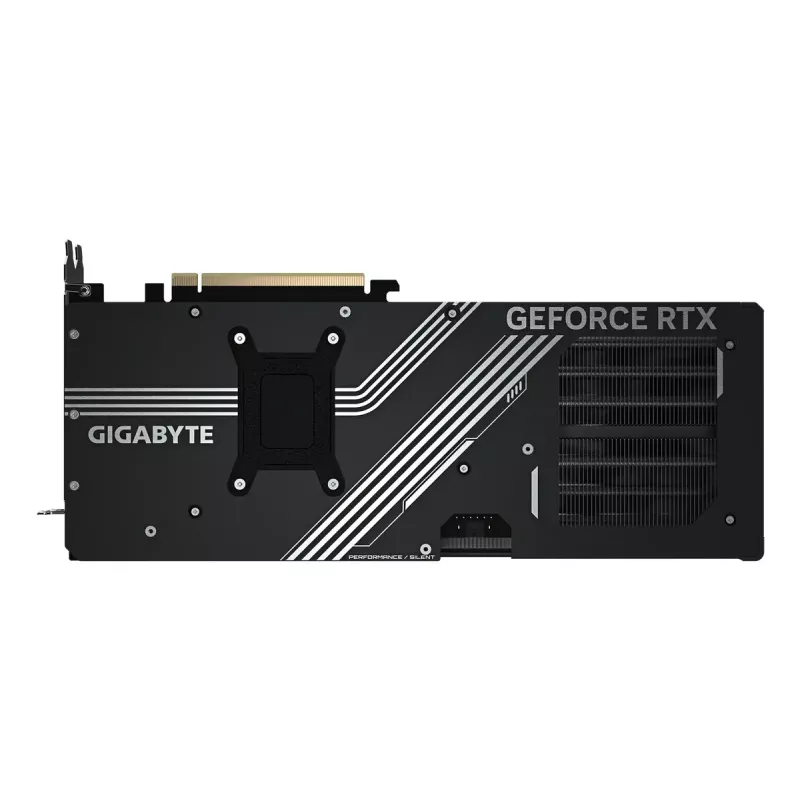

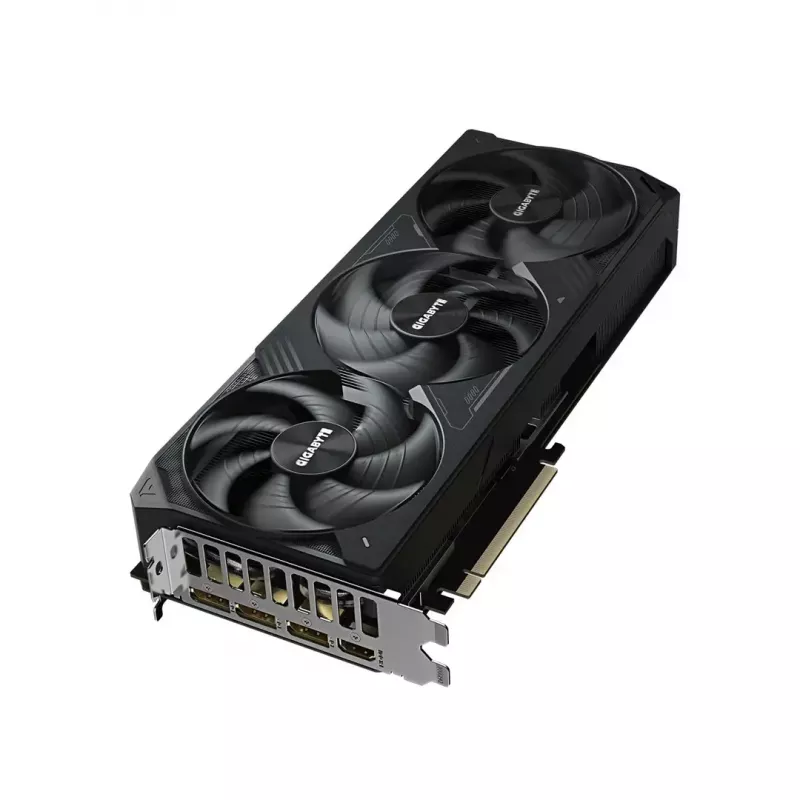

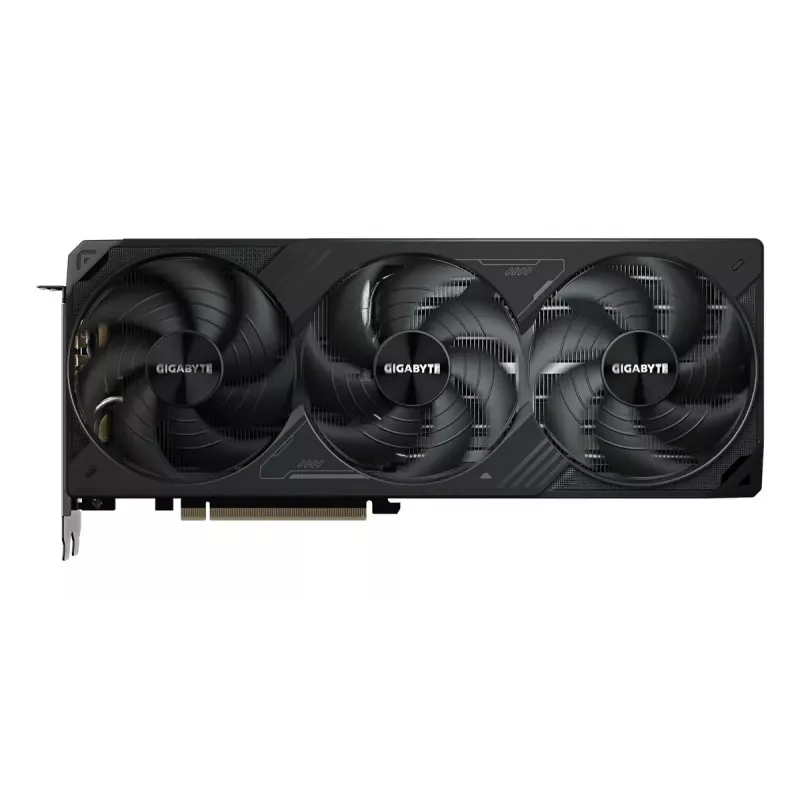

Tarjeta gráfica GIGABYTE GeForce RTX 5080 16GB GDDR7, PCIe 5.0, 256-bit, 304mm, WINDFORCE 3X

GIGABYTE GeForce RTX 5080 is a discrete graphics card with a 16 GB GDDR7 memory subsystem and a 256-bit memory bus. The GPU runs at 2617 MHz and the effective memory clock is 28,000 MHz, providing a maximum supported resolution of 7680 x 4320 pixels and support for up to four displays. The card uses a PCI Express 5.0 interface and offers three DisplayPort 2.1b outputs plus one HDMI 2.1b. The cooler is an active WINDFORCE 3X design with three fans in a full-height, full-length 304 mm form factor. System requirements include a minimum 850 W power supply and a single 16-pin auxiliary power connector. Manufacturer warranty is 3 years.

Advantages

The graphics card combines the NVIDIA GeForce RTX 5080 GPU with 16 GB of fast GDDR7 memory and a 256-bit bus for high-bandwidth data transfer. PCIe 5.0 support and modern display outputs (DisplayPort 2.1b and HDMI 2.1b) allow high-resolution and high-refresh-rate monitors. The WINDFORCE 3X active cooling with three fans and a compact full-height/full-length design supports efficient heat dissipation while remaining compatible with many small-form-factor builds. Included power cable and a three-year warranty simplify installation and provide coverage.

Suitable for

• High-resolution gaming and VR
• Content creation: video editing, 3D rendering and graphics work
• Multi-monitor workstations and productivity setups
• Applications using CUDA acceleration

Key specifications

• GPU: NVIDIA GeForce RTX 5080, GPU frequency 2617 MHz
• Video memory: 16 GB GDDR7, memory clock 28,000 MHz (effective), 256-bit memory bus
• Maximum resolution: 7680 x 4320 pixels; up to 4 displays
• Interface: PCI Express 5.0

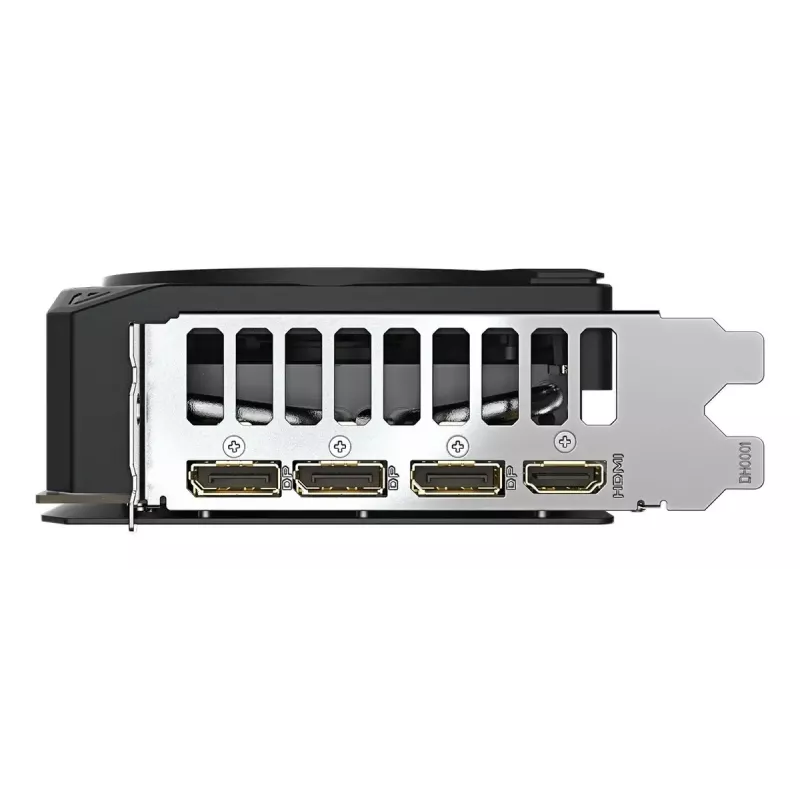

• Display outputs: 3 × DisplayPort 2.1b, 1 × HDMI 2.1b
• Cooling: Active WINDFORCE 3X with 3 fans
• Power: requires one 16-pin supplementary connector; recommended PSU 850 W minimum
• Form factor and dimensions: Full-Height/Full-Length, length 304 mm, height 126 mm, depth 50 mm; occupies 2.5 expansion slots
• DirectX 12.0 and OpenGL 4.6 support; NVIDIA G-SYNC compatible
• Weight: 2 kg; warranty: 3 years

How to use

Install the card into a PCI Express 5.0 x16 slot on a compatible motherboard, secure it to the case, and connect the supplied power cable to the 16-pin auxiliary connector. Ensure the system power supply meets or exceeds the 850 W recommendation and that the case supports the 304 mm card length and 2.5-slot thickness. Connect displays to the DisplayPort or HDMI outputs and install the latest NVIDIA drivers from the manufacturer to enable full functionality and CUDA acceleration.

Recommendations

For optimal cooling and stable performance, use a case with good airflow, keep GPU drivers up to date, and pair the card with a sufficiently powerful CPU and at least 16 GB of system RAM for demanding gaming and content-creation tasks.
