Tarjeta gráfica Inno3D GeForce RTX 5060 8GB GDDR7 PCIe 5.0, 2527 MHz Boost, 128-Bit, 2-Slot, 3x DP 2.1b + 1x HDMI 2.1b

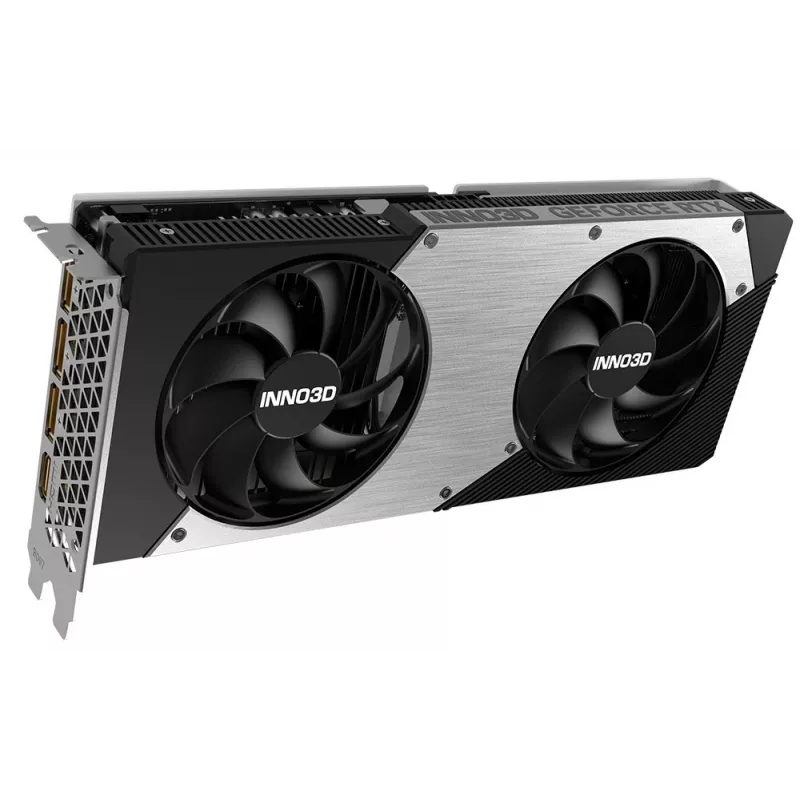

Inno3D GeForce RTX 5060 is a discrete graphics card based on the NVIDIA GeForce RTX 5060 GPU. It features 8 GB of GDDR7 memory on a 128-bit bus, a base clock of 2280 MHz and a boost clock up to 2527 MHz. The card has 3840 CUDA cores, a maximum memory bandwidth of 448 GB/s and supports up to four displays through three DisplayPort 2.1b ports and one HDMI 2.1b port. The design occupies two expansion slots, uses active cooling with two 88 mm fans, and is compatible with PCI Express 5.0-equipped systems. Compact dimensions and SFF readiness make it suitable for smaller builds.

Advantages

The graphics card combines a modern GPU architecture with fast GDDR7 memory for improved throughput, a high boost clock for increased single-threaded performance, and support for the latest display standards including DisplayPort 2.1b and HDMI 2.1b. Its dual-fan active cooling and 2-slot profile balance cooling efficiency and compact size, while PCIe 5.0 compatibility and support for NVIDIA G-SYNC, DirectX 12 Ultimate and OpenGL 4.6 ensure broad software and display feature support.

Suitable for

• Gaming at mainstream to high settings on 1080p and some 1440p titles
• Content creation tasks that benefit from CUDA acceleration
• Multi-monitor setups and high-resolution displays up to 7680 x 4320
• Compact or SFF PC builds requiring a 2-slot card

Key specifications

• GPU: NVIDIA GeForce RTX 5060
• CUDA cores: 3840
• Base clock: 2280 MHz; Boost clock: up to 2527 MHz
• Memory: 8 GB GDDR7, 128-bit bus, 28 Gbit/s data rate, up to 448 GB/s bandwidth
• Display outputs: 3× DisplayPort 2.1b, 1× HDMI 2.1b; maximum resolution 7680 × 4320
• Interface: PCI Express 5.0
• Cooling: Active, 2 fans (88 mm each), 2-slot design
• Minimum system PSU requirement: 550 W; supplementary power: 1× 8-pin connector
• Supported APIs and features: DirectX 12 Ultimate, OpenGL 4.6, NVIDIA G-SYNC, HDCP 2.3, NVIDIA Ansel
• Card dimensions (L×H×D): 250 mm × 116 mm × 41 mm

How to use

Install the card into a PCI Express 5.0 x16 slot or a compatible PCIe slot on the motherboard and secure it to the case using the expansion slot bracket. Connect one 8-pin PCIe power connector from a power supply with at least 550 W capacity. Attach display cables to the available DisplayPort 2.1b or HDMI 2.1b outputs. Install the latest NVIDIA drivers for Windows, Linux or FreeBSD as required to enable full functionality and performance features.

Recommendations

Ensure adequate case airflow for the dual-fan cooler, verify your PSU has the required 8-pin connector and capacity, and use up-to-date graphics drivers to maintain stability and access features such as G-SYNC and DirectX 12 Ultimate.
