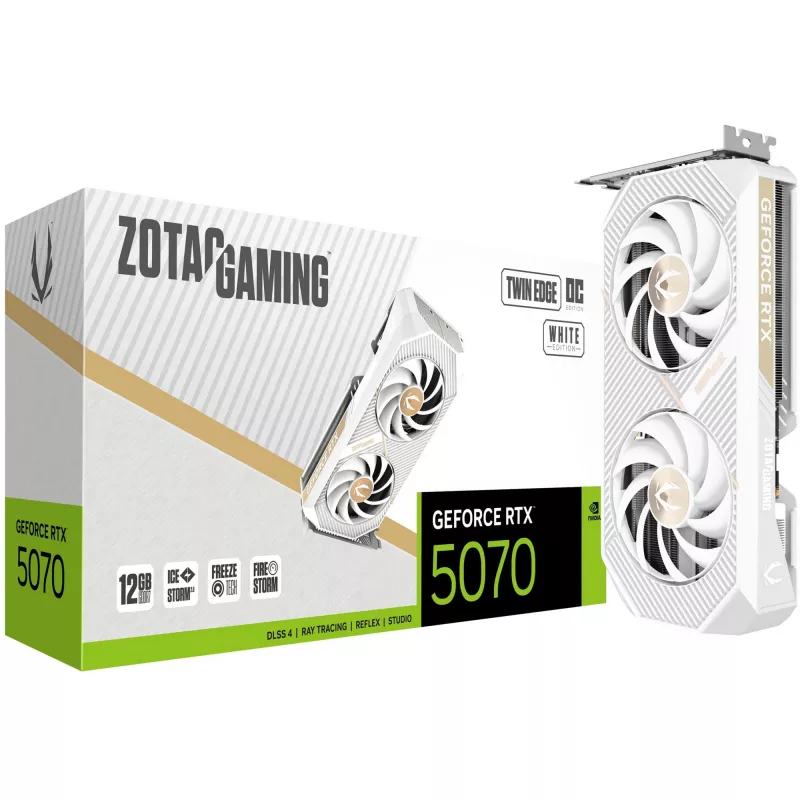

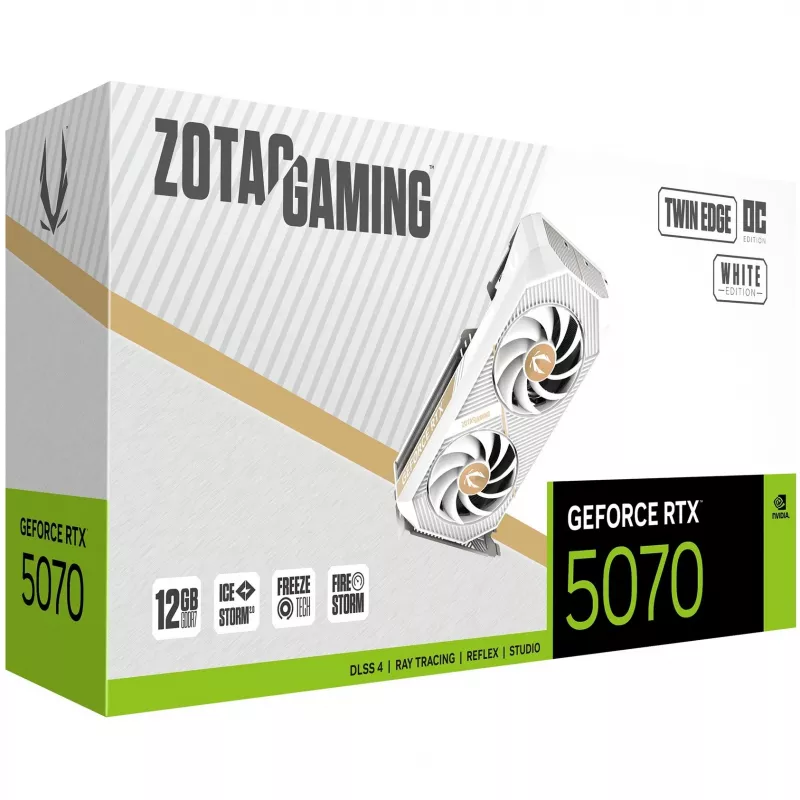

Tarjeta gráfica Zotac GAMING GeForce RTX 5070 Twin Edge OC 12GB GDDR7

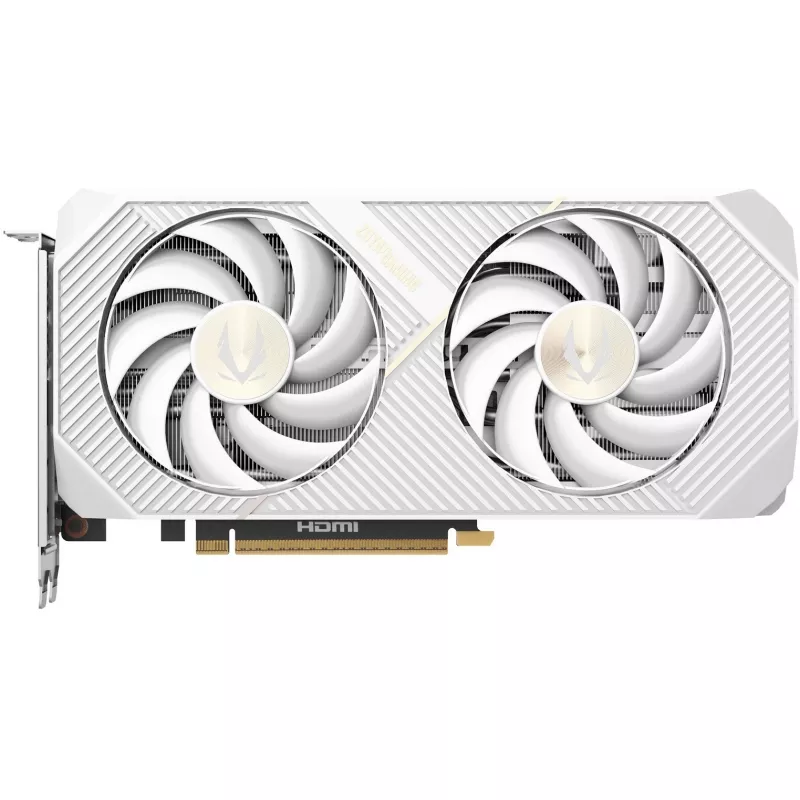

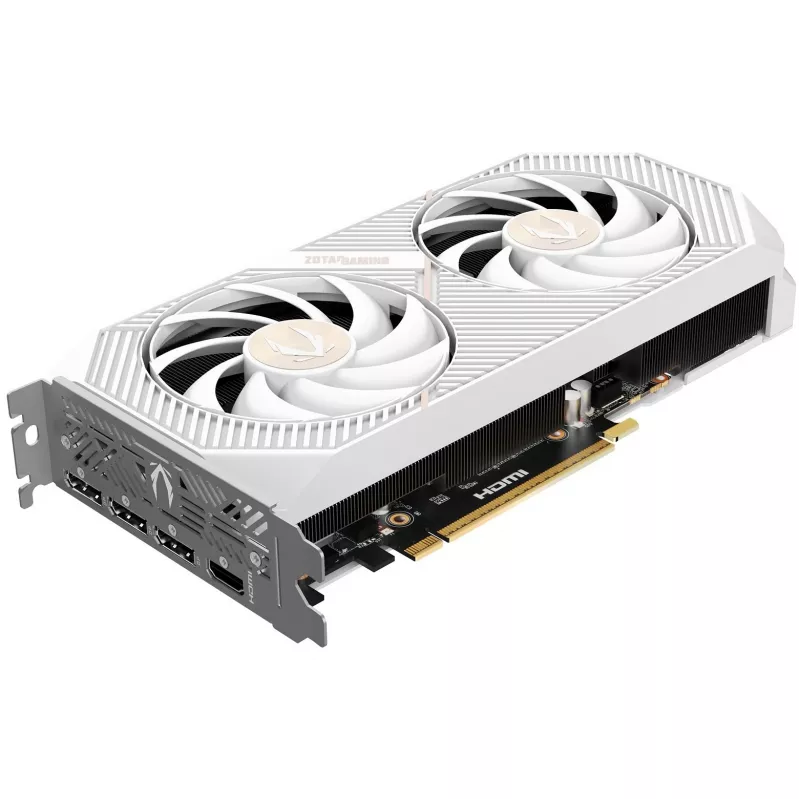

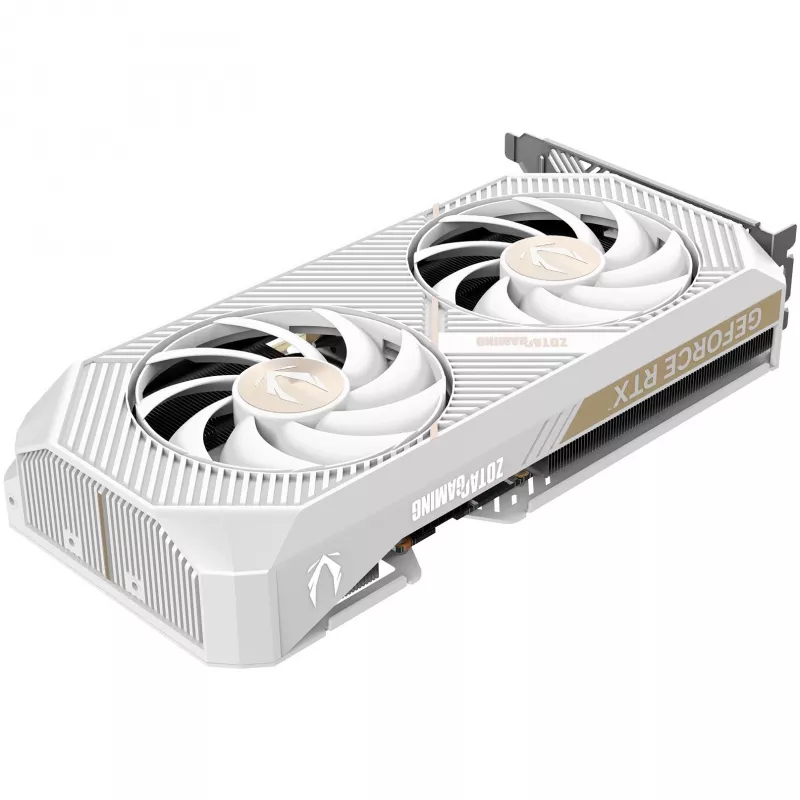

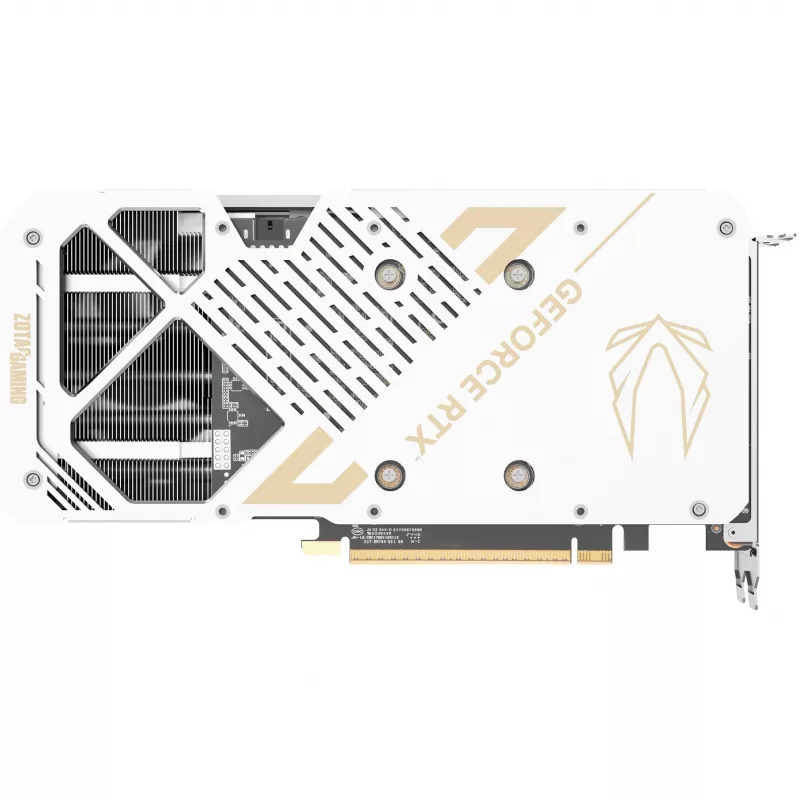

The ZOTAC GAMING GeForce RTX 5070 Twin Edge OC White Edition is a compact dual-fan graphics card based on NVIDIA Blackwell architecture with DLSS 4 and 12 GB of GDDR7 memory. Designed for small-form-factor builds, this SFF-ready GeForce card delivers modern ray tracing, AI-accelerated features, and practical cooling and tuning options for both gaming and creative workloads.

Advantages

The card combines high-performance GPU cores, advanced AI and ray tracing support, and a compact dual-fan form factor suitable for tighter PC cases. It provides hardware-accelerated features such as DLSS 4, NVIDIA Reflex 2, and NVENC for faster gameplay responsiveness, improved image quality, and accelerated video encoding. The FireStorm utility enables user control over clock speeds, fan curves, voltages and SPECTRA RGB lighting.

Key specifications

• GPU: NVIDIA GeForce RTX 5070
• Memory: 12 GB GDDR7
• Architecture: NVIDIA Blackwell
• Cooling: IceStorm 2.0 with BladeLink Fans and FREEZE Fan Stop
• Form factor: Compact dual-fan, SFF-ready Enthusiast GeForce Card

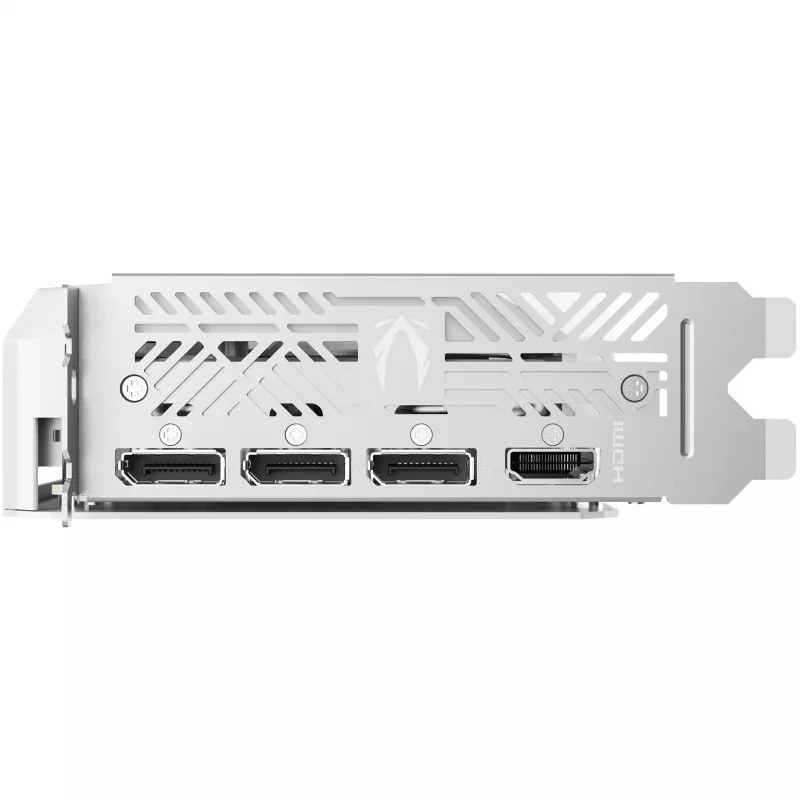

• Outputs: 1 × HDMI, 3 × DisplayPort
• Bus: PCI Express x16 5.0
• Memory interface: 192-bit
• Memory bandwidth: 28 Gbit/s
• Maximum resolution: 7680 × 4320
• Power connector: 1 × 16-pin
• API support: DirectX 12 Ultimate, OpenGL 4.6

How to use

Install the graphics card into an available PCIe x16 slot on a compatible motherboard and secure it in the case, taking into account the compact dual-fan dimensions for SFF builds. Connect the required 16-pin power connector from a sufficient-capacity PSU. Install the latest NVIDIA drivers or use the NVIDIA App to keep drivers and software up to date. Use the ZOTAC FireStorm utility to adjust clock speeds, fan profiles, voltages and RGB settings as needed for your workload.

Recommendations

Choose a power supply with adequate wattage and a compatible 16-pin cable, verify case compatibility for SFF-Ready cards, and keep drivers and FireStorm software updated. For low-noise operation, configure fan curves conservatively; for maximum performance, ensure proper case airflow and monitor temperatures when overclocking.
