Tarjeta PCI Express x16 DeLOCK 90566 NVMe M.2 Key M

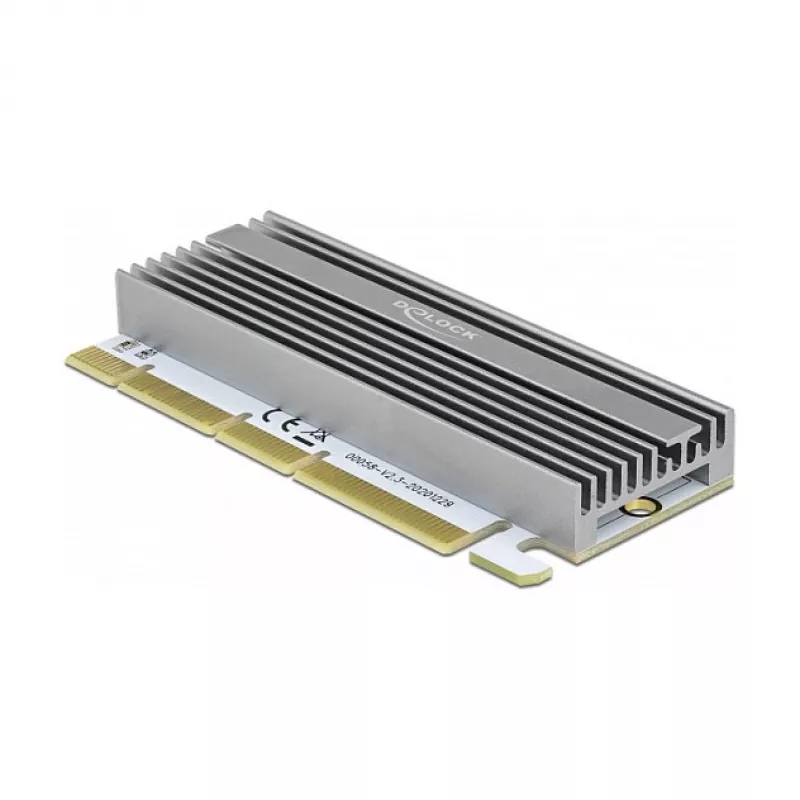

This Delock PCI Express x16 card adds one M.2 NVMe Key M slot to a PC, supporting M.2 modules in 2280, 2260, 2242 or 2230 sizes. The card fits into PCIe x1, x4, x8 or x16 slots and can be installed without removing the slot bracket. Its compact dimensions (44 mm width, 98 mm depth, 5 mm height) make it suitable for many systems while providing an internal M.2 connection for expanding storage.

Advantages

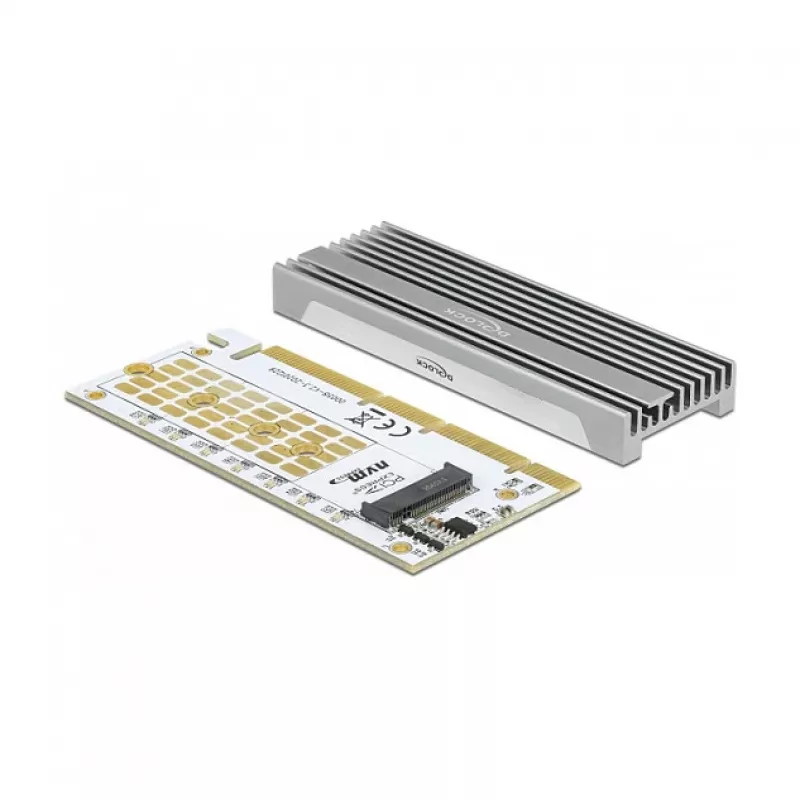

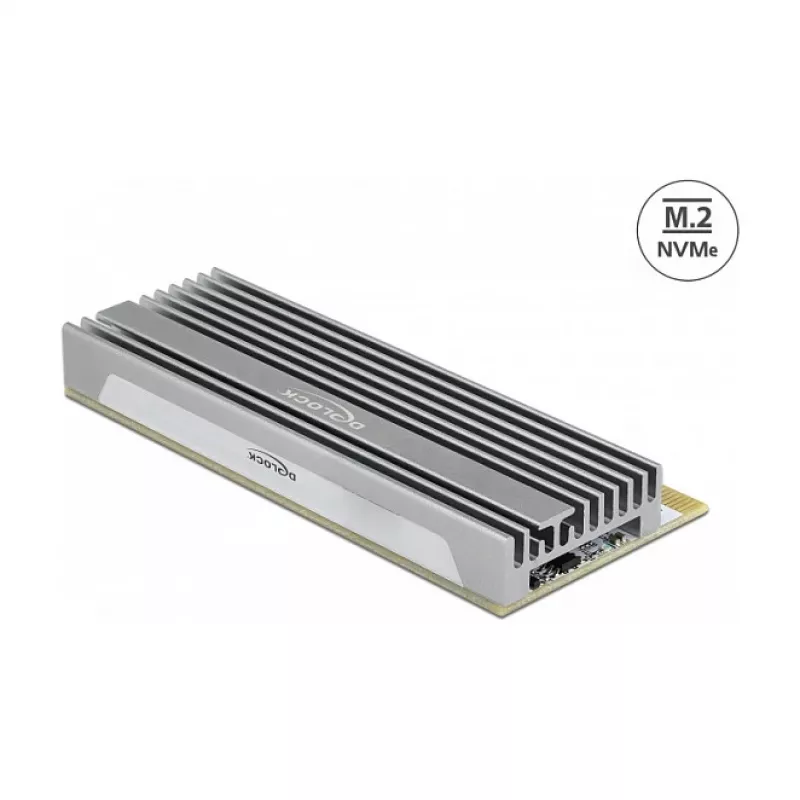

The card supports NVMe M.2 Key M drives and works in multiple PCIe slot widths (x1/x4/x8/x16). A large passive heat sink ensures cooling of the installed M.2 module, and integrated RGB LED illumination with seven LEDs provides internal case lighting with automatic colour gradients. The product is compact, grey-coloured, and intended for internal installation.

Suitable for

Key specifications

How to use

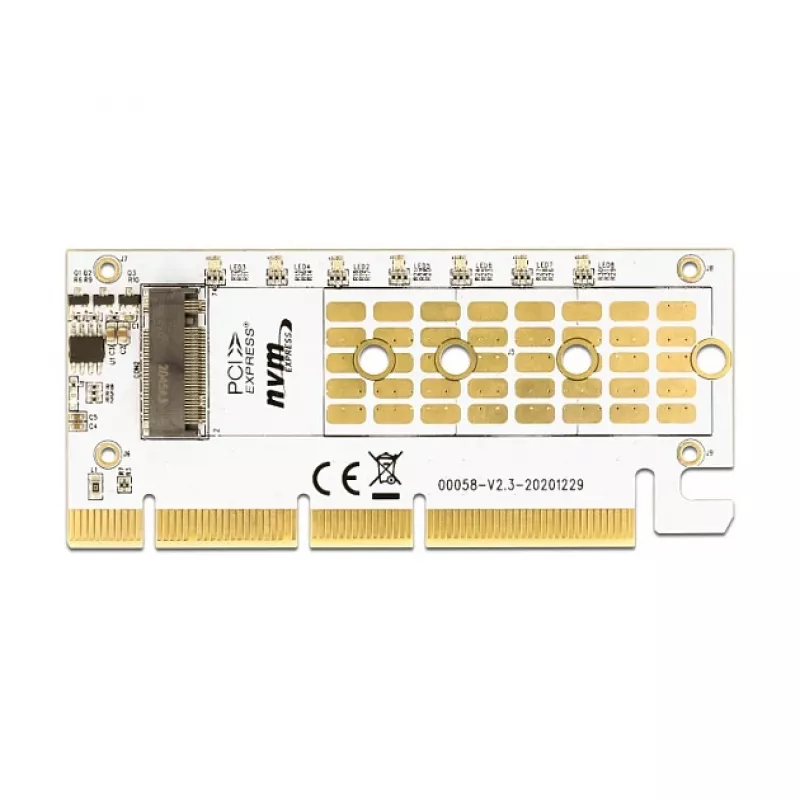

Insert the M.2 NVMe Key M module (size 2280, 2260, 2242 or 2230) into the M.2 slot on the card and secure it according to the card’s mounting point. Install the PCIe card into an available PCIe slot (x1, x4, x8 or x16) on the motherboard; the slot bracket can remain in place during installation. Ensure the card is firmly seated and reconnect power and data cables as required by your system. After powering on, verify the SSD is recognised in the operating system and, if necessary, initialise and format the drive.

Recommendations

Use a compatible NVMe M.2 Key M SSD within the supported lengths (2280/2260/2242/2230) and ensure adequate case airflow in addition to the passive heat sink. Update motherboard BIOS and NVMe drivers if an installed SSD is not detected. Avoid inserting or removing M.2 modules while the system is powered.
