Tarjeta PCI Express x4 DeLOCK 90492 USB Type-C USB Type-A

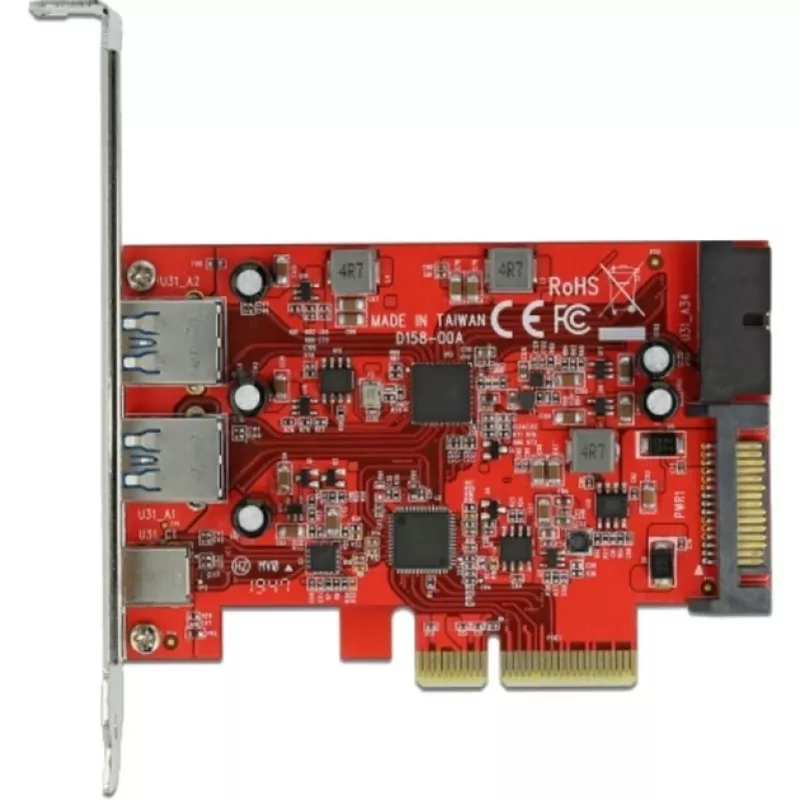

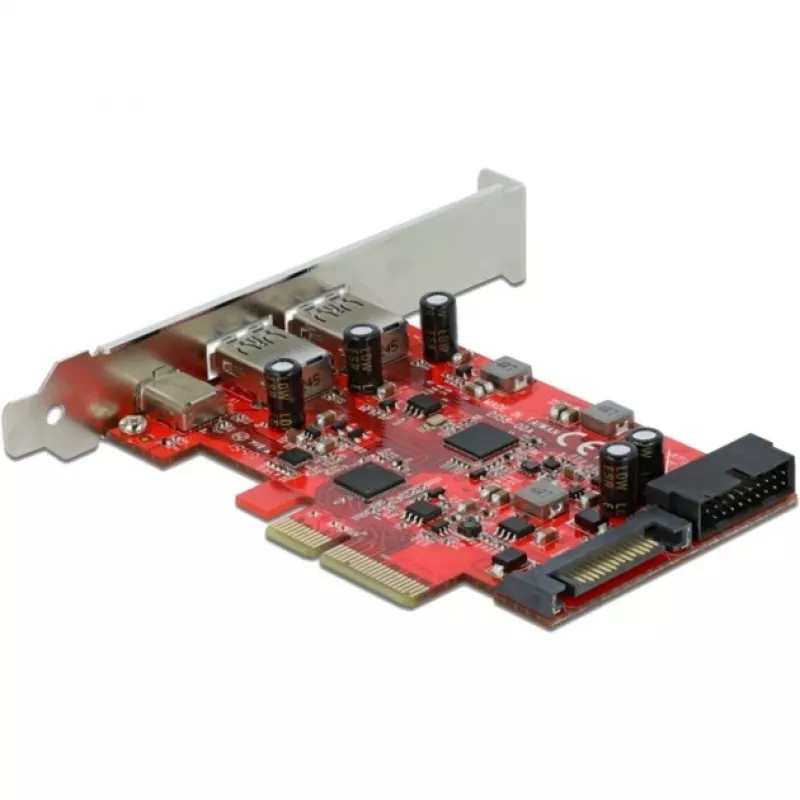

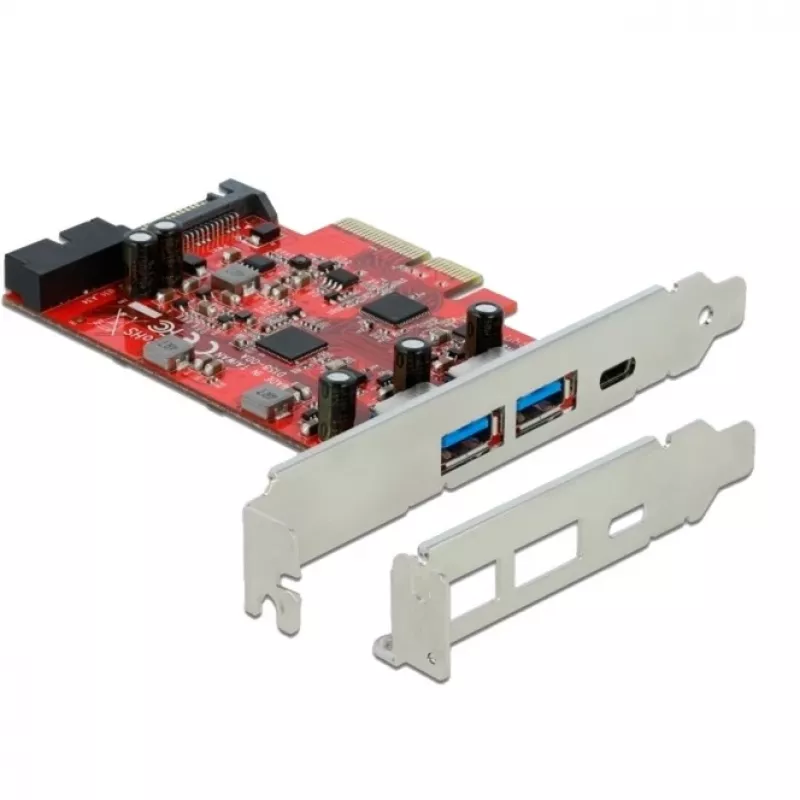

This PCI Express x4 card by DeLOCK provides additional USB connectivity for a PC, offering one external USB Type-C port, two external USB Type-A ports and one internal USB pin header. It supports PCIe 3.0 and is suitable for connecting docking stations, card readers, external enclosures and other USB devices that require high-speed transfers.

Advantages

The card delivers SuperSpeed USB transfer rates — up to 10 Gbps on the external ports and 5 Gbps on the internal pin header. It fits into a PCIe x4 slot and expands the system with both Type-C and Type-A external connectors, enabling connection of modern peripherals while maintaining backward compatibility with common USB devices.

Suitable for

• Connecting external storage enclosures and NVMe/SSD docking stations
• Attaching card readers and multimedia devices
• Adding additional USB ports for peripherals such as keyboards, mice and webcams
• Integrating internal USB headers for front-panel connectors or internal devices

Key specifications

• Brand: DELOCK
• Model / MPN: 90492
• Interface: PCIe x4 (PCIe 3.0 compatible)
• External ports: 1 × USB Type-C (10 Gbps), 2 × USB Type-A (10 Gbps)
• Internal header: 1 × USB pin header (5 Gbps)
• Data rates: External ports up to 10 Gbps, internal header up to 5 Gbps
• Compatible OS: Windows 10, Windows 8.1
• EAN: 4043619904921

How to use

Power off the PC and insert the card into an available PCIe x4 (or larger) slot on the motherboard. Secure the card to the case with the bracket screw, reconnect power and boot the system. Install any required drivers on supported operating systems (Windows 10 / 8.1) if they are not automatically detected. Connect external USB devices to the Type-C or Type-A ports and internal devices or front-panel connectors to the internal 5 Gbps pin header.

Recommendations

For best performance, connect high-bandwidth devices (e.g., external SSDs or docking stations) to the external 10 Gbps ports. Ensure the card is seated in a PCIe 3.0-compatible slot and that system drivers are up to date. When using the internal header, use compatible internal cables and front-panel modules rated for SuperSpeed USB to achieve up to 5 Gbps.
