Tarjetas de interfaz/adaptadores DeLOCK MiniPCIe Half/Full

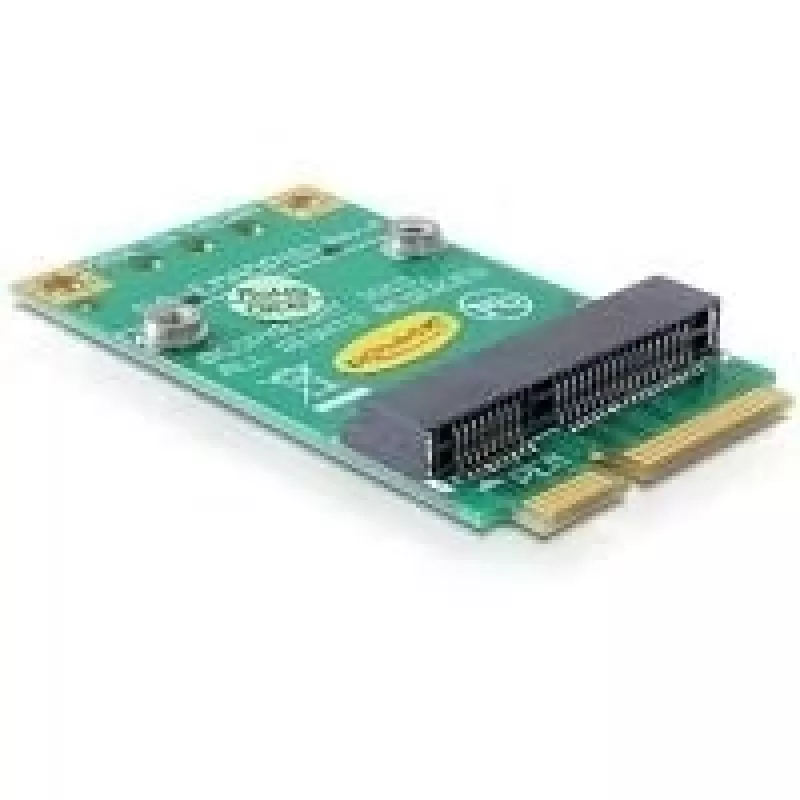

The DeLOCK MiniPCIe Half/Full interface adapter converts a half-size Mini PCI Express card to a full-size form factor, allowing installation of half-size cards in full-size slots. It is compact (51 mm × 30 mm × 5 mm) and available in black and green. The adapter provides a reliable wired connection and is suitable for space-constrained installations where a half-size Mini PCIe module needs to be used in a full-size slot.

Advantages

The adapter offers a straightforward conversion from half-size to full-size Mini PCI Express, preserving signal integrity for wired connections. Its small dimensions enable installation in tight spaces, and the two available colours allow basic visual matching with system components. The design is simple and compatible with standard Mini PCIe card form factors.

Suitable for

• Installing a half-size Mini PCIe card into a full-size Mini PCIe slot
• Compact systems with limited internal space
• Embedded or industrial motherboards requiring wired Mini PCIe modules

Key specifications

• Dimensions: 51 mm (W) × 30 mm (D) × 5 mm (H)
• Interface: Mini PCI Express (half to full size adapter)
• Connection: Wired
• Colours: Black, Green
• Brand: DELOCK
• MPN: 65229
• EAN: 4014619234974

How to use

Align the half-size Mini PCIe card with the adapter connector and insert it according to the card’s edge connector orientation. Secure the card and adapter in the host system’s full-size Mini PCIe slot following the system manufacturer’s instructions for mounting and grounding. Ensure the system is powered off before installation and verify the card is fully seated before powering on.

Recommendations

Handle the adapter and Mini PCIe card using anti-static precautions. Confirm mechanical clearance in the target system and avoid forcing the card into the slot. Use the adapter in environments that match the specifications of the Mini PCIe card and the host system.
