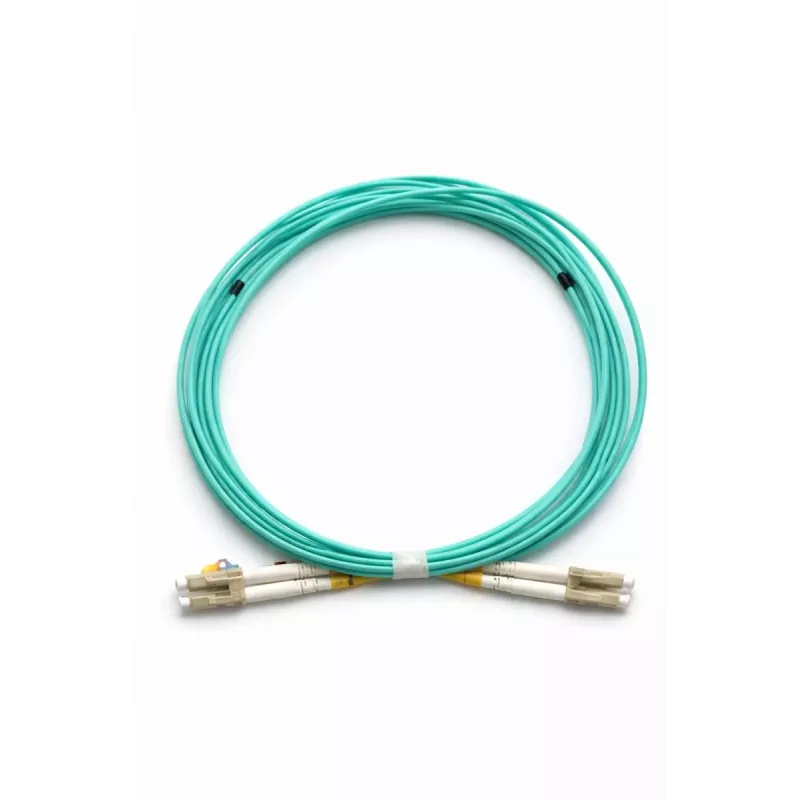

TB Cable óptico latiguillo LC-LC OM4 dúplex 3m

The TB Optical Patchcord LC-LC OM4 Duplex 3m is a high-performance fiber optic cable designed for reliable data transmission in demanding network environments. Engineered with OM4 multimode fiber, it supports high-bandwidth applications up to 100 Gigabit Ethernet, making it ideal for data centers, enterprise networks, and telecommunications infrastructure.

Advantages

This patchcord offers exceptional signal integrity with low insertion loss (≤0.3 dB) and high return loss (≥30 dB), ensuring minimal signal degradation. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in confined spaces, reducing toxic fumes and smoke in case of fire. The duplex design allows for simultaneous bidirectional communication, and the aqua jacket color enables easy identification of OM4 fiber.

Suitable for

• Data centers requiring high-speed connectivity (10GbE, 40GbE, 100GbE)
• Enterprise network infrastructure
• Telecommunications and server rooms
• High-bandwidth applications with OM4 multimode fiber

Key specifications

• Connector Type: LC to LC
• Fiber Type: Multimode OM4
• Cable Length: 3 meters
• Cable Structure: Duplex
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Aqua
• Core Diameter: 50 µm
• Cladding Diameter: 125 µm
• Insertion Loss: ≤ 0.3 dB
• Return Loss: ≥ 30 dB
• Attenuation at 850nm: ≤ 2.3 dB/km
• Attenuation at 1300nm: ≤ 0.6 dB/km
• Bandwidth (EMB) at 850nm: 4700 MHz·km
• Bandwidth (EMB) at 1300nm: 500 MHz·km
• Operating Temperature: -20°C to 70°C
• Storage Temperature: -40°C to 85°C
• Minimum Bend Radius: 7.5 mm
• Application Support: 10 Gigabit Ethernet (10GbE), 40 Gigabit Ethernet (40GbE), 100 Gigabit Ethernet (100GbE)
• Standard Compliance: IEC 60793, IEC 60794, TIA/EIA-568-C.3, ISO/IEC 11801

Recommendations

For optimal performance, ensure proper handling and avoid sharp bends beyond the minimum bend radius. This patchcord is compatible with standard LC duplex ports and is recommended for use with OM4-rated transceivers and equipment.
