Tece Frame 9400412 con placa de accionamiento y junta para WC suspendido

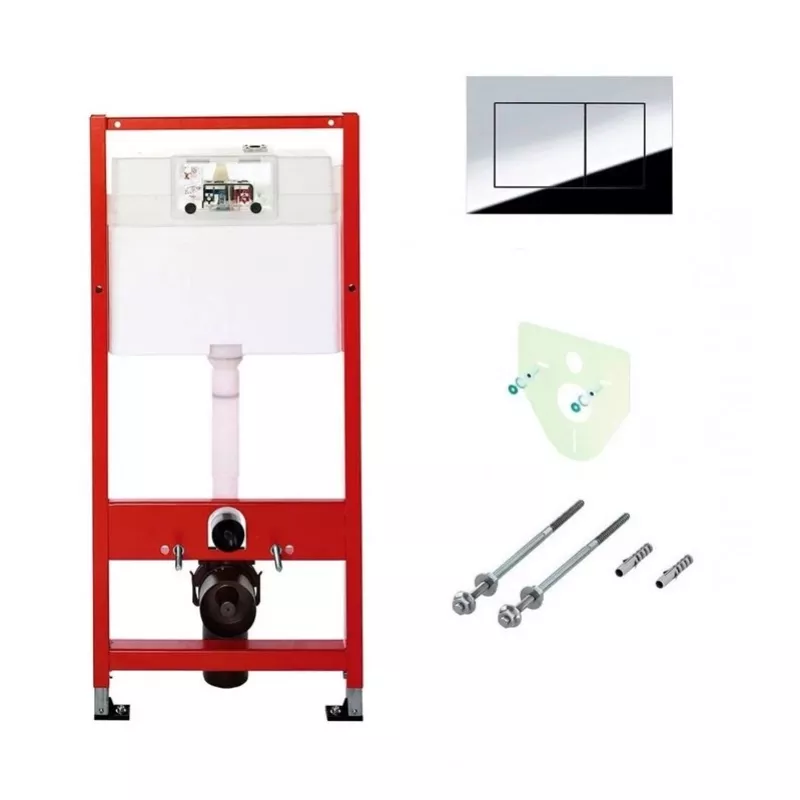

The Tece Frame 9400412 is a complete installation module for wall-hung toilets, including the frame, flush button kit, and seal. Designed for drywall or stud wall installation, this pre-assembled unit features a powder-coated steel frame with adjustable feet (0-200 mm) and a load capacity of up to 400 kg. It integrates a TECE Uni cistern with condensation insulation and a factory-set flush volume of 6/3 liters (full/half flush), adjustable to other volumes such as 4.5/3 L or 9/3 L. The water connection is 1/2" with top supply, and the drain bend diameter is DN 90/100 mm. Compatible with all TECE flush plates (sold separately), this module is CE and TÜV certified, ensuring reliable performance and sound insulation.

Advantages

Pre-assembled for quick installation; adjustable feet for flexible height; high load capacity; condensation-insulated cistern prevents moisture; compatible with a wide range of flush plates; certified quality.

Suitable for

• Wall-hung toilets in residential and commercial bathrooms
• Drywall or stud wall construction
• New builds and renovations

Key specifications

• Product Type: WC Installation Module / Toilet Frame System
• Cistern Type: TECE Uni Cistern
• Actuation Type: Front or Top
• Installation Height: 1120 mm
• Frame Material: Powder-coated steel
• Flush Volume (Factory Setting): 6/3 Liters (full/half flush)
• Adjustable Flush Volume: Yes (e.g., 4.5/3 L, 6/3 L, 9/3 L)
• Water Connection: 1/2"
• Cistern Insulation: Condensation-insulated
• Mounting Type: Drywall / Stud Wall Installation
• Load Capacity: Max. 400 kg
• WC Compatibility: For wall-hung WCs
• Drain Bend Diameter: DN 90/100 mm
• Adjustable Feet: Yes, 0-200 mm
• Water Supply Connection: Top
• Sound Insulation: Yes (integrated)
• Corrosion Protection: Yes (powder-coated frame)
• Flush Plate Compatibility: Compatible with all TECE flush plates (sold separately)
• Certification: CE, TÜV
• Pre-assembled: Yes, fully pre-assembled unit

Recommendations

For a complete installation, pair this frame with a TECE flush plate of your choice and a wall-hung WC. Ensure proper wall support for the load capacity.
