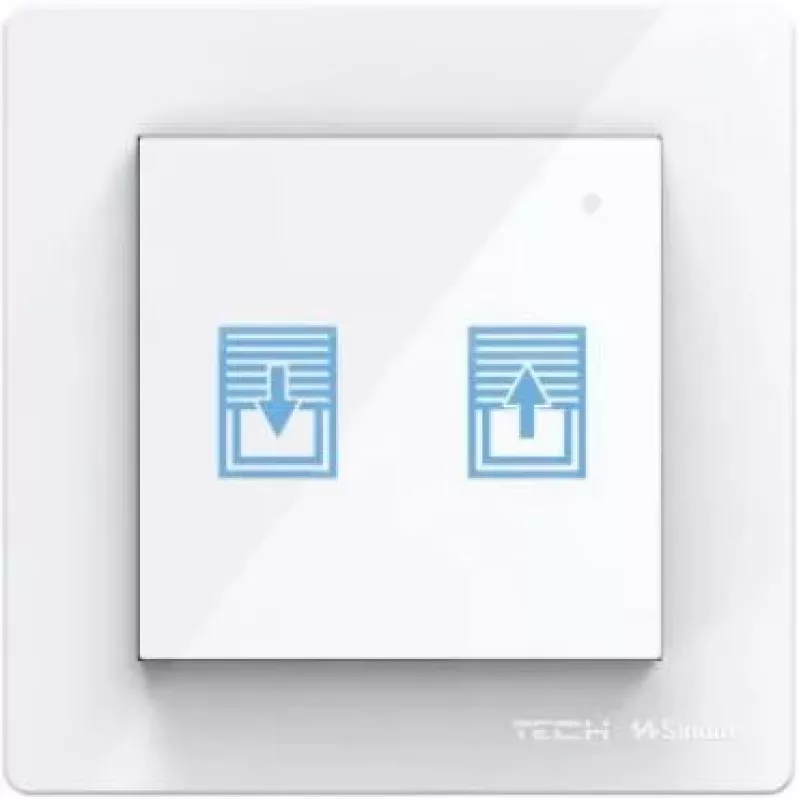

Tech Sterowniki FZ-02M Interruptor de persiana con cable (Blanco, 230V AC, 3A, Empotrable)

For dependable, direct control of motorized blinds, shutters, and awnings, the FZ-02M from Tech Sterowniki eliminates the complexity of wireless systems. This flush-mounted switch operates over a simple wired connection, requiring no hubs, batteries, or internet setup. It provides a tactile, always-ready interface that never suffers from signal dropouts or pairing issues.

Highlights

• Wired push-button control for roller shutters, blinds, and awnings
• Three dedicated buttons: Up, Stop, Down
• 230V AC, 50Hz supply with 3A / 700W switching capacity
• Flush-mounted for standard Ø60mm electrical boxes
• Screw terminal connections for secure wiring
• ABS plastic housing with IP20 rating
• CE certified for indoor use

In daily use

Each press of the switch sends a momentary command to the connected motor — Up to raise, Down to lower, and Stop to halt movement at any position. This simple, tactile interface proves especially useful in bedrooms, living rooms, or offices where quick adjustment of natural light is needed. The switch fits neatly into a standard wall box, keeping the installation tidy and unobtrusive.

Full specifications

• Brand: Tech Sterowniki
• Model: FZ-02M
• MPN: WG.23.0152
• EAN: 5902479666921
• Product type: Wired roller shutter switch
• Colour: White
• Mounting: Flush-mounted (in-wall)
• Power supply: 230V AC, 50Hz
• Max load current: 3A
• Max load power: 700W
• Output: Relay (momentary)
• Buttons: Up, Stop, Down
• Terminals: Screw terminals
• Front plate dimensions: 80 x 80 mm
• Installation depth: approx. 25-30 mm
• Operating temperature: 0 - 40°C
• Protection rating: IP20
• Material: ABS plastic
• Certifications: CE
• Application: Indoor use

Final note

With its straightforward wired operation and robust construction, the FZ-02M is a reliable choice for any room where manual shutter control is preferred.
