TECH Sterowniki PPZ-02m relé de persiana cableado, empotrable, blanco

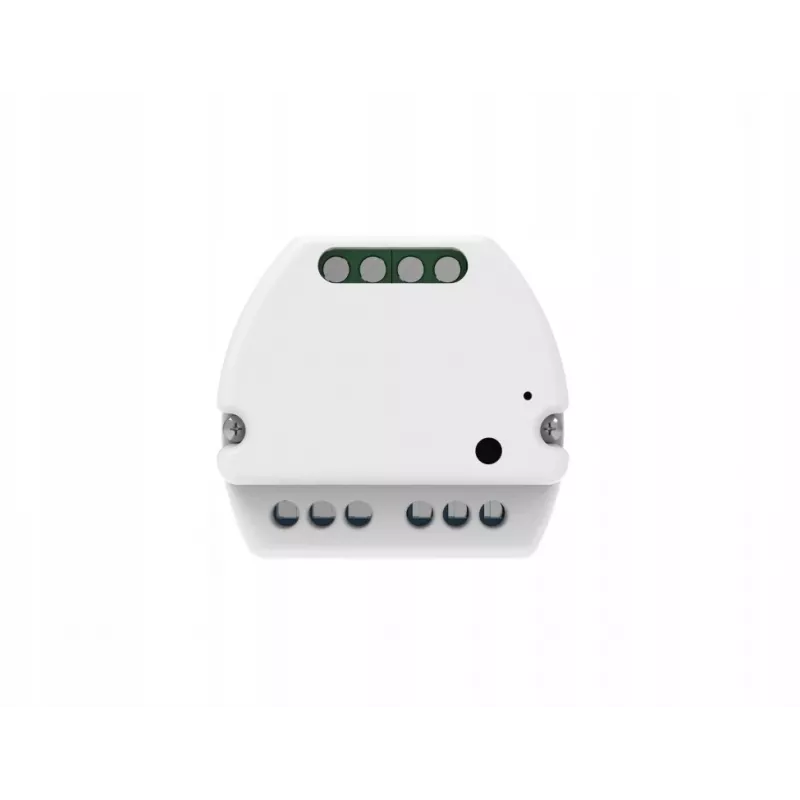

The TECH Sterowniki PPZ-02m is a professional-grade wired roller shutter relay designed for flush-mounted installation in standard Ø60mm electrical boxes. It enables precise control of roller shutters, awnings, and gates using momentary push buttons (Up/Down). The relay operates on 230V AC and supports motor loads up to 230W (1A), making it suitable for most residential and light commercial applications.

Advantages

Reliable and durable design with screw terminal connections for secure wiring. Low power consumption (<1W) and compact form factor allow easy integration into existing electrical installations. The white plastic housing blends seamlessly with standard wall boxes.

Suitable for

• Control of roller shutters, awnings, and gates
• Flush-mounted installations in Ø60mm electrical boxes
• Integration with standard momentary push button switches

Key specifications

• Product Type: Wired Roller Shutter Relay
• Installation: Flush-mounted (Ø60mm box)
• Power Supply: 230V AC, 50Hz
• Max Motor Load: 230W (1A)
• Output: 2x NO relay contacts
• Number of Channels: 1
• Operating Temperature: 0°C to 50°C
• Colour: White
• Housing Material: Plastic
• Protection Class: IP20
• Certifications: CE

Recommendations

For optimal performance, use with standard momentary push buttons and ensure proper wiring according to the manual. The relay is not suitable for direct connection to motors exceeding 230W.
