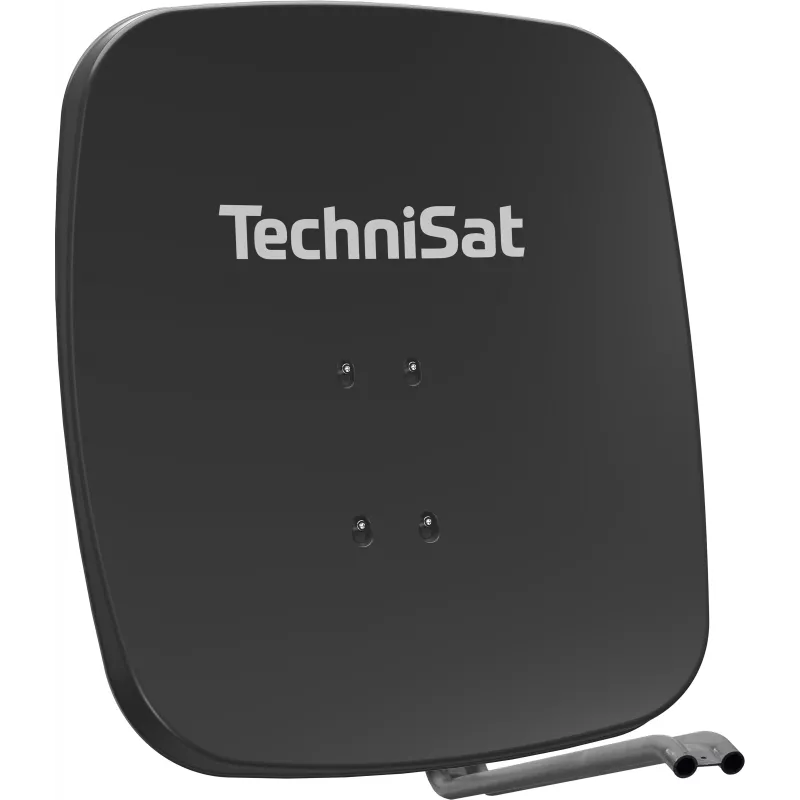

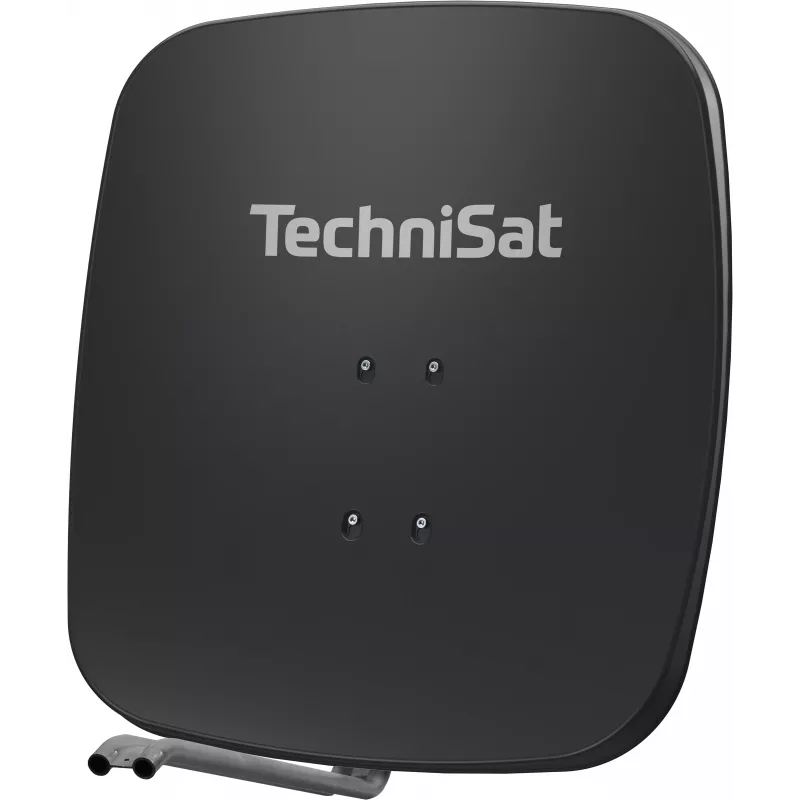

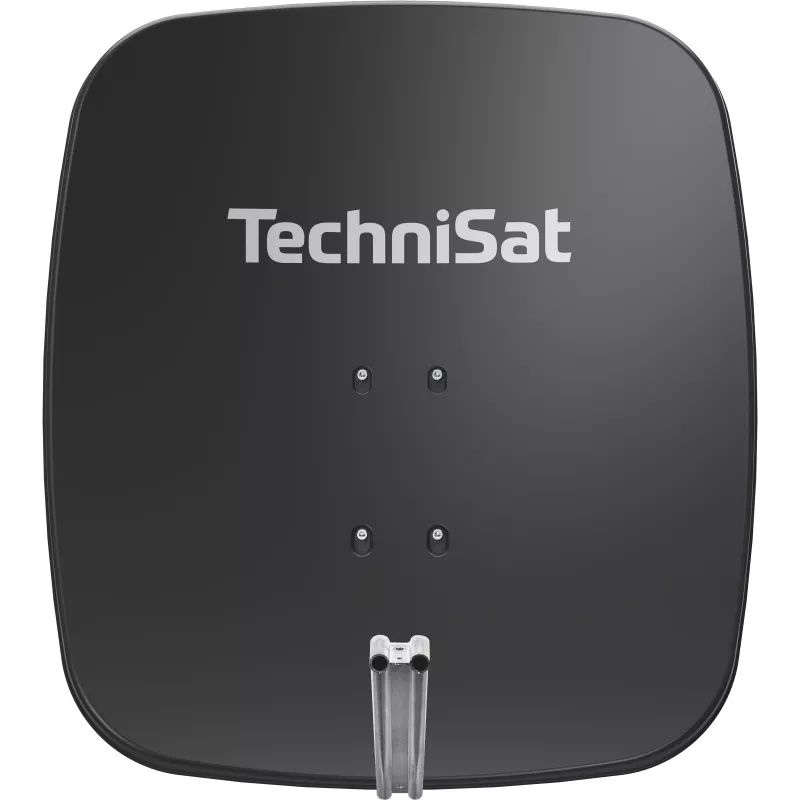

TechniSat SATMAN 65 PLUS antena parabólica – 65 cm, ganancia de 35,7 dBi, HDTV, montaje en mástil, gris claro

With a 35.7 dBi gain at 11.3 GHz, the TechniSat SATMAN 65 PLUS delivers high-performance Ku-band reception for HDTV and UHDTV in a compact 65 cm offset dish.

Overview

The SATMAN 65 PLUS is an offset satellite dish designed for reliable reception across the 10.7–12.75 GHz frequency range. Its 65 cm aluminum reflector and galvanized steel mount provide durability and corrosion resistance, while the powder-coated light grey finish blends with most exteriors.

What stands out

• 35.7 dBi gain for strong signal capture
• Supports HDTV and UHDTV broadcasts
• Robust aluminum reflector with galvanized steel mount
• Mast mount with 0°–90° elevation adjustment
• Wind load resistance up to 1000 N

Technical details

• Antenna type: Offset satellite dish
• Reflector diameter: 65 cm
• Frequency range: 10.7–12.75 GHz
• Gain: 35.7 dBi at 11.3 GHz
• Polarization: Linear
• F/D ratio: Approx. 0.6
• Offset angle: Approx. 25°

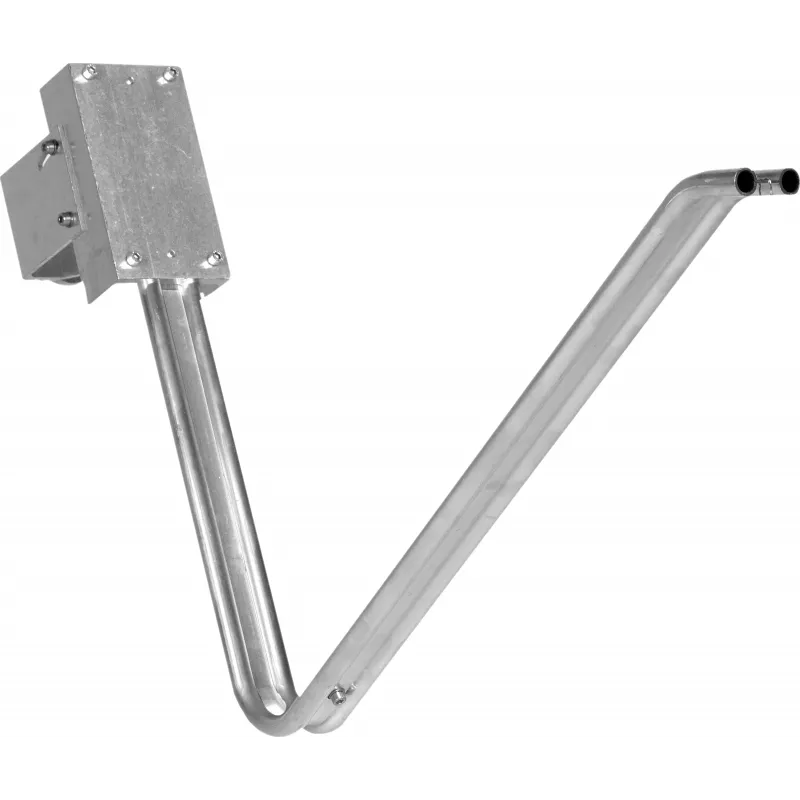

• LNB feed holder diameter: 40 mm
• Mounting type: Mast mount
• Elevation adjustment range: 0°–90°
• Wind load resistance: Up to 1000 N
• Colour: Light grey
• Corrosion protection: Powder-coated
• Number of LNBs supported: 1 (expandable with multi-feed holder)

Our verdict

A solid choice for single-user satellite reception, offering high gain and robust construction in a compact footprint.
