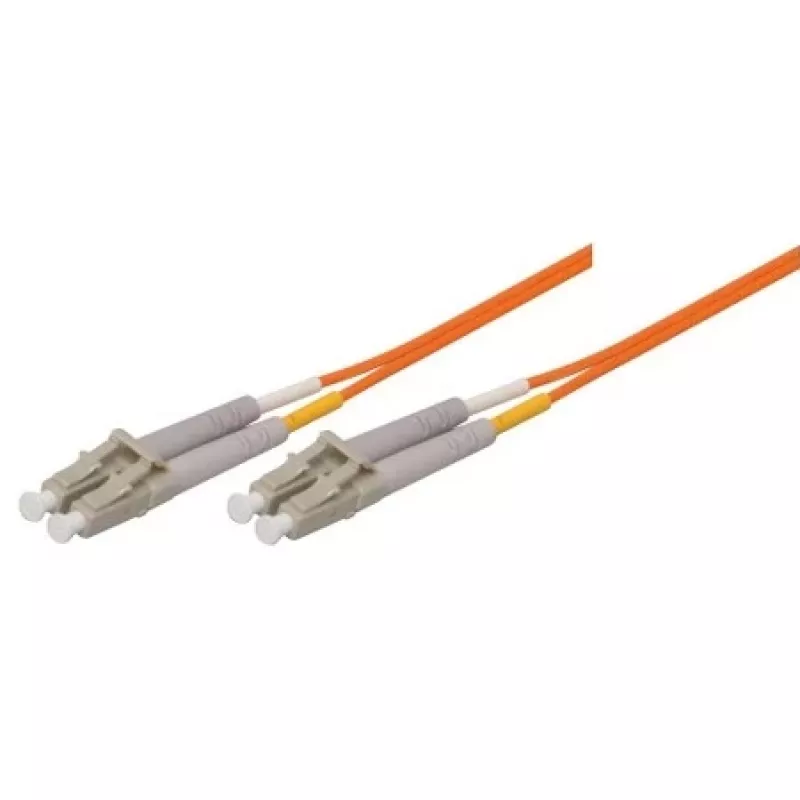

TECLINE Cable de conexión de fibra óptica OM1 LC dúplex a LC dúplex, 62,5/125 µm, naranja, 30 m 86330

This TECLINE fibre patch cable stands out with its OM1 multimode fibre, offering a cost-effective solution for legacy network segments where 62.5/125 µm infrastructure is already in place. The LC duplex connectors with UPC polish ensure low insertion loss and reliable performance in tight spaces.

Highlights

• OM1 multimode fibre, 62.5/125 µm core/cladding
• LC duplex to LC duplex connectors, UPC polish
• 30 m length, orange PVC jacket for easy identification
• Insertion loss < 0.3 dB, return loss > 35 dB

In daily use

The duplex design supports bidirectional communication, making it suitable for Ethernet, Fibre Channel, and other protocols. The orange jacket is standard for OM1, simplifying cable management in racks and patch panels.

Full specifications

• Cable type: Fibre optic patch cable
• Fibre mode: Multimode
• Fibre type: OM1
• Core diameter: 62.5 µm
• Cladding diameter: 125 µm
• Connector 1: LC Duplex
• Connector 2: LC Duplex
• Connector polish: UPC
• Cable length: 30 m
• Jacket material: PVC
• Insertion loss: < 0.3 dB
• Return loss: > 35 dB
• Attenuation at 850 nm: 3.5 dB/km
• Attenuation at 1300 nm: 1.5 dB/km
• Bandwidth at 850 nm: 200 MHz·km
• Bandwidth at 1300 nm: 500 MHz·km
• Operating temperature: -20°C to 70°C

Final note

Ideal for extending existing OM1 networks or connecting legacy equipment, this cable delivers consistent performance with a durable PVC jacket.
