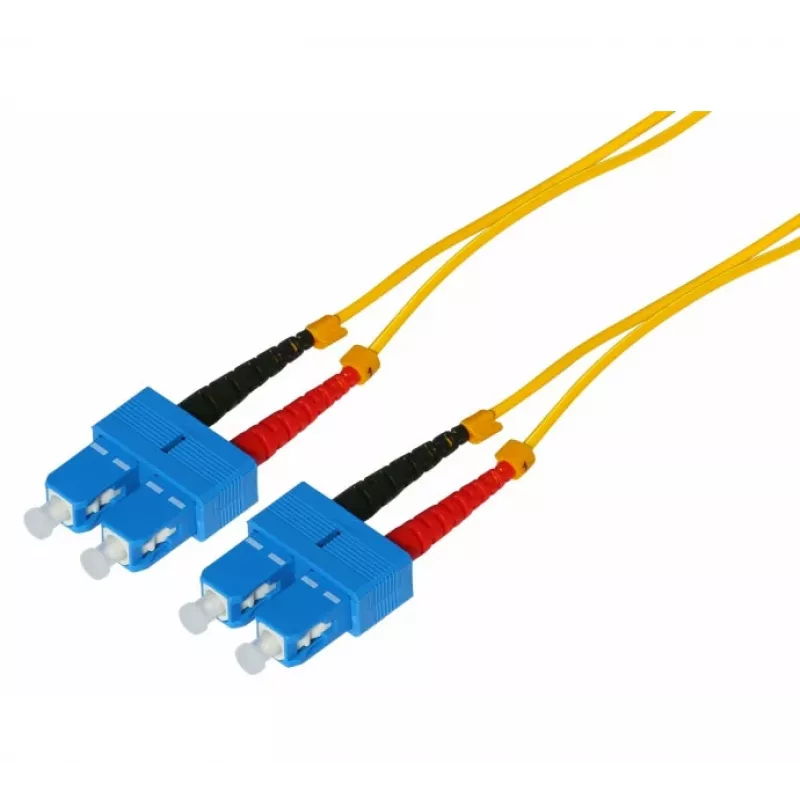

Tecline HD cable de conexión de fibra óptica, 9/125 µm monomodo OS2, SC dúplex a SC dúplex, amarillo, 3,0 m (799SS03)

Network technicians and data centre operators rely on this Tecline HD fibre optic patch cable for dependable singlemode connections between patch panels, switches, and optical distribution frames. The SC duplex connectors on both ends provide a secure, keyed connection, while the yellow jacket clearly identifies it as singlemode OS2 fibre.

Key specifications

• Fibre type: Singlemode OS2, 9/125 µm core/cladding
• Connectors: SC Duplex (UPC polish) to SC Duplex (UPC polish)
• Length: 3.0 m
• Jacket colour: Yellow
• Insertion loss: < 0.3 dB
• Return loss: > 50 dB
• Supported wavelengths: 1310 nm, 1550 nm

Why choose it

The OS2 fibre is optimised for long-haul and high-speed backbone links, supporting wavelengths up to 1550 nm with low attenuation. The duplex design carries two fibres, enabling simultaneous transmit and receive channels for full-duplex communication. UPC polished connectors reduce back reflection, ensuring stable signal integrity in demanding network environments.

Ideal use cases

• Data centre interconnects between switches and patch panels
• Telecommunications central office and headend links
• Enterprise backbone cabling for campus networks
• Fibre-to-the-desk applications requiring singlemode performance

Good to know

The cable is 3 metres long, ideal for short rack-to-rack or intra-rack connections where excess slack is undesirable. Its yellow jacket conforms to industry colour-coding for singlemode fibre, simplifying identification in mixed-fibre environments.
