FRAENKISCHE ROHRWERKE GEBR. KIRCHNER GMBH & CO. KG codo roscado SB-E-V 50 galvanizado en caliente (20460050)

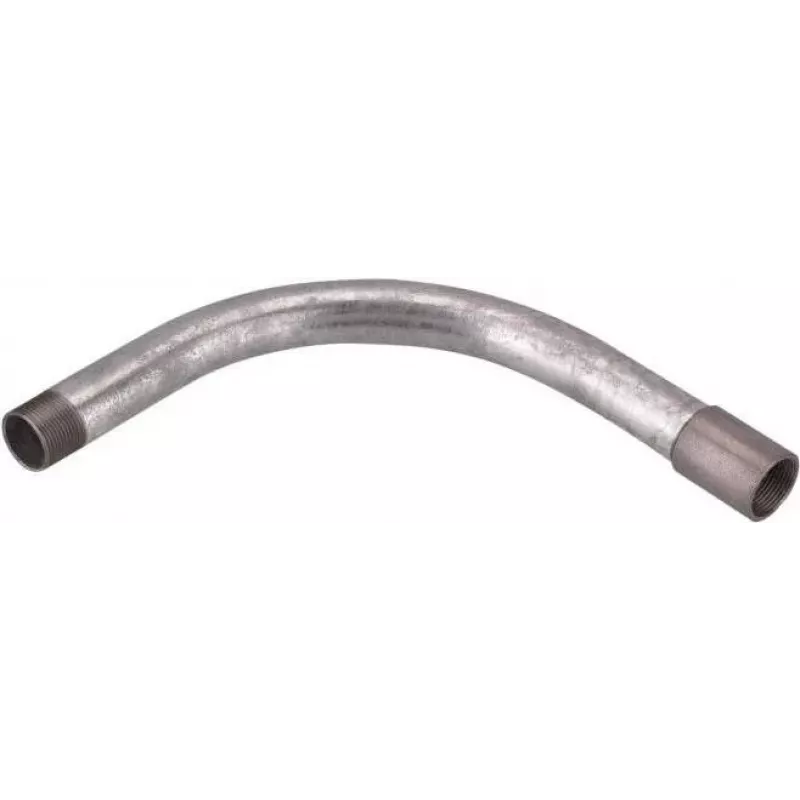

Threaded elbow for rigid steel conduit systems, providing a 90° bend with hot-dip galvanized corrosion protection. The SB-E-V 50 is designed for secure, durable connections in demanding installations.

Advantages

Hot-dip galvanized steel ensures long-term resistance to corrosion and mechanical stress. The 90° bend allows for efficient routing of conduit around obstacles while maintaining a continuous protective path.

Suitable for

• Rigid steel conduit systems
• Industrial and commercial electrical installations
• Applications requiring high mechanical protection

Key specifications

• Product type: Threaded elbow
• Bend angle: 90°
• Nominal diameter: 50 mm
• Material: Steel
• Surface treatment: Hot-dip galvanized
• Thread type: Metric
• Connection type: External thread
• Bend radius: 180 mm
• Outer diameter: 60.3 mm
• Temperature resistance: -45°C to +400°C
• Halogen-free: Yes
• UV resistance: Yes

Recommendations

Ideal for use with OBO Bettermann SB-E-V conduit systems. Ensure proper threading and sealing for optimal performance in outdoor or corrosive environments.
