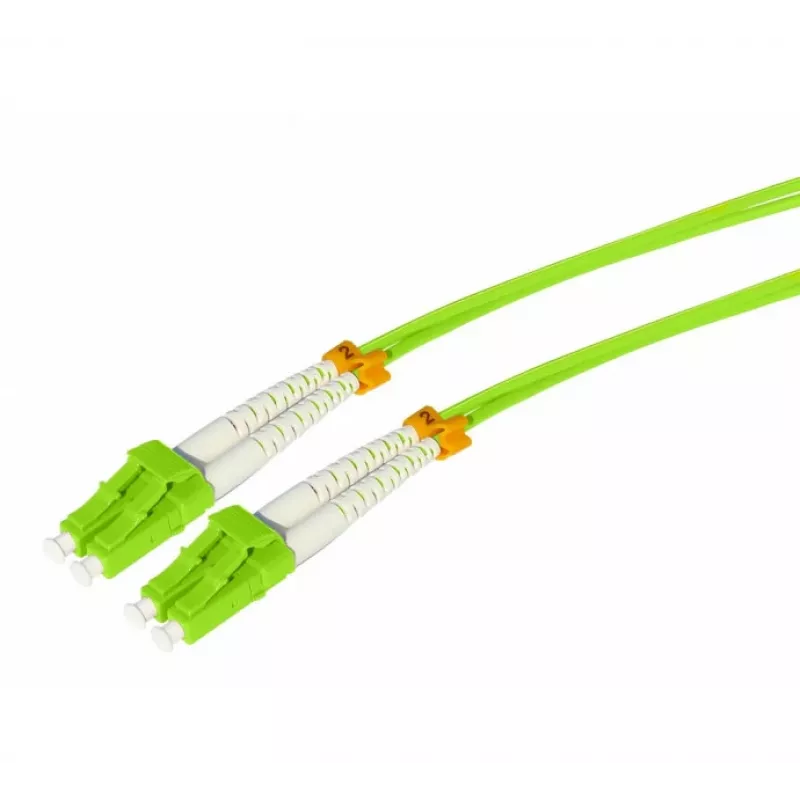

Tecline HD Cable de conexión de fibra óptica OM5 multimodo, LC dúplex a LC dúplex, verde lima, 3 m 796LL03

Fiber optic patch cable with OM5 wideband multimode fiber, supporting data rates up to 400 Gbps for high-speed data center and enterprise networks. The lime green LSZH jacket provides low smoke and halogen-free safety, while the LC duplex connectors ensure reliable connectivity.

Advantages

OM5 fiber is optimized for short-wavelength division multiplexing (SWDM), enabling multiple wavelengths over a single fiber pair to increase capacity. The 50/125 µm core/cladding diameter supports high bandwidth and low insertion loss, making it suitable for demanding applications.

Suitable for

• Data centers and server rooms
• Local area networks (LAN)
• Storage area networks (SAN)
• Telecommunications infrastructure

Key specifications

• Fiber type: OM5 multimode, 50/125 µm
• Connectors: LC duplex to LC duplex, UPC polish
• Length: 3.0 m
• Jacket: LSZH, lime green
• Typical insertion loss: ≤ 0.3 dB
• Standards: IEC 60793-2-10 Type A1a.4, TIA-492AAAE

Recommendations

For optimal performance, pair with OM5-compatible transceivers and maintain proper bend radius during installation.
