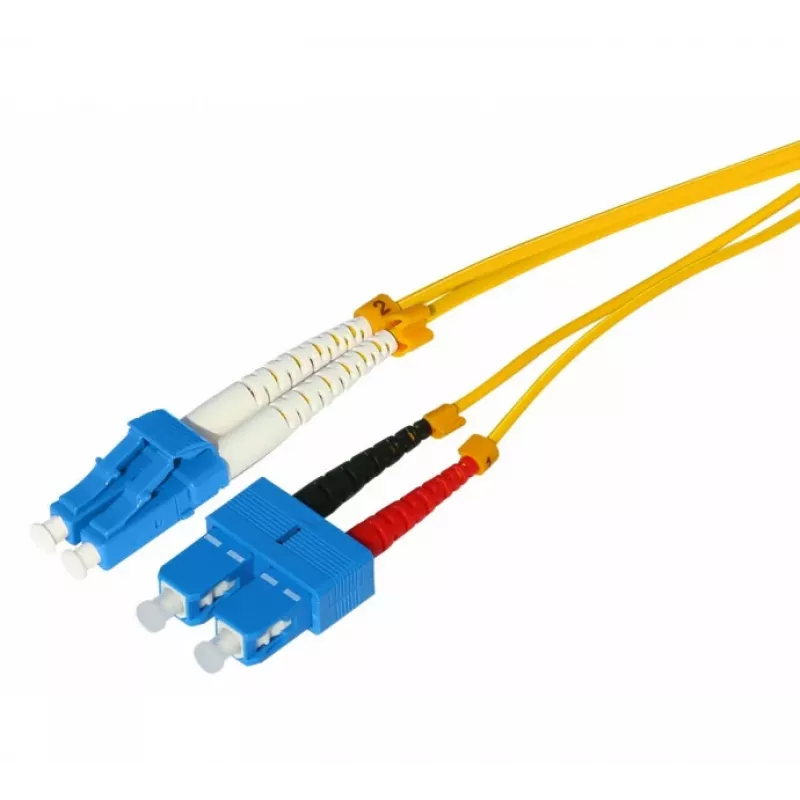

Tecline HD Cable de parcheo de fibra óptica monomodo OS2 LC dúplex a SC dúplex, 9/125 µm, amarillo, 3 m 799LS03

Fibre optic patch cable with high-density LC Duplex to SC Duplex connectors, engineered for singlemode OS2 transmission over 3 metres. The yellow jacket and 9/125 µm core/cladding support low-loss links in data centres, LANs, SANs and telecom networks.

Advantages

Singlemode OS2 fibre with UPC polished connectors delivers insertion loss below 0.3 dB and return loss over 50 dB, ensuring stable signal integrity for 1GbE to 100GbE applications. The duplex construction and HD design simplify high-density patching.

Suitable for

• Data centre backbone and server interconnects
• Enterprise LAN and SAN infrastructure
• Telecommunications and long-distance links
• High-density fibre patching environments

Key specifications

• Fibre type: Singlemode OS2, 9/125 µm
• Connectors: LC Duplex to SC Duplex, UPC polish
• Length: 3 m
• Jacket colour: Yellow
• Insertion loss: < 0.3 dB
• Return loss: > 50 dB
• Wavelengths: 1310 nm, 1550 nm
• Data rates: 1GbE, 10GbE, 40GbE, 100GbE

Recommendations

For reliable singlemode connectivity in high-density fibre installations, this Tecline patch cable offers consistent performance and easy identification with its yellow OS2 jacket.
