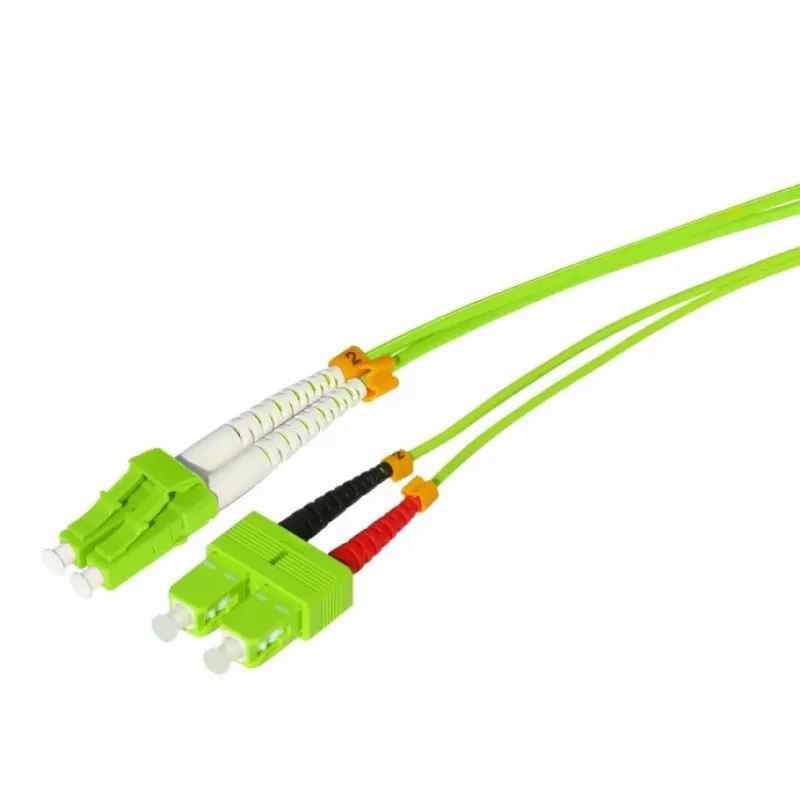

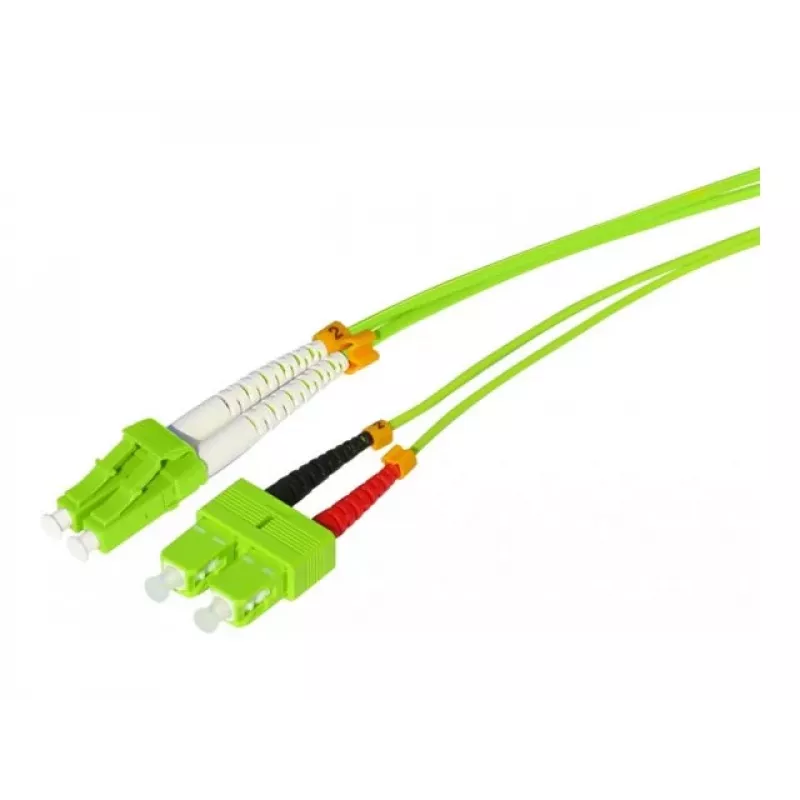

Tecline HD OM5 cable de fibra óptica multimodo 50/125 µm, LC dúplex a SC dúplex, verde lima, 3,0 m 796LS03

This Tecline HD fibre optic patch cable uses OM5 wideband multimode fibre, which supports multiple wavelengths for higher-speed short-reach links compared to conventional OM3/OM4 cables. The 50/125 µm core/cladding geometry is terminated with LC Duplex on one end and SC Duplex on the other, in a lime green jacket for quick identification.

Highlights

• OM5 wideband multimode fibre, 50/125 µm
• LC Duplex to SC Duplex connectors
• Lime green jacket, 3.0 m length
• Duplex (2-fibre) construction

In daily use

The A-B polarity supports standard crossover patching between transceivers and cassettes. OM5 fibre is designed for short-wavelength division multiplexing, enabling higher aggregate data rates over a single fibre pair in compatible systems.

Full specifications

• Fibre type: Multimode OM5
• Core/cladding diameter: 50/125 µm
• Connector A: LC Duplex
• Connector B: SC Duplex
• Cable length: 3.0 m
• Jacket colour: Lime green
• Number of fibres: 2 (Duplex)
• Polarity: A-B (cross-over)
• Supported protocols: Ethernet, Fibre Channel, InfiniBand
• Maximum data rate: up to 100 Gbps (e.g., 100GBASE-SR4, 100GBASE-SWDM4)
• Attenuation @ 850 nm: ≤ 3.0 dB/km
• Attenuation @ 953 nm: ≤ 2.3 dB/km
• Attenuation @ 1300 nm: ≤ 1.0 dB/km

Final note

For high-density patching where OM5 performance and LC/SC connectivity are required, this cable provides a reliable physical layer link.
