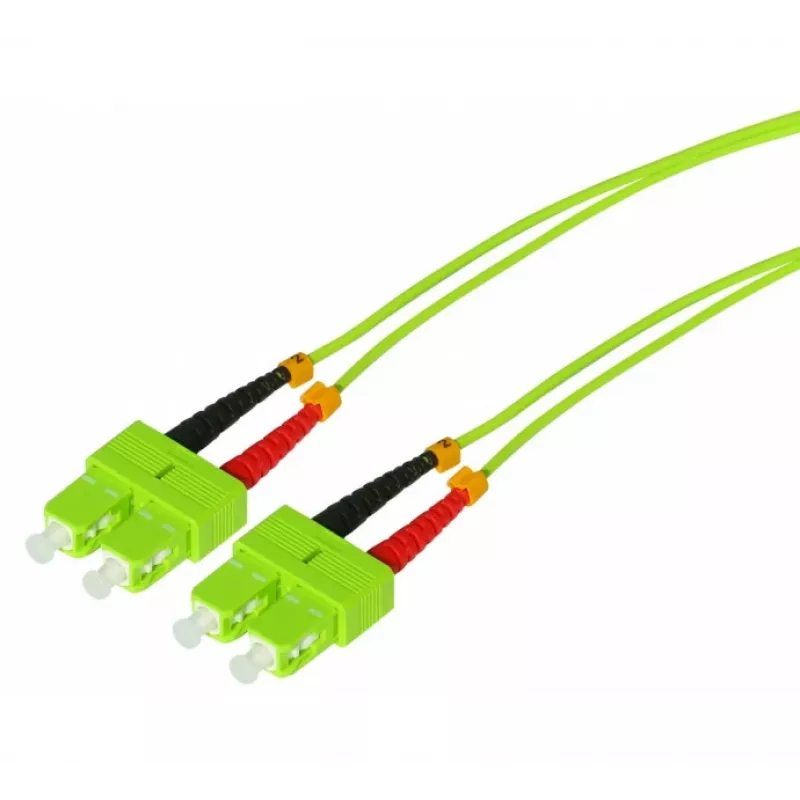

Tecline OM5 Cable de parcheo de fibra óptica SC dúplex, 50/125µm multimodo, verde lima, 7,5m (796SS07)

High-speed data centers and enterprise networks demand reliable, low-loss fiber connections. The Tecline OM5 SC Duplex Patch Cable delivers wideband multimode performance for short-wave wavelength division multiplexing (SWDM) applications, supporting at least four wavelengths between 850nm and 953nm. With a lime green jacket for quick identification and 7.5m length, it connects transceivers, patch panels, and equipment in high-density environments.

Who is it for

Network engineers and IT professionals deploying OM5 multimode fiber infrastructure in data centers, server rooms, or campus backbones. This cable suits those needing a duplex SC-to-SC connection with low insertion loss and high effective modal bandwidth for 40G and 100G Ethernet over short distances.

Main features

• OM5 wideband multimode fiber, 50/125µm core/cladding diameter
• SC duplex to SC duplex connectors with UPC polish
• Lime green jacket for easy OM5 identification
• 7.5m length for flexible equipment placement
• Low insertion loss ≤0.3dB and return loss ≥30dB
• Effective modal bandwidth: 4700 MHz·km at 850nm, 2470 MHz·km at 953nm

Specifications

• Cable type: Fiber optic patch cable
• Fiber type: Multimode OM5
• Core/cladding diameter: 50/125µm
• Connector A: SC Duplex
• Connector B: SC Duplex
• Connector polish: UPC
• Cable length: 7.5m
• Jacket colour: Lime green
• Insertion loss: ≤0.3dB
• Return loss: ≥30dB
• Attenuation at 850nm: ≤2.3dB/km
• Attenuation at 953nm: ≤2.3dB/km
• Operating temperature: -20°C to +70°C

Tips

Use lime green OM5 cables for easy identification in mixed fiber environments. Ensure both ends are cleaned before installation to maintain low insertion loss. Pair with OM5-compatible transceivers for optimal performance in SWDM applications.
