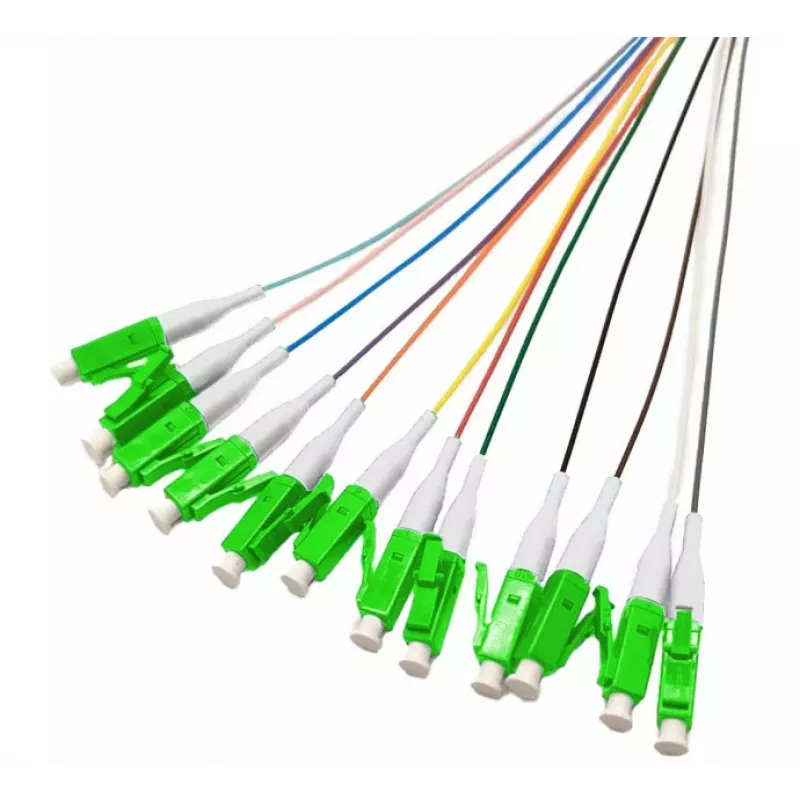

Tecline Pigtails de fibra óptica OM5 LC/UPC, pack de 12, 2,0 m, codificados por colores 20500018

Fiber optic pigtail set with LC/UPC connectors and OM5 multimode fiber, color-coded for easy identification. Each pigtail is 2.0 m long, ideal for splicing in high-density data center environments. The OM5 fiber supports short-wavelength division multiplexing, enabling higher data rates over multimode fiber.

Advantages

Color-coded pigtails simplify fiber management and reduce installation errors. LC/UPC connectors provide low insertion loss and high return loss for reliable connections. OM5 fiber is optimized for 850 nm and 953 nm wavelengths, supporting future network upgrades.

Suitable for

• Data centers and server rooms
• SAN, LAN, and FTTx applications
• Fiber splicing and termination

Key specifications

• Connector type: LC/UPC
• Fiber type: OM5 multimode (50/125 µm)
• Length per pigtail: 2.0 m
• Quantity: 12 pieces
• Insertion loss: ≤ 0.3 dB
• Return loss: ≥ 50 dB
• Operating temperature: -20°C to +70°C

Recommendations

For best results, use with OM5-compatible patch panels and cassettes. Ensure proper cleaning of connectors before mating.
