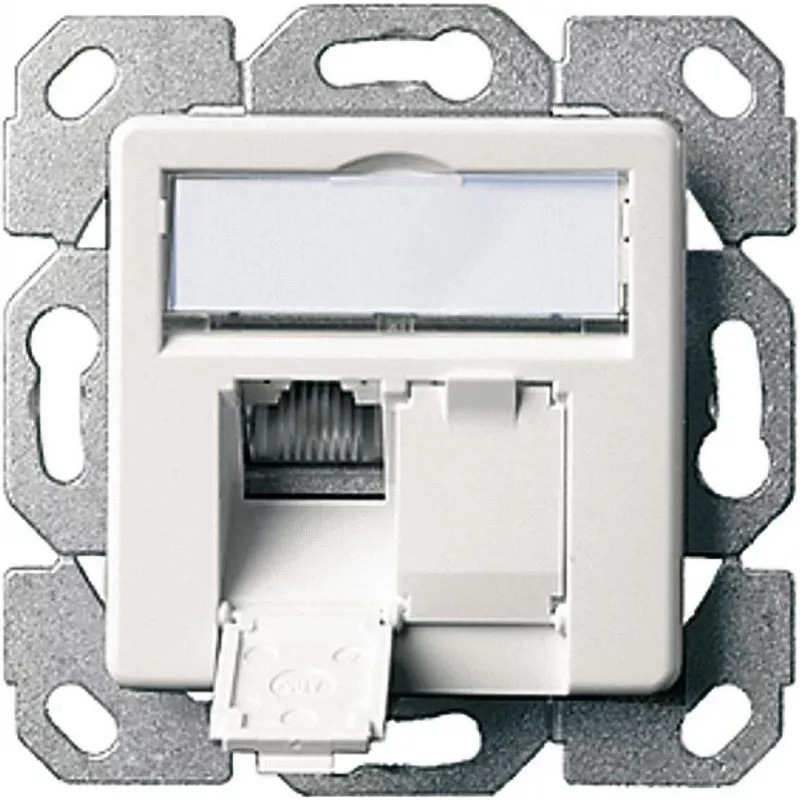

Telegärtner AMJ45 8/8 K Up/50 Toma de datos de empotrar Cat.6A, 2x RJ45, apantallada, blanco perla RAL 1013 J00020A0501

In modern office buildings and data centers, network downtime is not an option. The Telegärtner AMJ45 8/8 K Up/50 Cat.6A flush-mount data outlet provides two shielded RJ45 ports in a single compact unit, delivering reliable 10 Gigabit Ethernet connectivity up to 500 MHz. Its pearl white housing (RAL 1013) blends seamlessly into any wall, while the robust design ensures long-term performance even under PoE++ loads.

Key specifications

• Connector type: RJ45, 2 ports
• Performance: Cat.6A (ISO/IEC 11801, EN 50173-1, TIA/EIA-568-C.2)
• Transmission speed: up to 10 Gigabit Ethernet
• Frequency range: up to 500 MHz
• Shielding: shielded (STP/FTP compatible)
• Mounting type: flush-mount (Unterputz), installation depth 50 mm
• Wiring standard: T568A and T568B (color coded)
• Termination: IDC for AWG 24-22 solid wire
• Contact plating: gold over nickel
• Housing material: thermoplastic
• PoE compatibility: PoE, PoE+, 4PPoE (IEEE 802.3af/at/bt)
• Standards compliance: IEC 60603-7-51

Why choose it

This outlet is part of the renowned Telegärtner AMJ45 series, known for its precision engineering and durability. The shielded design minimizes electromagnetic interference, ensuring stable high-speed connections in electrically noisy environments. The two RJ45 ports allow for flexible network expansion without additional wall plates, saving space and installation time.

Ideal use cases

• Office workstations requiring high-speed data and PoE for VoIP phones or cameras
• Conference rooms with multiple network devices
• Industrial settings where reliable shielded connections are critical
• Retrofit projects upgrading to Cat.6A infrastructure

Good to know

The outlet is designed for flush mounting in standard wall boxes with a depth of at least 50 mm. It supports both T568A and T568B wiring schemes, making it compatible with existing installations. The pearl white color (RAL 1013) matches common wall plates and décor. For installation, use solid copper conductors AWG 24-22. The gold-plated contacts ensure low contact resistance and corrosion resistance over time.
