Telegärtner Cable de parcheo Cat6a S/FTP 2m verde

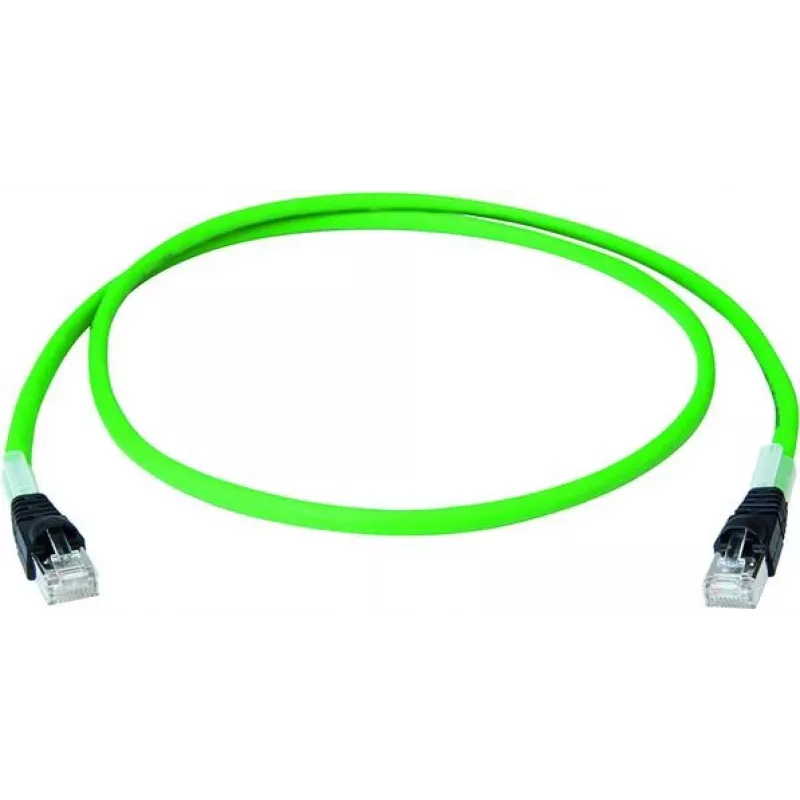

The Telegärtner L80401A0006 is a high-performance Cat6a S/FTP (S-STP) Ethernet patch cable, 2 meters in length, designed for reliable 10 Gigabit Ethernet connections in demanding network environments. With its robust shielding and LSZH jacket, this cable ensures minimal interference and maximum safety.

Advantages

This cable offers superior protection against electromagnetic interference (EMI) and crosstalk thanks to its S/FTP shielding (each pair individually foil shielded and overall braid shielded). The LSZH (Low Smoke Zero Halogen) jacket reduces toxic fumes in case of fire, making it ideal for public and commercial buildings. It supports full 10GBASE-T performance over the 2-meter length, ensuring high-speed data transfer for bandwidth-intensive applications.

Suitable for

• Data center cabling
• Server room connections
• Enterprise network infrastructure
• High-speed LAN applications
• 10 Gigabit Ethernet networks

Key specifications

• Cable Type: Ethernet Patch Cable
• Category: Cat6a (Category 6a)
• Length: 2 m
• Shielding Type: S/FTP (Screened Foiled Twisted Pair)
• Connector A: RJ-45 Male
• Connector B: RJ-45 Male
• Data Transfer Rate: Up to 10 Gbps
• Bandwidth: 500 MHz
• Color: Green
• Conductor Material: Copper
• Conductor Construction: Stranded
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Wiring Standard: TIA/EIA-568-B.2-1 (T568B)
• Impedance: 100 Ohm
• Number of Pairs: 4 Twisted Pairs
• Halogen Free: Yes
• Flame Retardant: Yes
• Compliance: RoHS, ISO/IEC 11801, EN 50173

Recommendations

For optimal performance, pair this cable with compatible Cat6a or higher network components. Ensure proper cable management to maintain signal integrity. Ideal for structured cabling systems requiring high reliability and safety standards.
