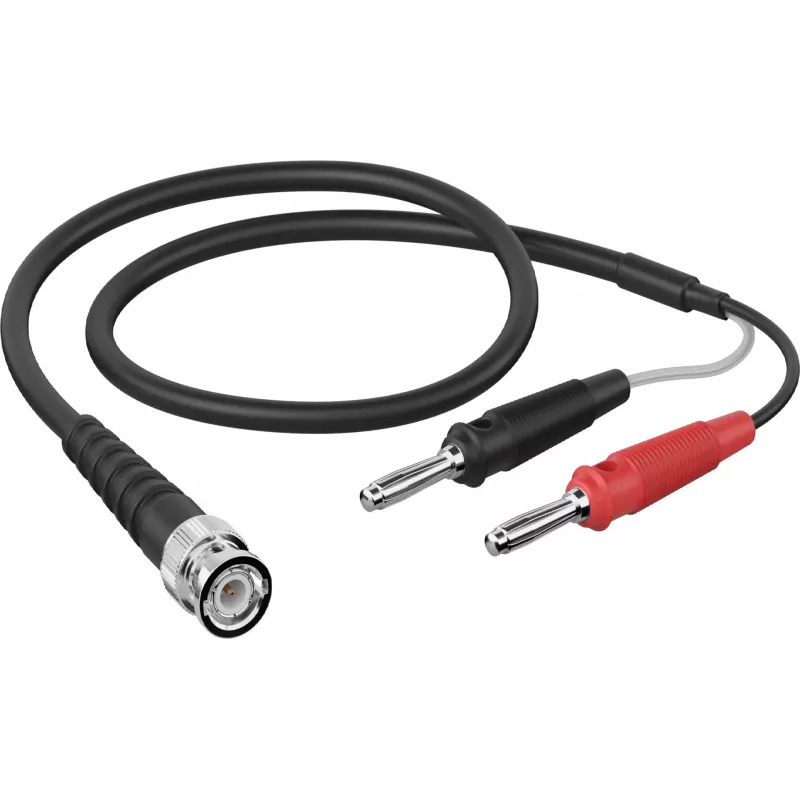

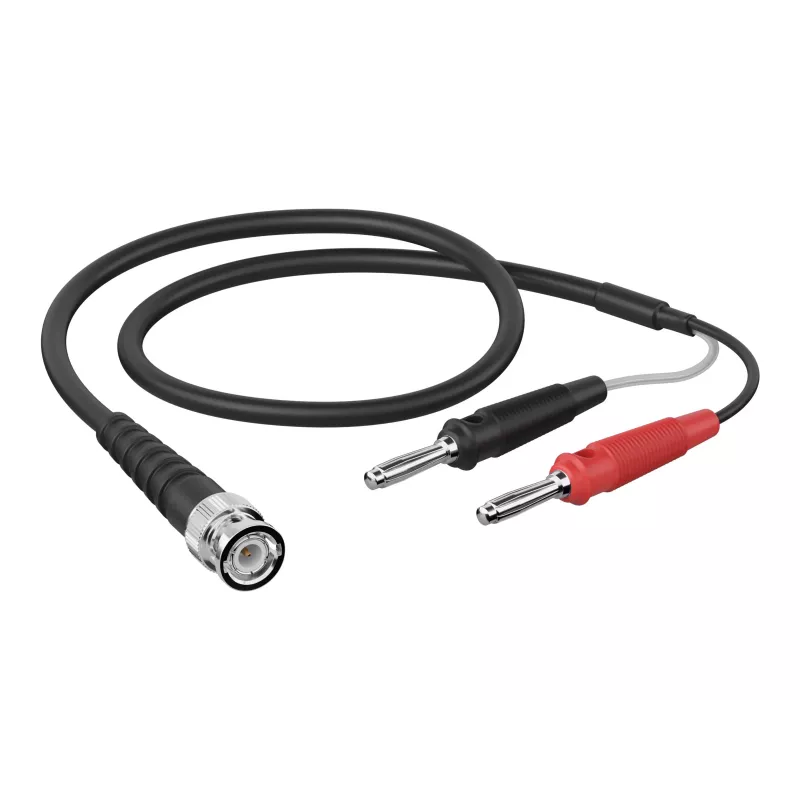

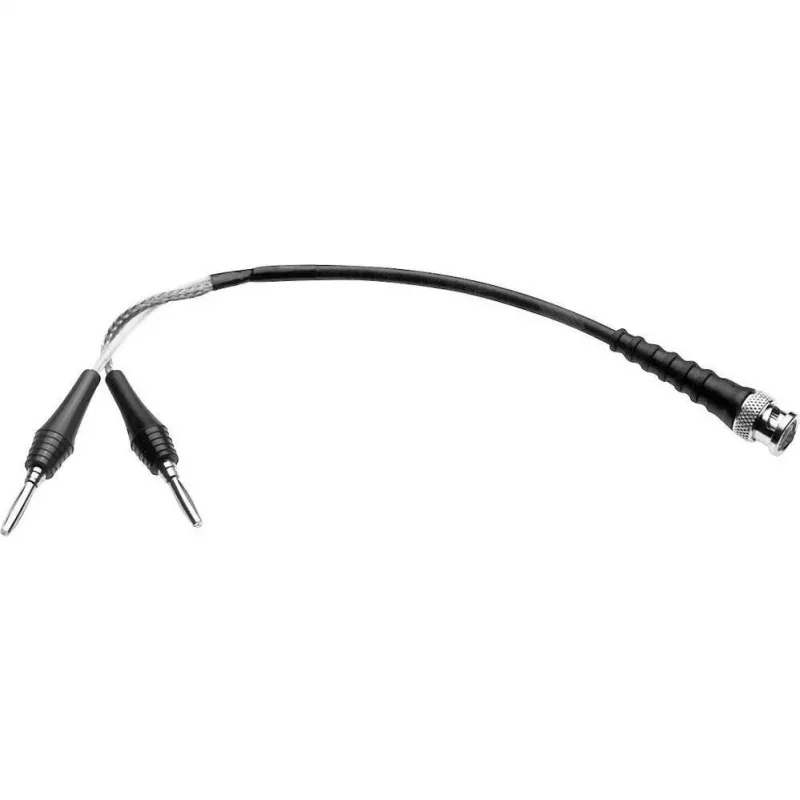

Telegärtner L00010A1844 Cable de medición coaxial de 0,5 m BNC a 2x banana, negro

Coaxial test lead with BNC male plug to dual 4mm banana plugs, ideal for connecting oscilloscopes and signal generators to measurement equipment. The 0.5m black cable features a 50 Ohm impedance and braided copper shielding for reliable signal integrity.

Advantages

Nickel-plated connectors ensure durable contact and corrosion resistance. The PVC jacket and PE dielectric provide flexibility and stable performance across a wide temperature range.

Suitable for

• Test and measurement setups
• Oscilloscope connections
• Signal generator outputs

Key specifications

• Connector A: BNC male
• Connector B: 2x 4mm banana plugs (red and black)
• Length: 0.5 m
• Impedance: 50 Ohm
• Cable colour: black
• Conductor material: copper
• Shielding: braided copper
• Jacket material: PVC
• Dielectric material: PE
• Operating temperature: -20°C to +70°C
• Max. voltage rating: 500V
• Insulation resistance: > 200 MΩ
• Contact plating: nickel
• Cable diameter: approx. 2.9 mm

Recommendations

Choose this lead for precise signal transmission in laboratory and field testing environments.
