VOLTCRAFT MSL-530 Juego de cables de medición conector banana de 4 mm a punta de prueba 1 m negro/rojo 1 par VC-17766110

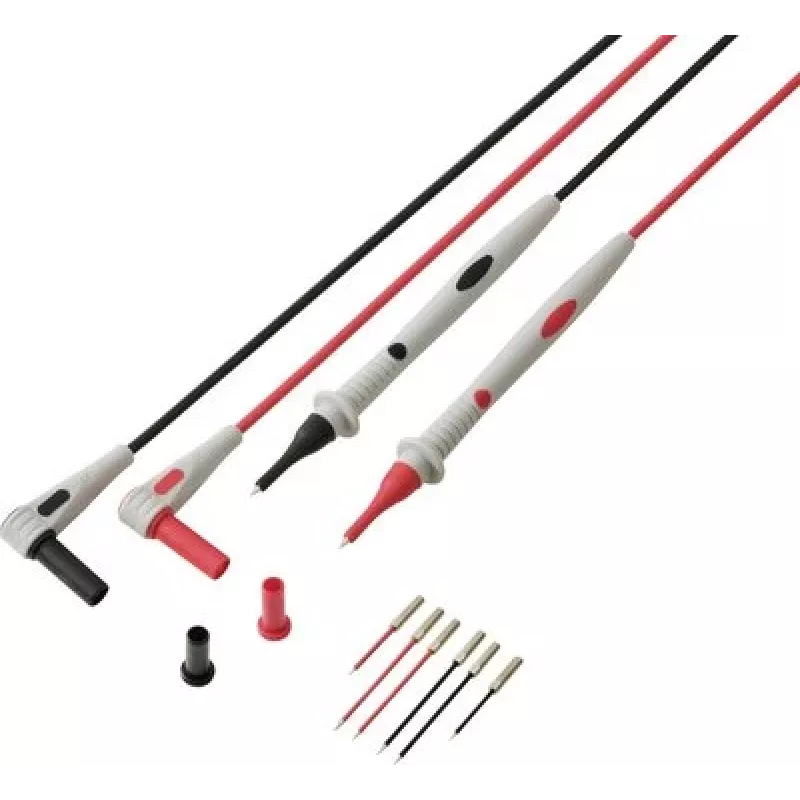

For electronics technicians and lab engineers who need reliable measurements on multimeters, clamp meters, or power supplies, the VOLTCRAFT MSL-530 test lead set delivers secure connections and consistent readings. Each lead features a 4 mm nickel-plated banana plug on one end and a pointed test probe on the other, with a 1 m PVC-insulated copper cable in black and red for easy polarity identification.

Key specifications

• Product type: Test lead set
• Cable length: 1 m per lead
• Connector A (instrument side): 4 mm banana plug, straight, nickel-plated brass
• Connector B (probe side): Test probe with pointed tip
• Nominal voltage: 1000 V
• Nominal current: 10 A
• Safety category: CAT III 1000 V, CAT IV 600 V
• Insulation material: PVC
• Cable colours: Black and red (1 pair)
• Conductor material: Copper
• Operating temperature range: -15 to +70 °C
• Compliance: RoHS

Why choose it

The MSL-530 is built for safe everyday testing, with a high 1000 V CAT III rating to handle demanding electrical environments. The flexible PVC insulation and robust nickel-plated plugs ensure long-term durability, while the colour-coded leads help prevent connection errors.

Ideal use cases

• Measuring voltage, current, and resistance with digital multimeters
• Connecting to bench power supplies for circuit testing
• Using with clamp meters for current measurements in industrial settings
• General electronics troubleshooting and repair

Good to know

The set includes two leads (black and red) and is RoHS compliant. Always verify the measurement category of your instrument and test environment before use.
