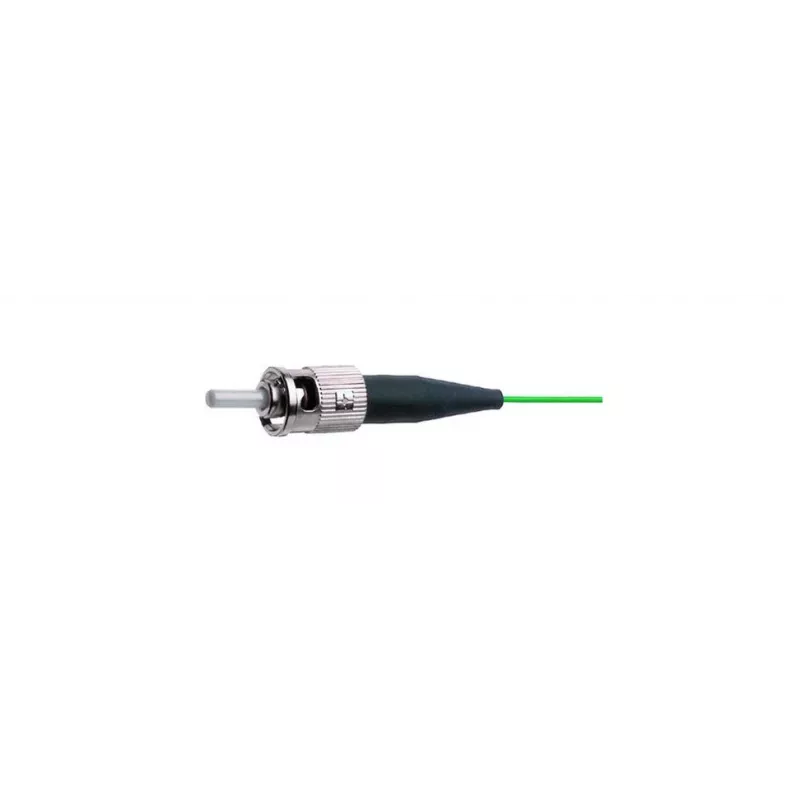

Telegärtner Pigtail de fibra óptica multimodo OM1 62,5/125 µm, conector ST, 2,0 m, pack de 24 (L00819A0019)

In fiber optic installations, connecting a terminated cable to a splice point or patch panel requires a short, factory-terminated fiber segment. This Telegärtner fiber optic pigtail provides a reliable ST connector on one end and a bare fiber on the other, ready for fusion splicing. It is designed for multimode OM1 networks with a 62.5/125 µm core/cladding diameter, making it suitable for legacy LAN backbones and industrial data links.

Who is it for

Network technicians and installers who need to terminate multimode fiber in splice closures, distribution boxes, or patch panels. The pigtail is ideal for building or repairing OM1 fiber links where an ST interface is required.

Main features

• Multimode OM1 fiber with 62.5 µm core and 125 µm cladding
• Factory-terminated ST connector with PC polish
• 2.0 m tight-buffered fiber (0.9 mm buffer diameter)
• Unconnectorized end for fusion splicing
• Pack of 24 pigtails for efficient installation

Specifications

• Fiber type: Multimode OM1
• Core/cladding diameter: 62.5/125 µm
• Connector type: ST
• Connector polish: PC (Physical Contact)
• Cable length: 2.0 m
• Buffer type: Tight buffer, 0.9 mm diameter
• Number of fibers: 1
• Packaging quantity: 24 pieces

Tips

When splicing these pigtails, ensure the fusion splicer is set for 62.5/125 µm multimode fiber. Store unused pigtails in a clean, dry environment to protect the connector end faces from contamination.
