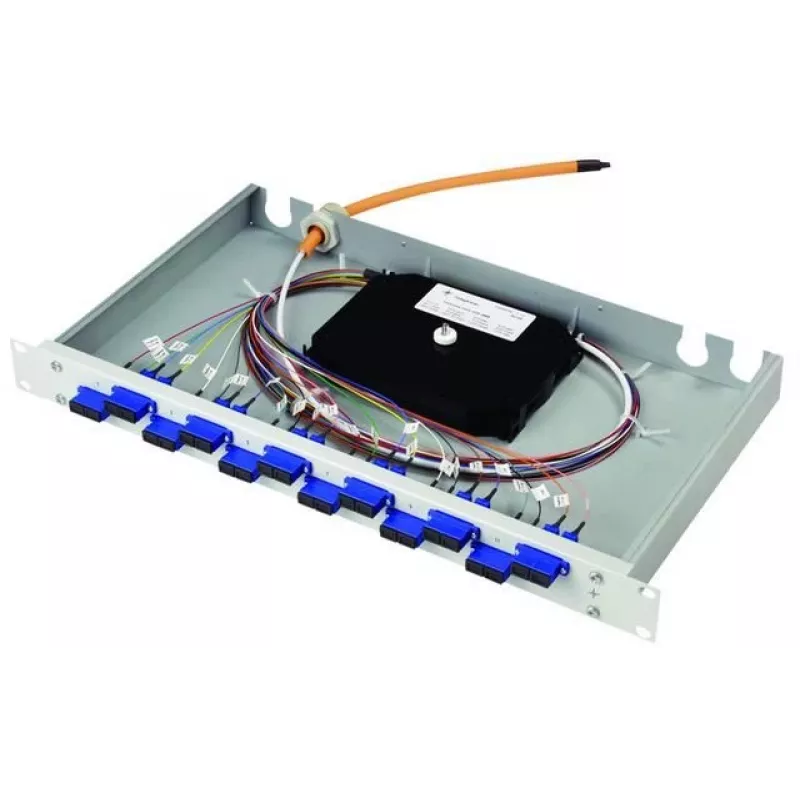

TELEGÄRTNER TG 19 distribuidor de fibra óptica de 19 pulgadas 1U, 6x LC dúplex + 12x pigtails LC, OS2 9/125 µm, gris 100131003

Managing fiber optic connections in a 19-inch rack can become messy and unreliable without a dedicated distribution panel. The TELEGÄRTNER TG 19 LWL-Rangierverteiler (model 100131003) provides a structured, pre-assembled solution for terminating and distributing up to 12 single-mode fibers in just 1U of rack space.

Who is it for

Network technicians and data center managers who need a compact, ready-to-use fiber distribution point for OS2 single-mode networks. It is suited for telecommunications rooms, enterprise LAN backbones, and FTTx applications where space is limited and reliability is critical.

Main features

• 19-inch rack mount, 1U height, light grey powder-coated steel housing
• Pre-assembled with 6 LC duplex adapters (12 fibers total)
• 12 LC pigtails, 2.0 m length, for splicing to incoming OS2 9/125 µm single-mode fibers
• Integrated fixed splice tray for organized fiber management
• Rear cable entry with multiple options for cable glands
• Operating temperature range: -10°C to +60°C

Tips

When installing, route the incoming cable through the rear entry and secure it with an appropriate cable gland. Use the integrated splice tray to keep splices protected and organized. The panel is fully pre-assembled, so no additional adapters or pigtails are needed.
