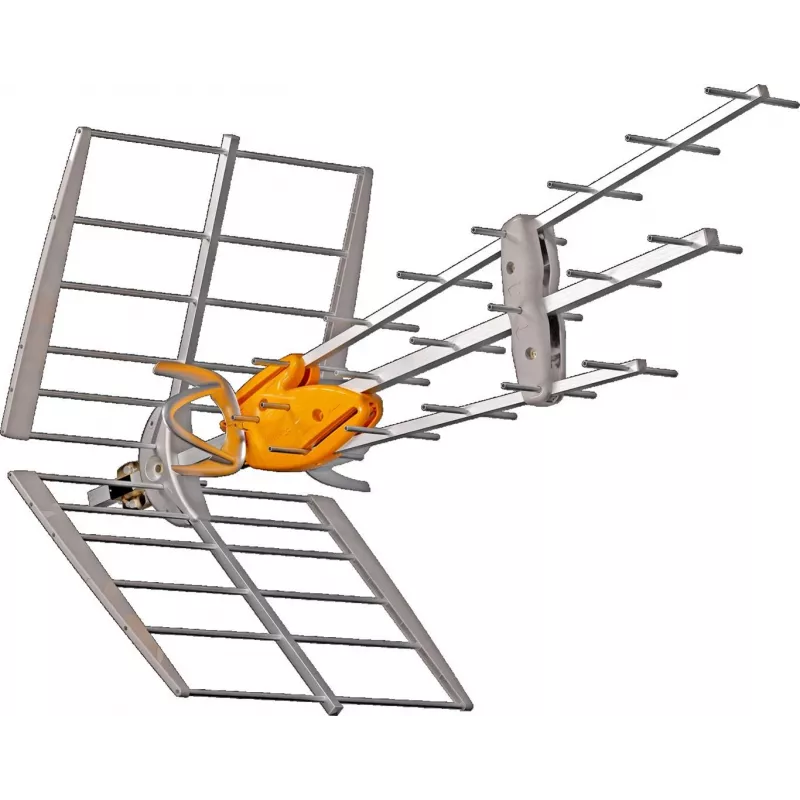

TELEVES DAT BOSS antena UHF con filtro LTE700, 470-694 MHz, 17 dBi, pack de 6

With an auto-adjustable gain up to 45 dBi and a noise figure of just 1.2 dB, the TELEVES DAT BOSS UHF antenna delivers exceptional signal clarity for digital terrestrial television. This bulk pack includes six antennas, each engineered with BOSS Tech (Balanced Output Signal System) to maintain consistent output levels even in challenging reception areas.

Overview

Designed for outdoor use, the DAT BOSS UHF is a directional Yagi antenna covering the UHF band from 470 to 694 MHz (channels 21–48). It features integrated LTE700 filtering with rejection greater than 30 dB at 700 MHz, protecting your TV signal from interference caused by mobile networks. The antenna is 5G-ready, ensuring long-term compatibility as spectrum allocation evolves.

What stands out

• BOSS Tech automatically adjusts gain to prevent signal overload or under-amplification, ensuring stable reception.
• High gain of 17 dBi (BOSS OFF) and up to 45 dBi (BOSS ON) for weak signal areas.
• Low noise figure of 1.2 dB (BOSS ON) preserves signal quality.
• LTE700 filtering blocks interference from 4G/5G mobile signals above 694 MHz.
• Robust construction with aluminum and ABS plastic withstands wind loads up to 120 N at 130 km/h.
• Supports both horizontal and vertical polarization for flexible installation.

Technical details

• Frequency range: 470–694 MHz (UHF, channels 21–48)
• Number of elements: 28
• Connector: F-type
• Power supply (BOSS ON): 12–24 VDC via coaxial cable
• Consumption (BOSS ON): 40 mA
• Wind load: 120 N at 130 km/h
• Material: Aluminum, ABS plastic
• Application: Digital Terrestrial Television (DTT)
• Included: 6 antennas per bulk pack

Our verdict

The TELEVES DAT BOSS UHF is a professional-grade solution for installers and demanding users. Its BOSS technology and LTE filtering make it ideal for areas with variable signal strength or mobile interference. The bulk pack of six offers excellent value for multi-point installations.
