Televes K20-12 cabecera compacta 12 transpondedores DVB-S2 a QAM

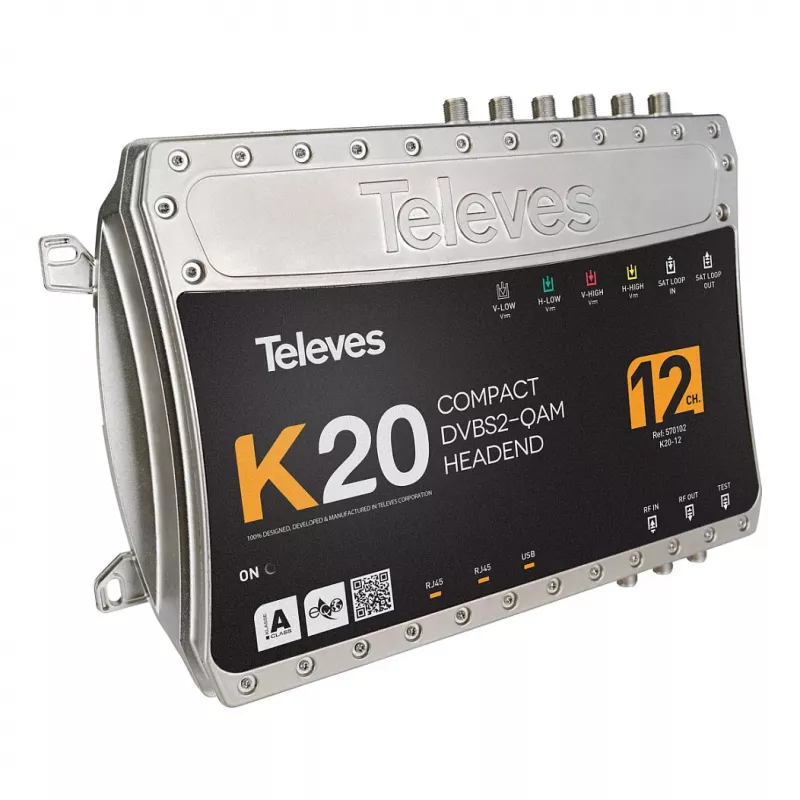

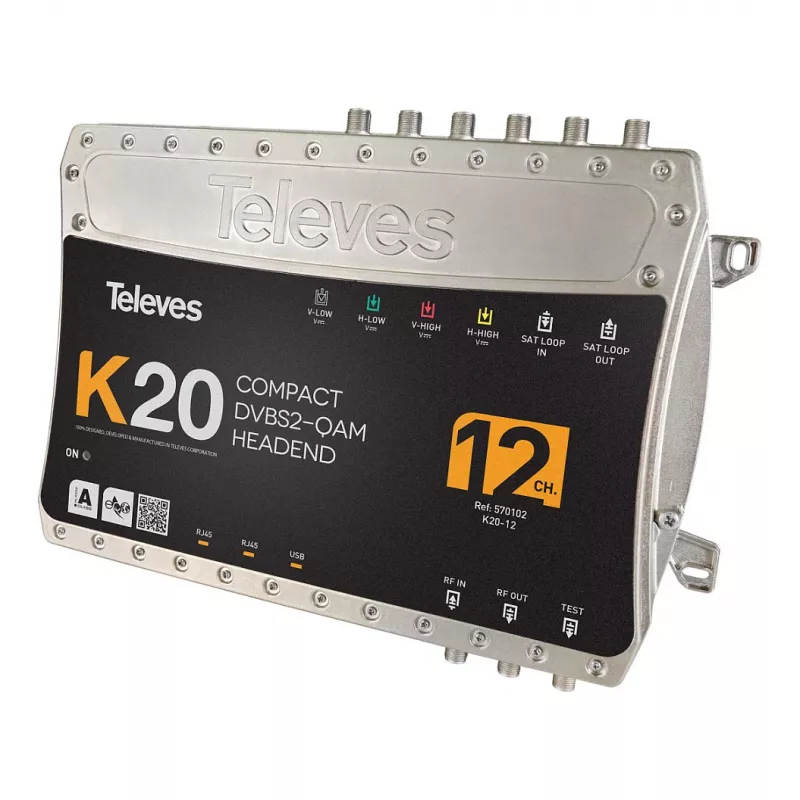

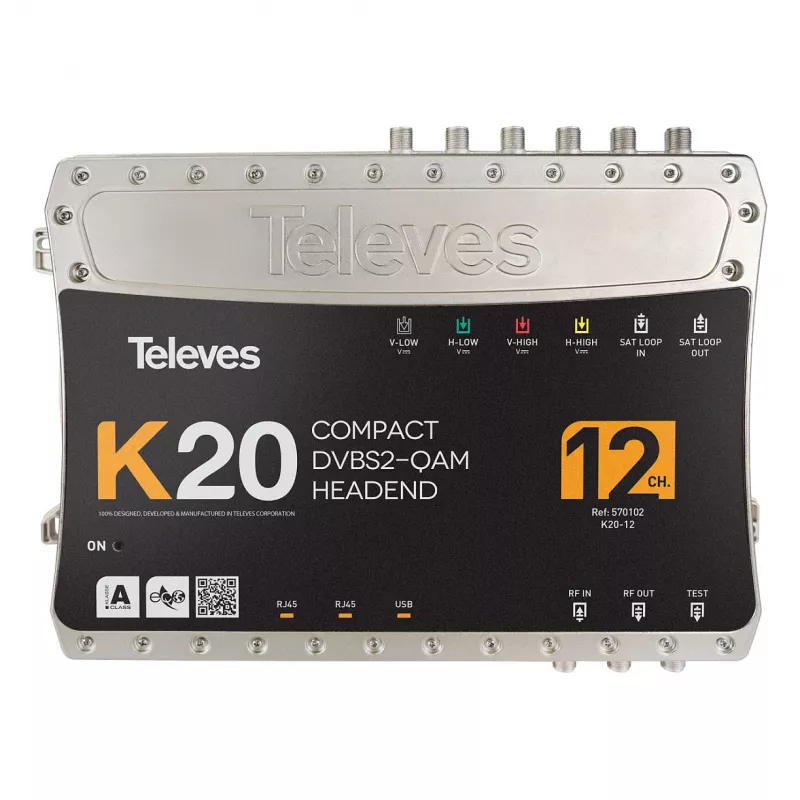

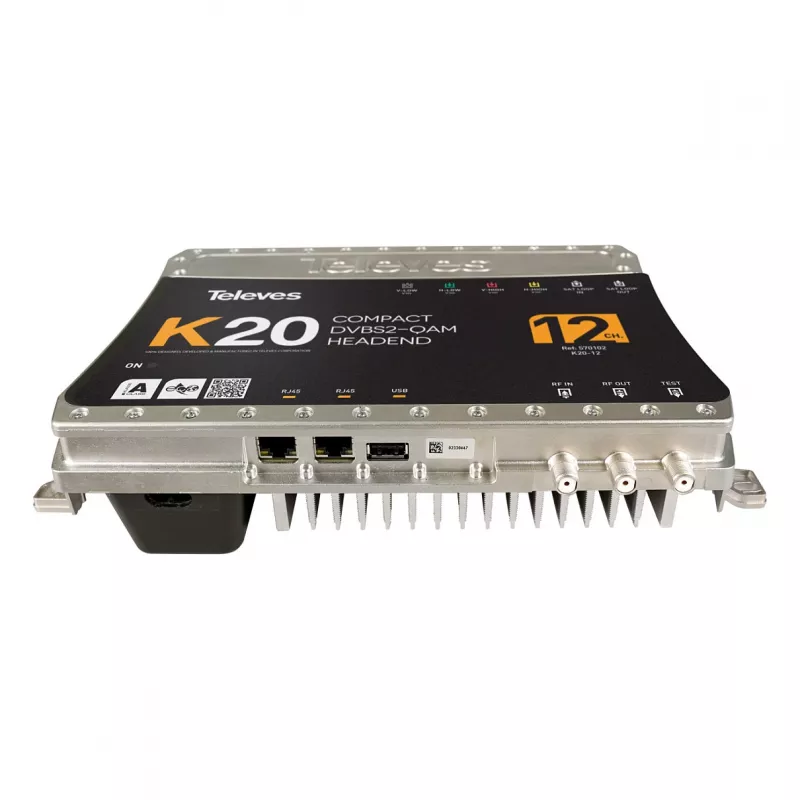

Distributing satellite TV over a coaxial cable network usually requires a rack full of receivers and modulators, consuming space, power, and budget. The Televes K20-12 Compact Headend solves this by integrating 12 DVB-S2 satellite tuners and 12 QAM modulators into a single 1U-high unit. It receives up to 12 satellite transponders, processes them, and re-modulates them into a DVB-C (QAM) signal for distribution over existing coaxial infrastructure. This professional headend is ideal for hotels, hospitals, campuses, and multi-dwelling units that need centralized satellite TV distribution without a separate receiver for every television.

Who is it for

System integrators, installers, and property managers who need to distribute satellite channels over an existing cable TV infrastructure will find the K20-12 indispensable. It is perfect for hospitality environments, apartment buildings, office complexes, and any facility requiring centralized TV distribution. The K20-12 replaces multiple consumer satellite receivers and simplifies the distribution of both pay-TV and free-to-air channels.

Main features

• 12 DVB-S/S2 satellite tuners with input frequency range 950-2150 MHz
• 12 QAM modulators (DVB-C) with output frequency range 47-862 MHz
• Supports 16, 32, 64, 128, and 256 QAM modulation
• 12 Common Interface (CI) slots for conditional access modules (CAMs) to decrypt pay-TV channels
• PID filtering and remapping, plus service multiplexing for efficient bandwidth use
• Management via Web UI, SNMP, and USB for easy configuration and monitoring
• LNB power supply with 13V/18V, 22kHz, and DiSEqC 1.0

Specifications

• Input Signal Type: DVB-S/S2
• Number of DVB-S/S2 Tuners: 12
• Input Frequency Range (Satellite IF): 950 - 2150 MHz
• Output Signal Type: DVB-C (QAM)
• Number of QAM Modulators: 12
• Output Frequency Range (QAM): 47 - 862 MHz
• Output Modulation: 16, 32, 64, 128, 256 QAM
• Output Symbol Rate: 1 to 7 MSymbols/s
• Output Level: 90 dBµV (adjustable)
• MER (Modulation Error Ratio): >40 dB
• Common Interface (CI) Slots: 12
• LNB Power Supply: 13V/18V, 22kHz, DiSEqC 1.0
• Management Interface: Web UI, SNMP, USB
• PID Filtering & Remapping: Yes
• Service Multiplexing: Yes
• Power Supply: 100-240 VAC, 50/60 Hz
• Power Consumption: < 60 W
• Operating Temperature: 0 to +45 °C

Tips

For optimal performance, ensure proper ventilation and use high-quality coaxial cables. The K20-12 can be configured remotely via its web interface, saving time during installation and maintenance. Consider using CAMs compatible with your pay-TV provider to maximize channel availability.
