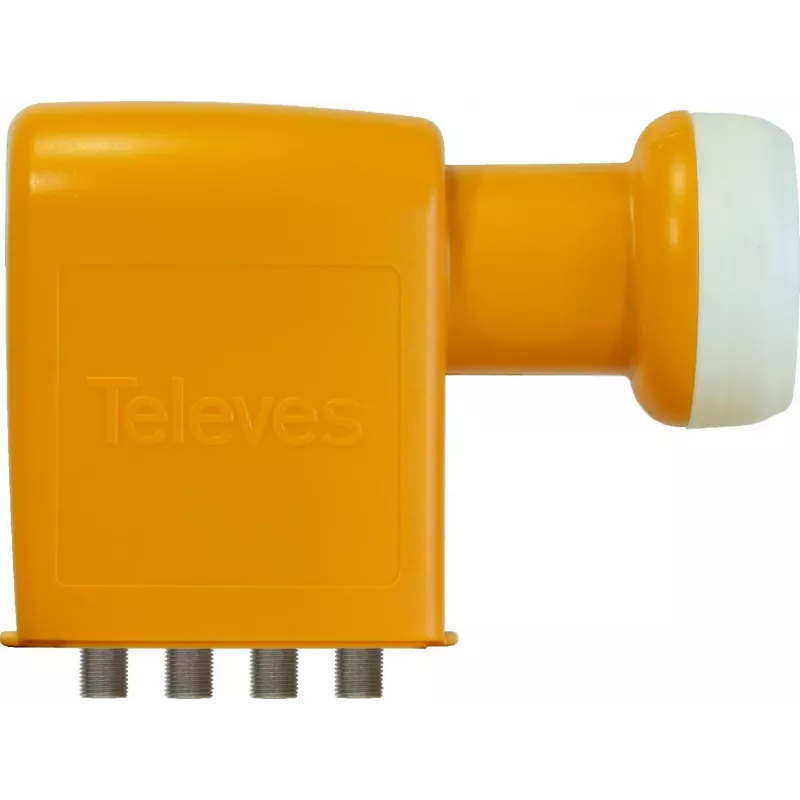

TELEVES LNB Universal Quad 761001

The TELEVES Quad Universal LNB (ref. 761001) is a high-performance low-noise block downconverter designed for satellite reception. With four independent outputs, it allows simultaneous connection of up to four satellite receivers or DVB-S/S2 devices. Featuring an ultra-low noise figure of 0.1 dB and a high conversion gain of 55 dB, it ensures excellent signal quality even in challenging installations. The LNB supports both low and high band operation with local oscillator frequencies of 9.75 GHz and 10.6 GHz respectively, covering the full 10.7-12.75 GHz input range. Its robust design withstands temperatures from -30°C to +60°C, making it suitable for outdoor use.

Advantages

Ultra-low noise figure (0.1 dB) for superior signal reception; four independent outputs for multi-room or multi-receiver setups; wide input frequency range covering all Ku-band satellites; high conversion gain ensures strong signal strength; reliable performance in extreme weather conditions.

Suitable for

• Satellite TV installations requiring multiple receivers
• DVB-S and DVB-S2 digital satellite systems
• Professional and residential satellite antenna setups
• Replacement or upgrade of existing LNBs

Key specifications

• LNB Type: Universal Quad
• Number of Outputs: 4 (independent)
• Input Frequency Range: 10.7 - 12.75 GHz
• Output Frequency Range: 950 - 2150 MHz
• Low Band LO Frequency: 9.75 GHz
• High Band LO Frequency: 10.6 GHz
• Noise Figure: 0.1 dB (typical)
• Conversion Gain: 55 dB (min)
• Output Connector: F-type
• Feedhorn Diameter: 40 mm
• Operating Temperature: -30°C to +60°C

Recommendations

For optimal performance, use high-quality coaxial cables and weatherproof connectors. Ensure the LNB is properly aligned with the satellite dish and securely mounted to prevent movement. This LNB is compatible with all standard satellite receivers supporting Universal LNBs.
