Televes SK6Fplus cable coaxial 100m blanco triple apantallado 75 Ohm

The Televes SK6Fplus stands out as a triple-shielded coaxial cable engineered for reliable signal integrity across terrestrial, satellite, and cable TV installations. Its 100-meter spool format provides ample length for professional runs, while the white PVC jacket blends discreetly in residential environments. With a solid copper inner conductor and foamed polyethylene dielectric, this cable maintains consistent 75 Ohm impedance and low attenuation, making it a dependable backbone for high-frequency distribution systems.

Highlights

• Triple shielding with >110 dB effectiveness (Class A+) for superior interference rejection
• Solid copper inner conductor (1.02 mm) ensures excellent conductivity and durability
• Low attenuation: 9.0 dB/100m @ 200 MHz, 18.5 dB/100m @ 862 MHz, 30.0 dB/100m @ 2150 MHz
• Wide operating temperature range: -25°C to +70°C
• Supplied on a convenient 100 m spool for easy dispensing

In daily use

Installers appreciate the cable's flexibility and manageable bending radius of 34 mm, which simplifies routing through tight spaces. The white jacket is easy to label and identify in multi-cable setups. Whether distributing DVB-T, DVB-S, or DVB-C signals, the SK6Fplus delivers stable performance with a return loss greater than 20 dB across 5-2400 MHz.

Full specifications

• Cable type: Coaxial
• Length: 100 m
• Product colour: White
• Shielding type: Triple shielded (3-fold)
• Shielding effectiveness: >110 dB (Class A+)
• Impedance: 75 Ohm
• Inner conductor material: Copper (Cu)

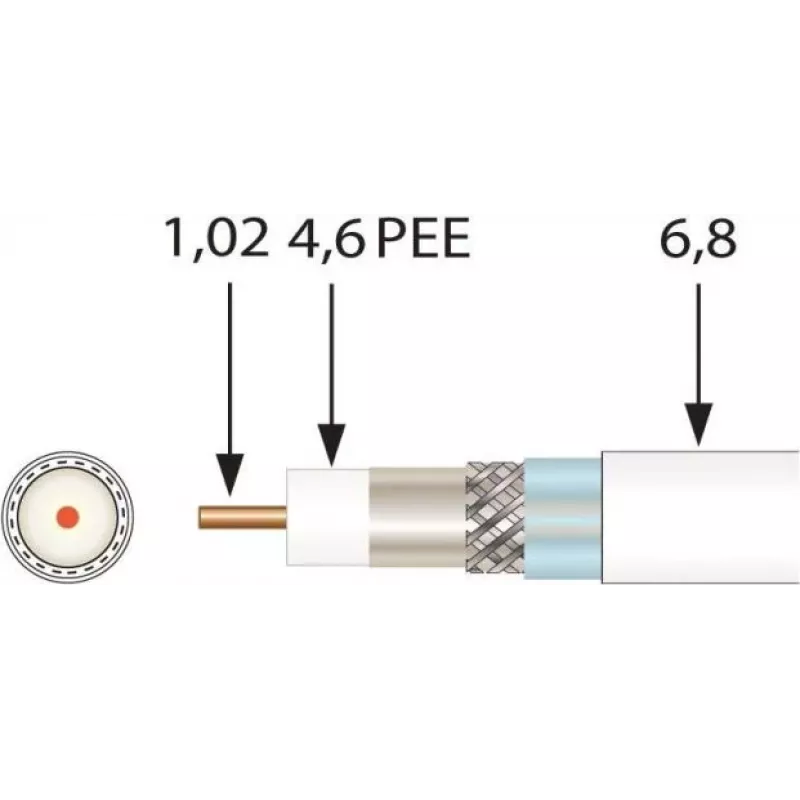

• Inner conductor diameter: 1.02 mm
• Outer diameter (jacket): 6.8 mm
• Dielectric material: Foamed polyethylene (FPE)
• Jacket material: PVC
• Attenuation @ 200 MHz: 9.0 dB/100m
• Attenuation @ 862 MHz: 18.5 dB/100m
• Attenuation @ 2150 MHz: 30.0 dB/100m
• Return loss: >20 dB (5-2400 MHz)
• Minimum bending radius (fixed): 34 mm
• Operating temperature: -25°C to +70°C
• Packaging: Spool
• Application: Terrestrial TV (DVB-T), Satellite TV (DVB-S), Cable TV (DVB-C)

Final note

A professional-grade coaxial cable that balances performance, shielding, and ease of installation for demanding TV distribution projects.
