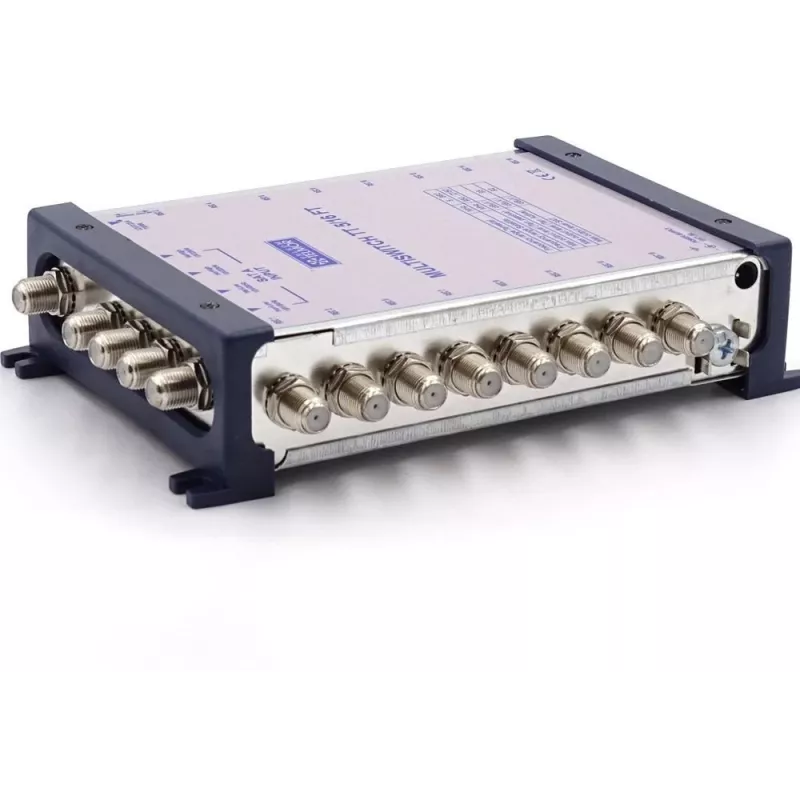

TELMOR Multiswitch TT 5/16 Terminal 4 entradas SAT 16 salidas

The TELMOR Multiswitch TT 5/16 is a high-performance terminal multiswitch designed for distributing satellite and terrestrial signals in modern multi-dwelling units. With 4 SAT inputs (HL, HH, VL, VH) and 1 terrestrial input, it provides 16 subscriber outputs, making it ideal for medium to large installations. The unit supports DiSEqC 2.0/1.0 control and operates over the full SAT IF frequency range (950-2150 MHz) and TER frequency range (47-862 MHz). Its compact terminal design allows for easy integration into existing distribution networks.

Advantages

• Supports up to 16 subscribers with individual signal distribution
• Compatible with DiSEqC 2.0/1.0 for advanced satellite control
• High isolation between inputs and outputs ensures minimal interference
• Can be powered via receiver or optional external PSU for flexibility
• Robust F-type connectors for reliable signal transmission

Suitable for

• Apartment buildings and multi-dwelling units requiring satellite and terrestrial TV distribution
• Installations where a terminal multiswitch is needed for easy integration
• Systems using DiSEqC-controlled LNBs and antennas

Key specifications

• Number of SAT Inputs: 4 (HL, HH, VL, VH)
• Number of TER Inputs: 1
• Number of Subscriber Outputs: 16
• SAT IF Frequency Range: 950 - 2150 MHz
• TER Frequency Range: 47 - 862 MHz
• SAT IF Gain (Subscriber): 0 dB (±2 dB)
• TER Gain (Subscriber): -2 dB (±2 dB)
• SAT IF Input Isolation: >30 dB
• TER Input Isolation: >30 dB
• Subscriber Output Isolation: >25 dB
• Max Output Level (SAT): 95 dBµV
• Max Output Level (TER): 85 dBµV
• Control Protocol: DiSEqC 2.0 / 1.0
• Switching Voltages: 13V / 18V
• Switching Tones: 0 kHz / 22 kHz
• Power Supply: Receiver Powered / External PSU (optional)
• Current Consumption (from receivers): < 100 mA
• Connector Type: F-type
• Multiswitch Type: Terminal
• Operating Temperature: -20°C to +50°C

Recommendations

For optimal performance, use high-quality F-type connectors and ensure proper grounding. The multiswitch can be powered by any connected receiver; if more than 16 receivers are used, an external power supply is recommended. Compatible with all standard DiSEqC 2.0/1.0 equipment.
