Temporizador analógico REV 0025020109 WS compacto blanco — interruptor horario mecánico para control diario

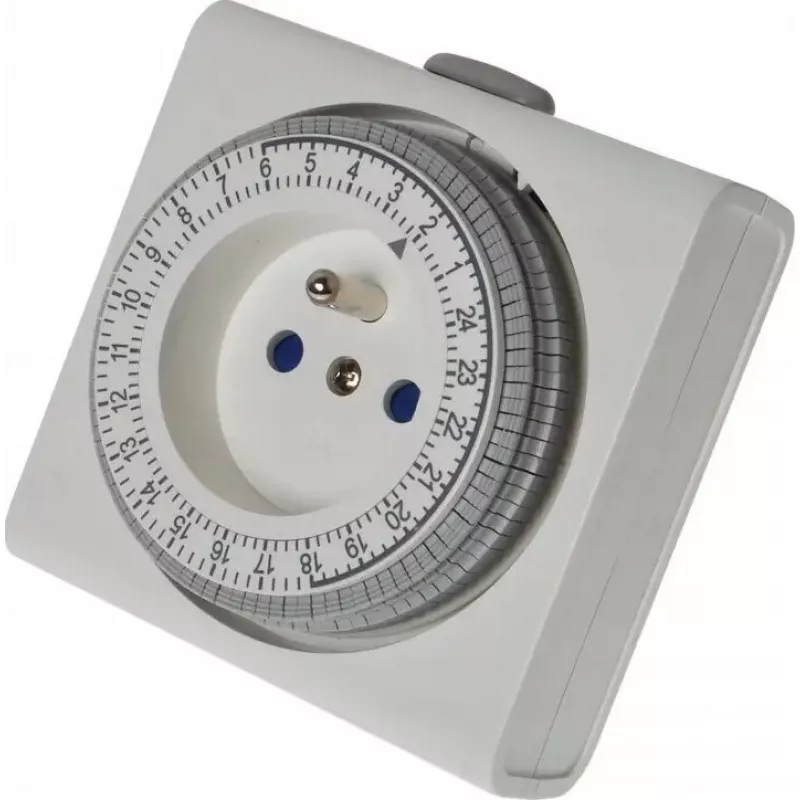

Compact analog timer REV 0025020109 WS compact white is a mechanical time switch designed for daily on/off control of electrical circuits. The device provides straightforward scheduling with a 24-hour dial and manual override, enabling automatic operation of lights, heaters, pumps and other appliances that require regular timed cycles. Its compact white housing suits residential and small commercial installations where simple, reliable time control is needed.

Advantages

The mechanical construction ensures simple operation without the need for programming interfaces or batteries. A clear 24-hour dial and adjustable segments allow easy setting of multiple on/off periods per day. The compact form factor minimises space in distribution boards or mounting locations, while the manual override lets users temporarily switch the load without altering the programmed schedule. The device is appropriate for environments where a robust, low-maintenance time switch is preferred.

Suitable for

• Periodic lighting control for indoor and outdoor fixtures
• Switching small electric heaters or convectors on a daily schedule
• Controlling circulation pumps or garden water pumps
• Automating signage, ventilation fans, or other low-power loads

Key specifications

• Type: mechanical 24-hour analog timer
• Control: daily repeat cycles with manual override
• Mounting: compact housing for DIN-rail or surface mounting (confirm mounting type before installation)
• Contact operation: single-pole switching suitable for typical household and small commercial circuits
• Setting method: dial with selectable on/off segments for multiple switching periods
• Finish: white plastic housing

How to use

Install the timer according to local electrical codes and the manufacturer's installation instructions, ensuring power is disconnected before wiring. Set the current time on the 24-hour dial, then push or slide the applicable segments to define on and off intervals for the day. After wiring and setting, switch the device to automatic mode to enable scheduled control; use the manual override when temporary intervention is required. Verify correct operation by observing switching at the set times and adjust segments as needed for desired schedules.

Recommendations

For safe and reliable operation, use the timer within its rated load limits and in dry, indoor environments unless the installation instructions specify otherwise. Do not exceed the switching capacity of the connected equipment, and have a qualified electrician perform installation and any necessary compatibility checks with existing electrical systems.
