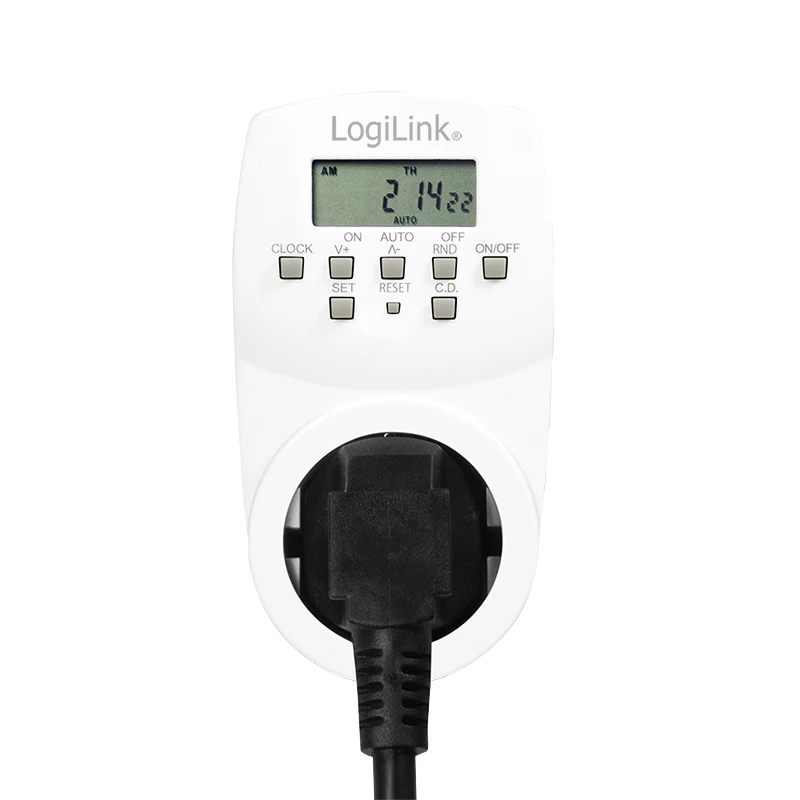

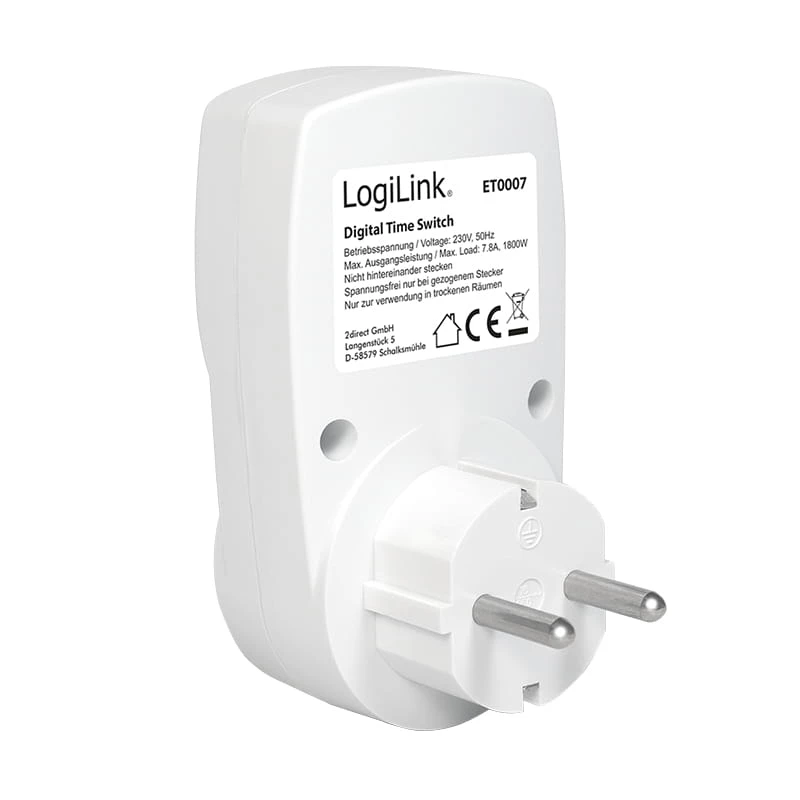

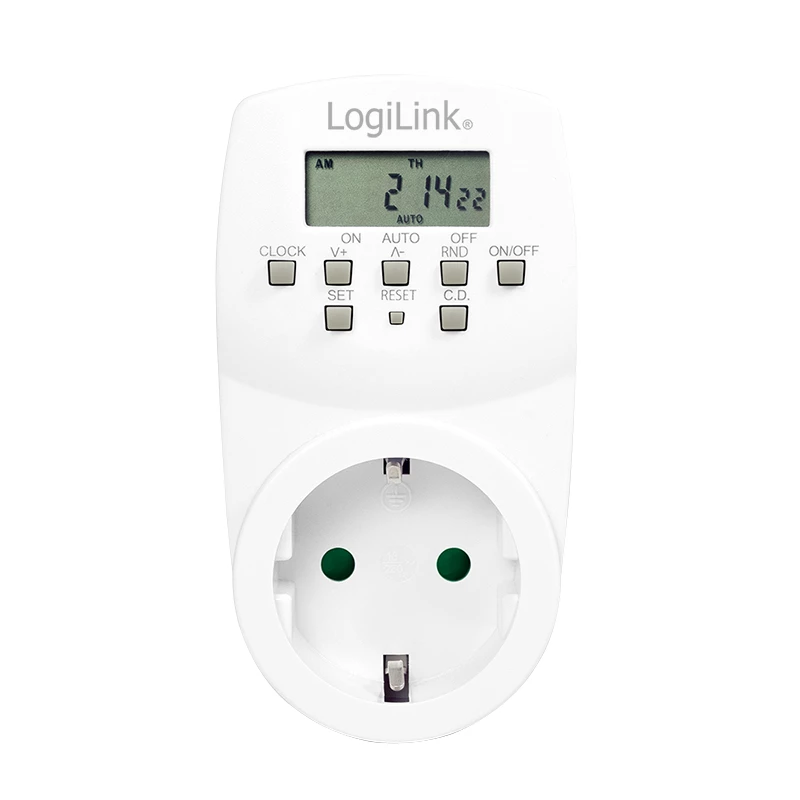

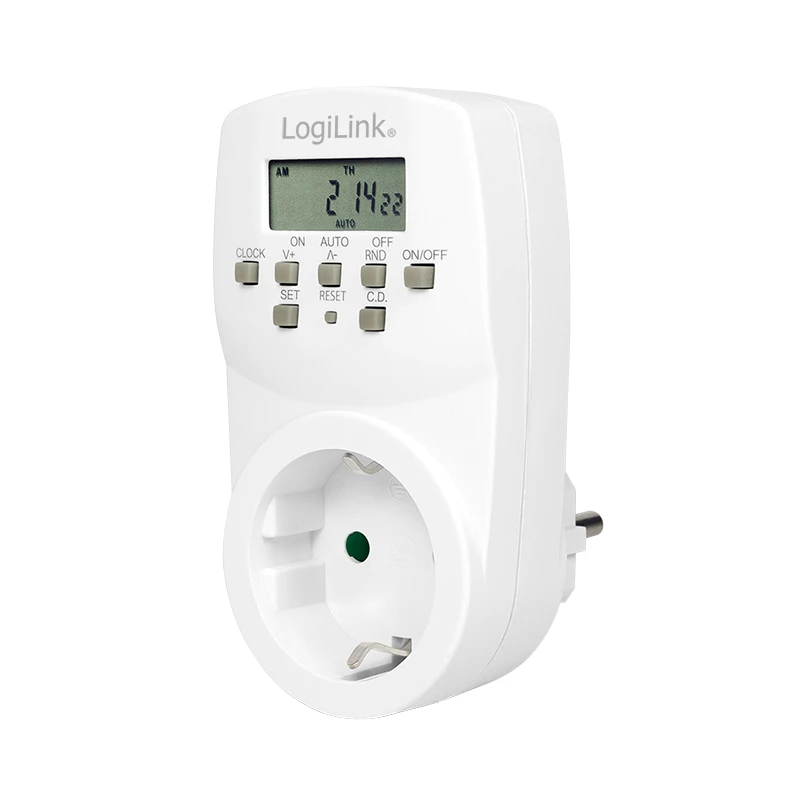

Temporizador diario/semanal LogiLink ET0007

The LogiLink Daily/Weekly timer ET0007 is a digital time switch for automating 230 V AC appliances. The compact white unit (75 × 57 × 105 mm) supports up to 1800 W and features an LCD display that lets you set precise on/off schedules. It is intended for use with household devices to reduce unnecessary power consumption and simplify routine switching tasks.

Advantages

The LogiLink ET0007 offers programmable daily and weekly scheduling with up to 20 on/off events per day, a clear LCD for easy programming, and a compact design that fits into most installations. It is compatible with common household mains-powered devices and helps manage energy use without constant manual intervention.

Suitable for

• Timers for lamps and lighting
• Control of pumps and fans
• Automatic switching of heaters and small appliances up to 1800 W
• Scheduled operation of holiday lighting and decorative equipment

Key specifications

• Brand: LOGILINK
• Model: ET0007
• Supply voltage: 230 V AC
• Maximum load: 1800 W
• Programmable events: up to 20 on/off actions per day
• Dimensions (W × D × H): 75 × 57 × 105 mm
• Colour: White
• Weight: 0.105 kg

How to use

Plug the timer into a mains outlet and connect the appliance to the timer socket. Use the LCD and the device buttons to set the current time and program desired on/off events—up to 20 per day. Choose daily or weekly modes as required and confirm each entry following the on-screen prompts. Once programmed, the timer will switch the connected appliance automatically according to the schedule.

Recommendations

Ensure connected appliances do not exceed the rated maximum load of 1800 W. Install the timer in a dry, well-ventilated location and avoid covering the unit to prevent overheating. For safety, disconnect power before cleaning or if the device shows signs of damage.
