Temporizador diario/semanal LogiLink ET0009

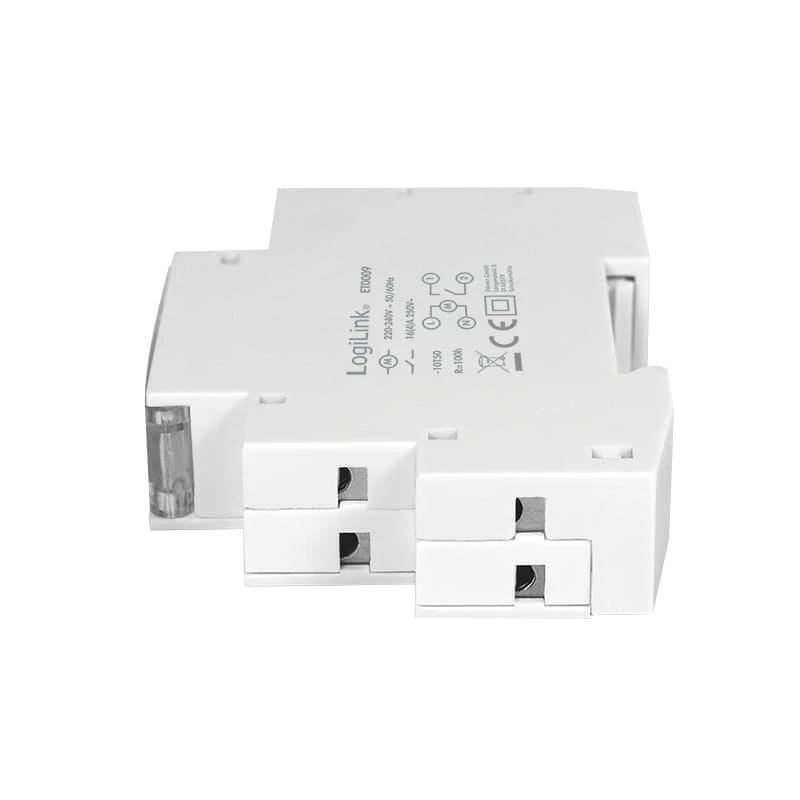

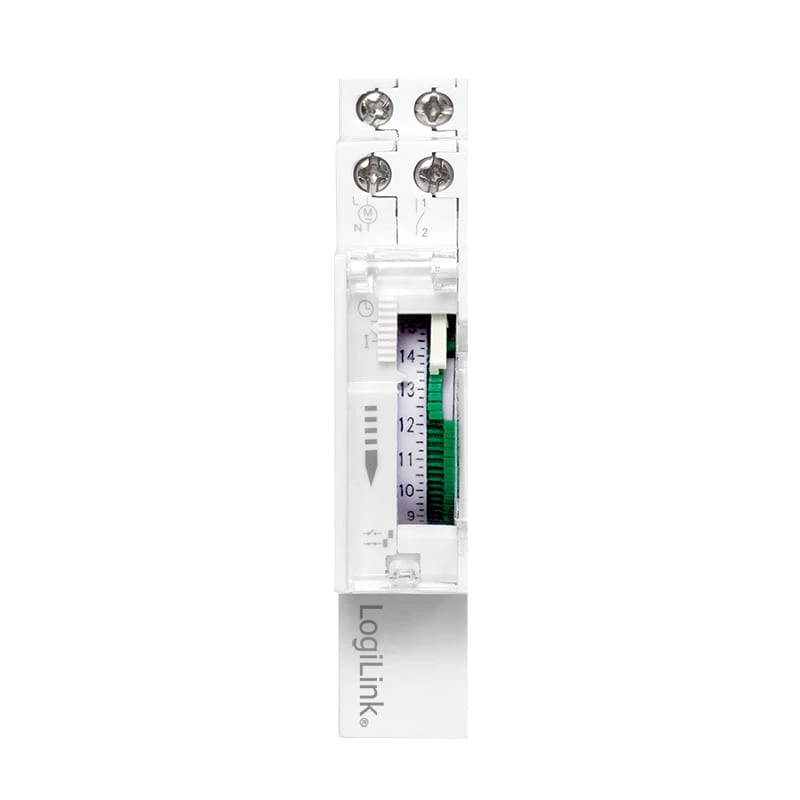

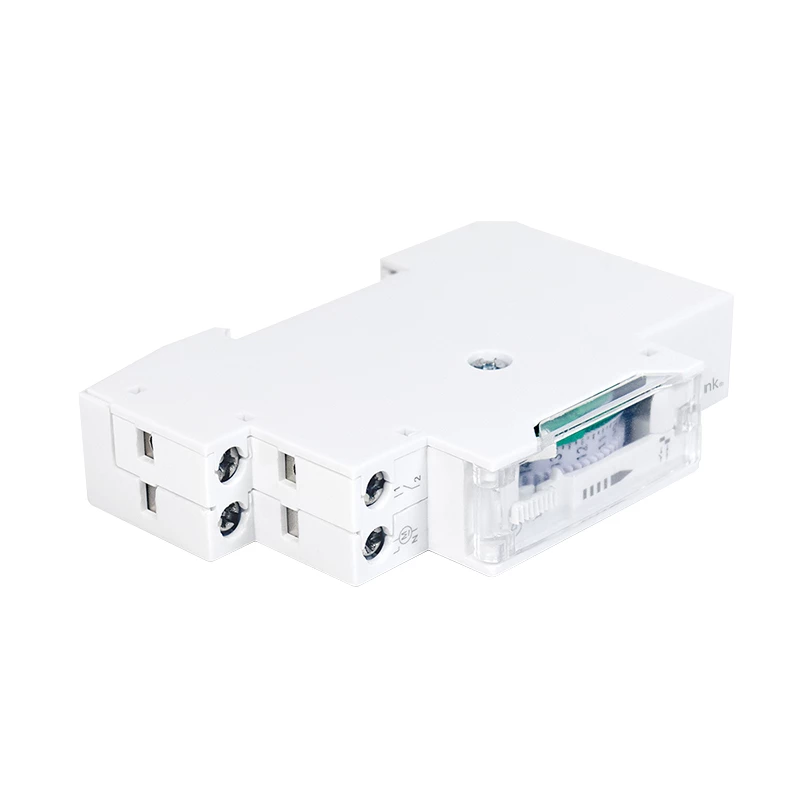

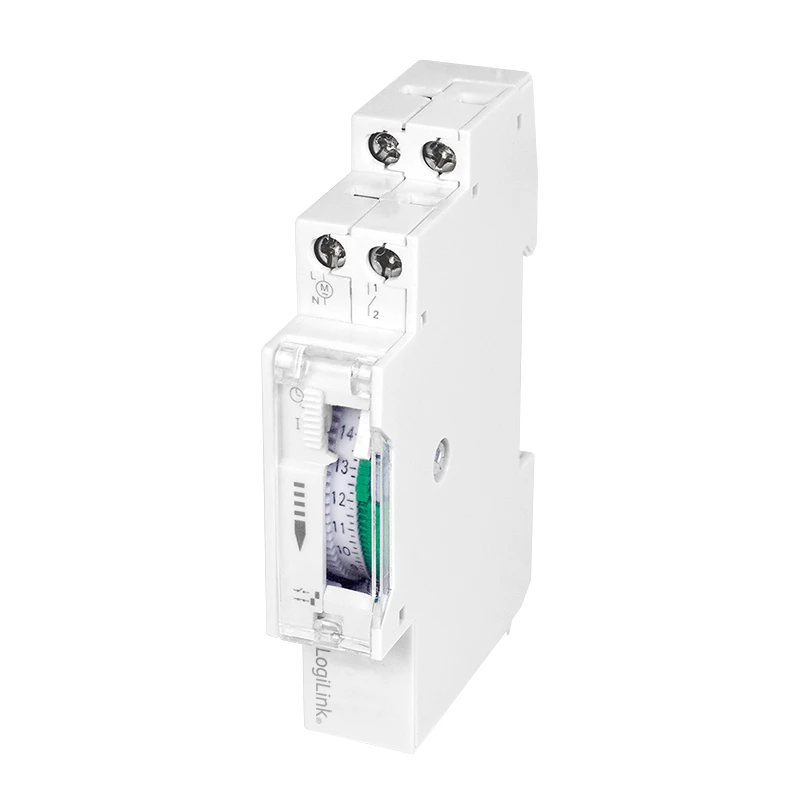

The LogiLink Daily/Weekly timer ET0009 is a DIN-rail mechanical time switch designed for controlling electrical installations such as lighting, irrigation systems, neon signs, street lights and water heaters. It accepts 220–240 V AC supply and provides up to 48 ON/OFF programs for daily and weekly scheduling. The compact unit with IP20 rating is intended for indoor mounting on standard DIN rails and consumes approximately 0.5 W in standby.

Advantages

The LogiLink ET0009 offers reliable mechanical timing without complex configuration, a high number of programmable switching events (48), low standby power consumption (≈0.5 W) and compact DIN-rail form factor for easy installation in distribution cabinets. Its 220–240 V AC compatibility makes it suitable for typical household and light industrial electrical systems.

Suitable for

• Home and corridor lighting control
• Garden and lawn irrigation scheduling
• Switching neon or decorative lighting
• Street or outdoor lighting (indoor-mounted control unit)
• Water heater or pump timed control

Key specifications

• Model: LogiLink ET0009
• Supply voltage: 220–240 V AC
• Programming: daily/weekly, up to 48 ON/OFF programs
• Power consumption (standby): approx. 0.5 W
• Protection class: IP20 (indoor use)
• Mounting: DIN-rail
• Dimensions (W×D×H): 67 mm × 95 mm × 18 mm
• Brand: LOGILINK, MPN: ET0009, EAN: 4052792054545

How to use

Mount the ET0009 on a standard DIN rail inside an appropriate distribution box. Connect the device to a 220–240 V AC supply and wire the load according to local electrical codes. Set the required ON and OFF times using the mechanical programming pins for daily or weekly schedules, up to 48 switching events. Ensure the device is placed in a dry indoor environment consistent with its IP20 rating.

Recommendations

Use the LogiLink ET0009 inside a lockable distribution cabinet to protect it from dust and unauthorized access; verify wiring and local regulations before installation and, if necessary, consult a qualified electrician for safe connection and setup.
