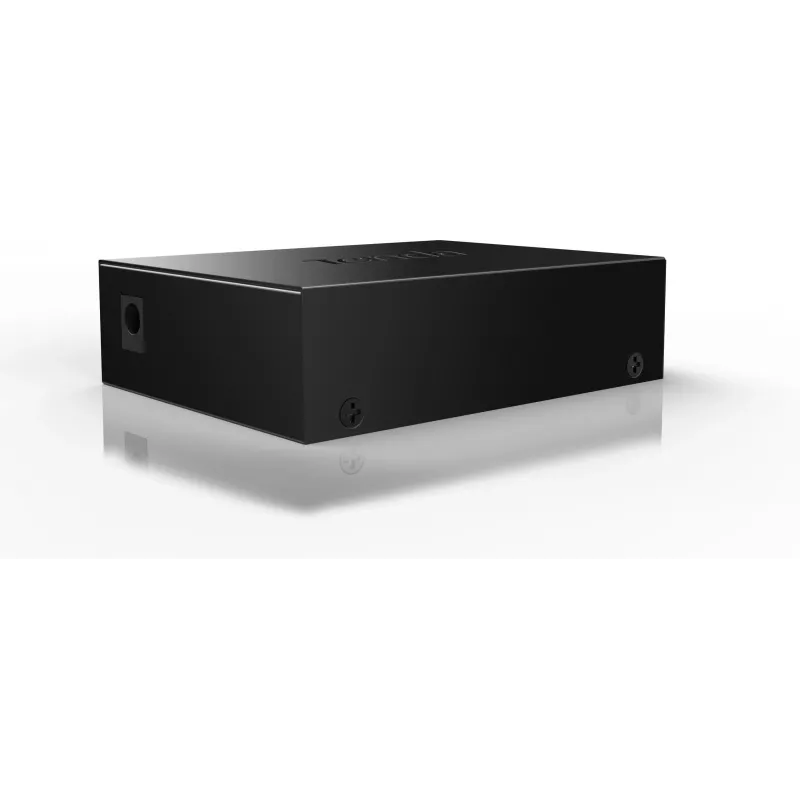

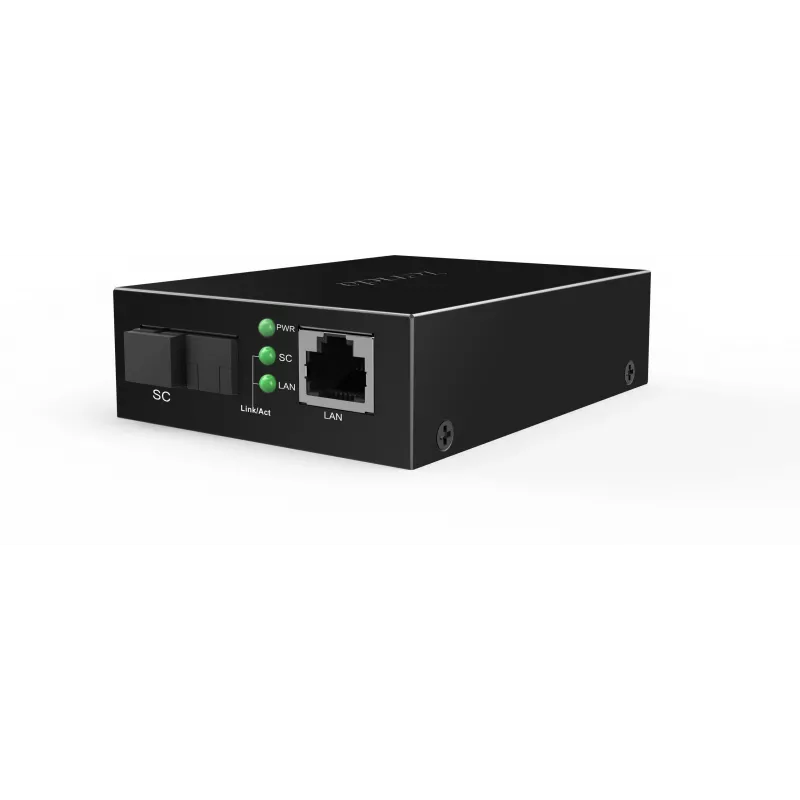

Tenda TFC100B Convertidor de Medios Monomodo SC 20km

The Tenda TFC100B is a high-performance media converter designed to extend network distances by converting 10/100Base-TX copper signals to 100Base-FX fiber signals. Ideal for connecting devices over long distances, it supports single-mode fiber with SC connectors and a maximum distance of 20 km at 1310 nm wavelength. This converter ensures reliable data transmission in various networking environments, from small offices to industrial setups.

Advantages

With plug-and-play installation, the TFC100B requires no configuration, making it easy to deploy. Its compact standalone design saves space, while the external power adapter ensures stable operation. The converter supports full/half-duplex modes and jumbo frames up to 1536 bytes, enhancing network efficiency.

Suitable for

• Extending Ethernet networks beyond the 100-meter limit of copper cables
• Connecting remote devices in campus, enterprise, or telecom networks
• Integrating fiber optic backbone with existing copper infrastructure

Key specifications

• Ethernet Standard: IEEE 802.3, 802.3u, 802.3x
• Port Speed: 10/100 Mbps (Fast Ethernet)
• Fiber Port: 1x SC, Single-Mode, 1310 nm, up to 20 km
• RJ45 Port: 1x 10/100Base-TX
• Power Supply: External DC 5V/1A adapter
• LED Indicators: PWR, FX Link/Act, TX Link/Act, FX FDX/COL, TX FDX/COL
• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Storage Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Humidity: 10%~90% non-condensing
• Certifications: CE, FCC, RoHS

Recommendations

For optimal performance, use with single-mode fiber patch cables (SC connectors) and ensure the power adapter is connected to a stable power source. The converter is compatible with Cat.5, Cat.5e, and Cat.6 UTP/STP cables.
